Ferrari 296 GTS — [VEHICLE TRIM] - E.49 - INNER TRIM (ABOVE BELTLINE) (diagram 0159)

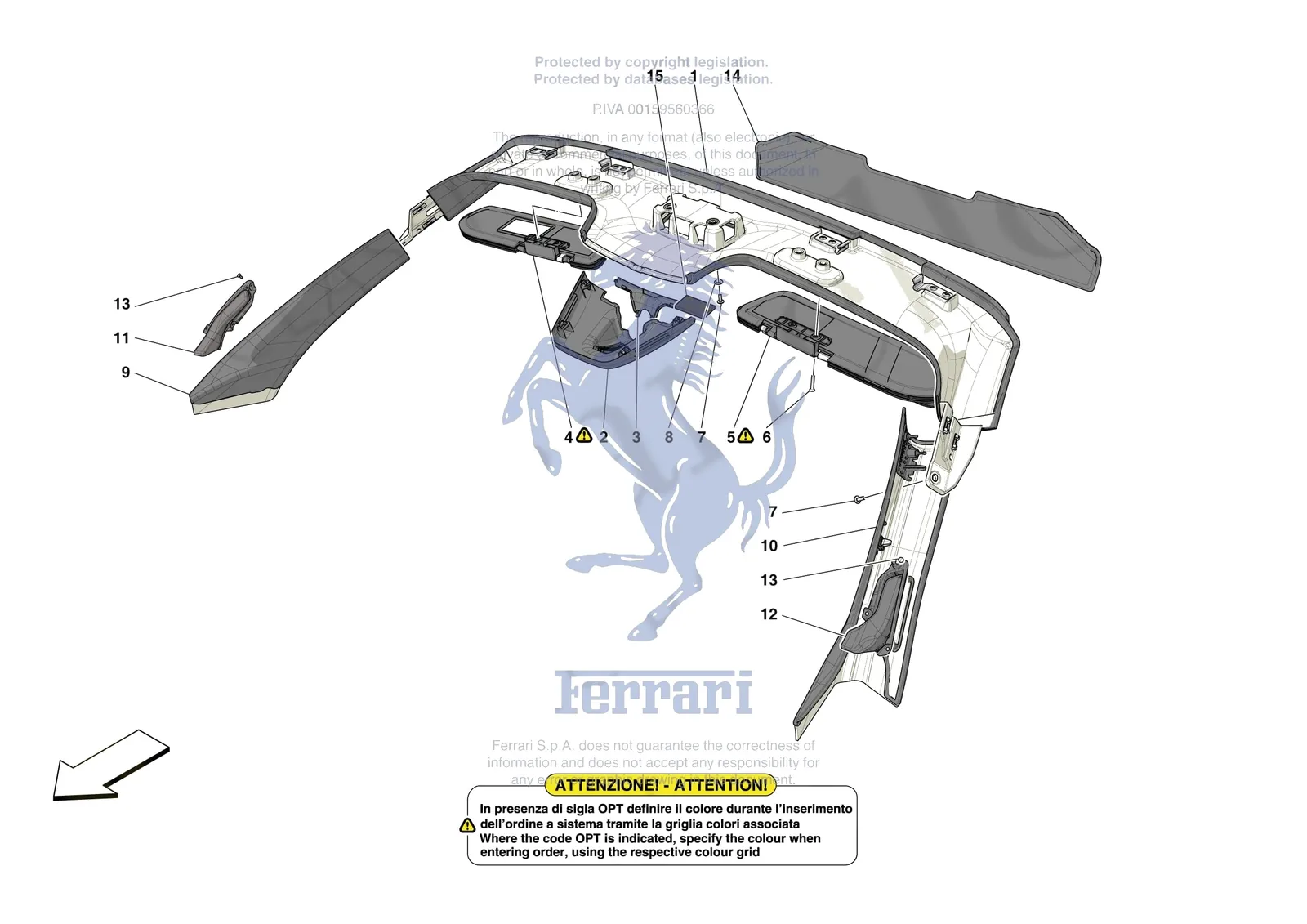

Exploded view of the [vehicle trim] - e.49 - inner trim (above beltline) on the Ferrari 296 GTS, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.49 - INNER TRIM (ABOVE BELTLINE) exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0159.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15642501 | Ferrari Screw - 15642501 | Superseded | Order 15902601 instead | |
| 1 | 973227 | Ferrari Upper Windscreen Trim - 973227 | $2,130.95 | Special order, ships in 7-14 days |
| 1 | 973233 | Ferrari Upper Windscreen Trim - 973233 | $2,248.03 | Special order, ships in 7-14 days |
| 2 | 807756 | Ferrari Compl. Mirror Cover - 807756 | $66.35 | Special order, ships in 7-14 days |
| 2 | 976748 | Ferrari Compl. Mirror Cover - 976748 | Superseded | Order 807756 instead |
| 3 | 807762 | Ferrari Mirror Cover Blanking Cap - 807762 | $12.99 | Special order, ships in 7-14 days |
| 3 | 976721 | Ferrari Mirror Cover Blanking Cap - 976721 | Superseded | Order 807762 instead |
| 4 | 770661 | Ferrari RH Sun Visor - 770661 | $2,248.03 | Special order, ships in 7-14 days |
| 4 | 772405 | Ferrari RH Sun Visor - 772405 | $2,248.03 | Special order, ships in 7-14 days |
| 4 | 938797 | Ferrari RH Sun Visor - 938797 | $2,248.03 | Special order, ships in 7-14 days |
| 4 | 963490 | Ferrari RH Sun Visor - 963490 | $2,154.37 | Special order, ships in 7-14 days |
| 4 | 964811 | Ferrari RH Sun Visor - 964811 | $2,248.03 | Special order, ships in 7-14 days |
| 5 | 770660 | Ferrari LH Sun Visor - 770660 | $2,248.03 | Special order, ships in 7-14 days |
| 5 | 938796 | Ferrari LH Sun Visor - 938796 | $2,248.03 | Special order, ships in 7-14 days |
| 5 | 964810 | Ferrari LH Sun Visor - 964810 | $2,271.45 | Special order, ships in 7-14 days |
| 6 | 13311677 | Ferrari Screw - 13311677 | $1.17 | Special order, ships in 7-14 days |
| 7 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 8 | 12644401 | Ferrari Washer - 12644401 | $0.08 | Available, ships in 3-6 days |
| 9 | 764033 | Ferrari COMPL. RH WINDSCREEN PILLAR - 764033 | Price on request | Contact us for price and availability |
| 9 | 846062 | Ferrari Compl. RH Windscreen Pillar - 846062 | $1,204.80 | Special order, ships in 7-14 days |
| 9 | 874443 | Ferrari Compl. RH Windscreen Pillar - 874443 | $958.91 | Special order, ships in 7-14 days |
| 9 | 874609 | Ferrari Compl. RH Windscreen Pillar - 874609 | $958.91 | Special order, ships in 7-14 days |
| 10 | 764031 | Ferrari COMPL. LH WINDSCREEN PILLAR - 764031 | Price on request | Contact us for price and availability |
| 10 | 846070 | Ferrari Compl. LH Windscreen Pillar - 846070 | $1,204.80 | Special order, ships in 7-14 days |
| 10 | 874419 | Ferrari Compl. LH Windscreen Pillar - 874419 | $958.91 | Special order, ships in 7-14 days |
| 10 | 874461 | Ferrari Compl. LH Windscreen Pillar - 874461 | $958.91 | Special order, ships in 7-14 days |
| 11 | 793281 | Ferrari Compl. RH Windscreen Pillar - 793281 | $125.37 | Special order, ships in 7-14 days |
| 11 | 976755 | Ferrari Compl. RH Windscreen Pillar - 976755 | $95.87 | Special order, ships in 7-14 days |
| 12 | 793285 | Ferrari Compl. LH Windscreen Pillar - 793285 | $125.37 | Special order, ships in 7-14 days |
| 12 | 976752 | Ferrari Compl. LH Windscreen Pillar - 976752 | $95.87 | Special order, ships in 7-14 days |
| 13 | 15902601 | Ferrari Screw - 15902601 | $0.12 | Special order, ships in 7-14 days |
| 14 | 846064 | Ferrari Rear Screen Waterproof Membr - 846064 | $90.95 | Special order, ships in 7-14 days |
| 15 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
