Ferrari 296 GTS — [VEHICLE TRIM] - E.50 - OTHER INTERIOR TRIM ELEMENTS (diagram 0160)

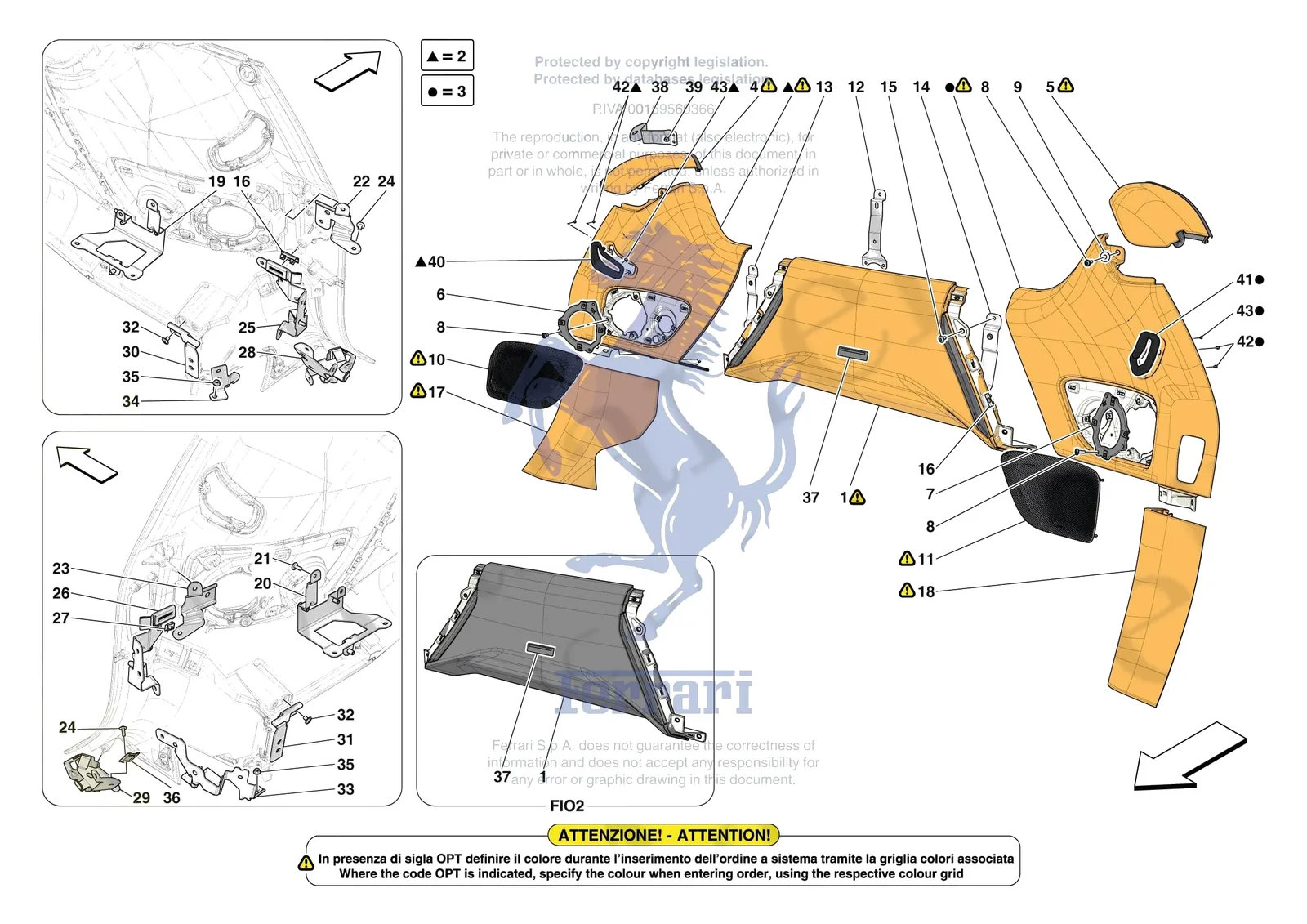

Exploded view of the [vehicle trim] - e.50 - other interior trim elements on the Ferrari 296 GTS, with 76 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [VEHICLE TRIM] - E.50 - OTHER INTERIOR TRIM ELEMENTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
14368371Ferrari Screw Clip - 14368371SupersededOrder 14188971 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
1818570Ferrari Compl. Lower Rear Screen Tri - 818570$4,493.74Special order, ships in 7-14 days
1818572Ferrari Compl. Lower Rear Screen Tri - 818572$4,374.33Special order, ships in 7-14 days
1913990Ferrari Compl. Lower Rear Screen Tri - 913990$4,559.31Special order, ships in 7-14 days
1944454Ferrari Compl. Lower Rear Screen Tri - 944454$4,191.68Special order, ships in 7-14 days
1973238Ferrari Compl. Lower Rear Screen Tri - 973238$1,475.26Special order, ships in 7-14 days
170007841Ferrari COMPL. LOWER REAR SCREEN TRIM - 70007841Price on requestContact us for price and availability
170007842Ferrari COMPL. LOWER REAR SCREEN TRIM - 70007842Price on requestContact us for price and availability
1973246Ferrari Compl. Lower Rear Screen Trim - 973246$1,647.38Special order, ships in 7-14 days
270007843Ferrari COMPL. RH REAR SCREEN TRIM - 70007843Price on requestContact us for price and availability
270007844Ferrari COMPL. RH REAR SCREEN TRIM - 70007844Price on requestContact us for price and availability
2818472Ferrari Compl. RH Rear Screen Trim - 818472$4,765.40Special order, ships in 7-14 days
2819643Ferrari Compl. RH Rear Screen Trim - 819643$4,765.40Special order, ships in 7-14 days
2913996Ferrari Compl. RH Rear Screen Trim - 913996$4,765.40Special order, ships in 7-14 days
2973234Ferrari Compl. RH Rear Screen Trim - 973234$1,032.68Special order, ships in 7-14 days
2973242Ferrari Compl. RH Rear Screen Trim - 973242$983.50Special order, ships in 7-14 days
370007845Ferrari COMPL. LH REAR SCREEN TRIM - 70007845Price on requestContact us for price and availability
370007846Ferrari COMPL. LH REAR SCREEN TRIM - 70007846Price on requestContact us for price and availability
3818564Ferrari Compl. LH Rear Screen Trim - 818564$4,765.40Special order, ships in 7-14 days
3819630Ferrari Compl. LH Rear Screen Trim - 819630$4,765.40Special order, ships in 7-14 days
3913993Ferrari Compl. LH Rear Screen Trim - 913993$4,765.40Special order, ships in 7-14 days
3973236Ferrari Compl. LH Rear Screen Trim - 973236$983.50Special order, ships in 7-14 days
3973244Ferrari Compl. LH Rear Screen Trim - 973244$983.50Special order, ships in 7-14 days
4973230Ferrari Compl. RH Aero Flap Trim - 973230$909.73Special order, ships in 7-14 days
5973232Ferrari Compl. LH Aero Flap Trim - 973232$909.73Special order, ships in 7-14 days
6976734Ferrari RH B-Pillar Adapter - 976734$14.24Special order, ships in 7-14 days
7976751Ferrari LH B-Pillar Adapter - 976751$14.24Special order, ships in 7-14 days
885833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
912646778Ferrari Washer - 12646778$0.89In stock
10819779Ferrari Compl. RH Rear Grille - 819779$344.21Special order, ships in 7-14 days
10915907Ferrari Compl. RH Rear Grille - 915907Price on requestContact us for price and availability
11819763Ferrari Compl. LH Rear Grille - 819763Price on requestContact us for price and availability
11915862Ferrari Compl. LH Rear Grille - 915862Price on requestContact us for price and availability
12864808Ferrari Bracket - 864808$23.82Special order, ships in 7-14 days
13864870Ferrari Compl. RH Bracket - 864870$39.31Special order, ships in 7-14 days
14864776Ferrari Compl. LH Bracket - 864776$39.31Special order, ships in 7-14 days
1585692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
1668700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
1770007847Ferrari COMPL. RH LOWER SIDE PIECE - 70007847Price on requestContact us for price and availability
17913991Ferrari Compl. RH Lower Side Piece - 913991$2,482.21Special order, ships in 7-14 days
17973231Ferrari Compl. RH Lower Side Piece - 973231$1,081.84Special order, ships in 7-14 days
1870007848Ferrari COMPL. LH LOWER SIDE PIECE - 70007848Price on requestContact us for price and availability
18913994Ferrari Compl. LH Lower Side Piece - 913994$2,482.21Special order, ships in 7-14 days
18973229Ferrari Compl. LH Lower Side Piece - 973229$1,081.84Special order, ships in 7-14 days
19858132Ferrari Compl. RH Lateral Bracket - 858132$66.35Special order, ships in 7-14 days
20857804Ferrari Compl. LH Lateral Bracket - 857804$66.35Special order, ships in 7-14 days
2185833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
22864812Ferrari RH Upper Bracket - 864812$23.82Special order, ships in 7-14 days
23864757Ferrari LH Upper Bracket - 864757$23.82Special order, ships in 7-14 days
2485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
25864789Ferrari Compl. RH Lower Bracket - 864789$78.66Special order, ships in 7-14 days
26864830Ferrari Compl. LH Lower Bracket - 864830$78.66Special order, ships in 7-14 days
2714188971Ferrari Screw Clip - 14188971$9.07Special order, ships in 7-14 days
28972663Ferrari Compl. RH B Pillar Lower Sid - 972663$140.13Special order, ships in 7-14 days
29972666Ferrari Compl. LH B Pillar Lower Sid - 972666$140.13Special order, ships in 7-14 days
30798300Ferrari RH Fastener Bracket - 798300$68.83Special order, ships in 7-14 days
31798297Ferrari LH Fastener Bracket - 798297$68.83Special order, ships in 7-14 days
3285691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
33972687Ferrari Compl. LH Lower Side Piece B - 972687$132.75Special order, ships in 7-14 days
3355041554Ferrari COMPL. LH LOWER SIDE PIECE BRACKET - 55041554Price on requestContact us for price and availability
34972702Ferrari Compl. RH Lower Side Piece B - 972702$46.69Special order, ships in 7-14 days
3514059114Ferrari Nut M5 - 14059114$0.27Available, ships in 3-6 days
36155184Ferrari Bracket - 155184Price on requestContact us for price and availability
37787235Ferrari Dedication Plaque - 787235$1,106.43Special order, ships in 7-14 days
37944229Ferrari Dedication Plaque - 944229$1,106.43Special order, ships in 7-14 days
38751049Ferrari LH Upper Flank Bracket - 751049$44.24Special order, ships in 7-14 days
38751050Ferrari RH Upper Flank Bracket - 751050$44.24Special order, ships in 7-14 days
3914059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
40864754Ferrari RH Seat Belt Guide Loop - 864754$71.28Special order, ships in 7-14 days
41864752Ferrari LH Seat Belt Guide Loop - 864752$71.28Special order, ships in 7-14 days
4213270417Ferrari Screw 3x8 - 13270417$0.13Special order, ships in 7-14 days
4315900270Ferrari Trim Screw - 15900270$0.27Available, ships in 3-6 days
