Ferrari 296 GTS — [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES (diagram 0165)

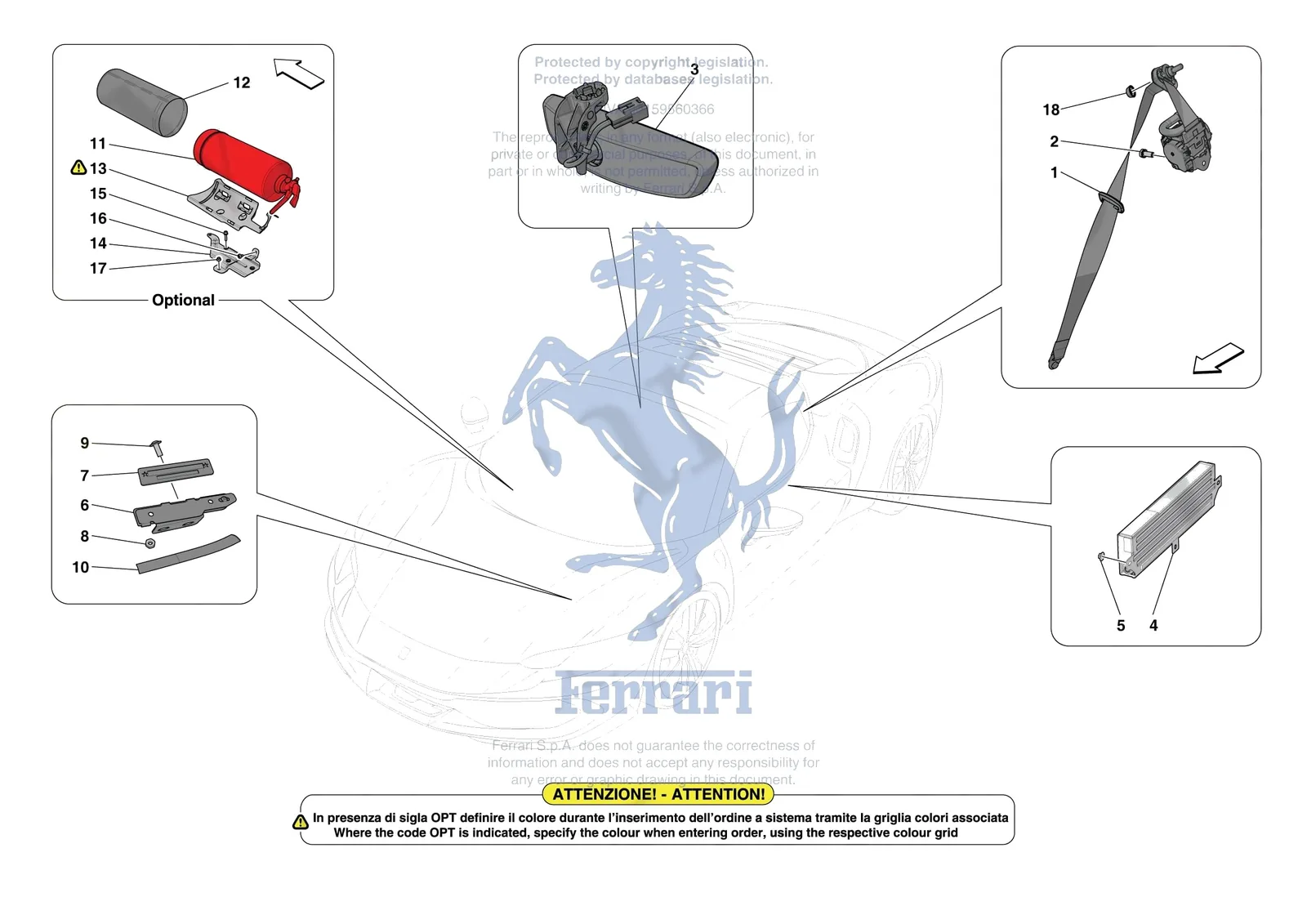

Exploded view of the [vehicle trim] - e.53 - other interior trim accessories on the Ferrari 296 GTS, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0165.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 82654500 | Ferrari 2KG Fire Extinguisher - 82654500 | Superseded | Order 922429 instead | |
| 83490400 | Ferrari 2KG Fire Extinguisher - 83490400 | Superseded | Order 922429 instead | |
| 780208 | Ferrari Extinguisher Trim Kit - 780208 | Superseded | Order 895261 instead | |
| 802134 | Ferrari Extinguisher Trim Kit - 802134 | Superseded | Order 895444 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 55060610 | Ferrari LH THREE POINT SEAT BELT - 55060610 | Price on request | Contact us for price and availability |
| 1 | 55060612 | Ferrari LH THREE POINT SEAT BELT - 55060612 | Price on request | Contact us for price and availability |
| 1 | 55060613 | Ferrari RH THREE POINT SEAT BELT - 55060613 | Price on request | Contact us for price and availability |
| 1 | 55060614 | Ferrari RH THREE POINT SEAT BELT - 55060614 | Price on request | Contact us for price and availability |
| 2 | 82447100 | Ferrari Screw - 82447100 | $3.68 | Available, ships in 3-6 days |
| 3 | 823949 | Ferrari Interior Rear View Mirror Complete - 823949 | $1,901.45 | Special order, ships in 7-14 days |
| 3 | 823993 | Ferrari Interior Rear View Mirror Complete - 823993 | $568.23 | Special order, ships in 7-14 days |
| 3 | 823994 | Ferrari Interior Rear View Mirror Complete - 823994 | $1,901.45 | Special order, ships in 7-14 days |
| 3 | 824000 | Ferrari Interior Rear View Mirror Complete - 824000 | $1,901.45 | Special order, ships in 7-14 days |
| 3 | 824001 | Ferrari Interior Rear View Mirror Complete - 824001 | $1,901.45 | Special order, ships in 7-14 days |
| 4 | 795717 | Ferrari LH Hsab Jss - 795717 | $1,352.32 | Special order, ships in 7-14 days |
| 4 | 795718 | Ferrari RH Hsab JSS - 795718 | $1,352.32 | Special order, ships in 7-14 days |
| 5 | 911976 | Ferrari Wide Flange Hex Nut - 911976 | $24.02 | Special order, ships in 7-14 days |
| 6 | 834415 | Ferrari Compl. Id Plate Bracket - 834415 | $88.49 | Special order, ships in 7-14 days |
| 8 | 10794011 | Ferrari Nut M4 x 0.7mm - 10794011 | $0.06 | Available, ships in 3-6 days |
| 9 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 11 | 874687 | Ferrari 2Kg Fire Extinguisher - 874687 | $2,702.34 | Special order, ships in 7-14 days |
| 11 | 922429 | Ferrari 2KG FIRE EXTINGUISHER - 922429 | $1,081.84 | Special order, ships in 7-14 days |
| 13 | 895261 | Ferrari Extinguisher Trim Kit - 895261 | $2,458.79 | Special order, ships in 7-14 days |
| 13 | 895444 | Ferrari Extinguisher Trim Kit - 895444 | $2,060.69 | Special order, ships in 7-14 days |
| 14 | 981469 | Ferrari Compl. Fire Extinguisher Fas - 981469 | $122.92 | Special order, ships in 7-14 days |
| 14 | 981598 | Ferrari Compl. Fire Extinguisher Fas - 981598 | $142.58 | Special order, ships in 7-14 days |
| 15 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 16 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 17 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 18 | 83717300 | Ferrari SCREW HEAD COVER - 83717300 | $10.25 | Special order, ships in 7-14 days |
