Ferrari 296 GTS — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

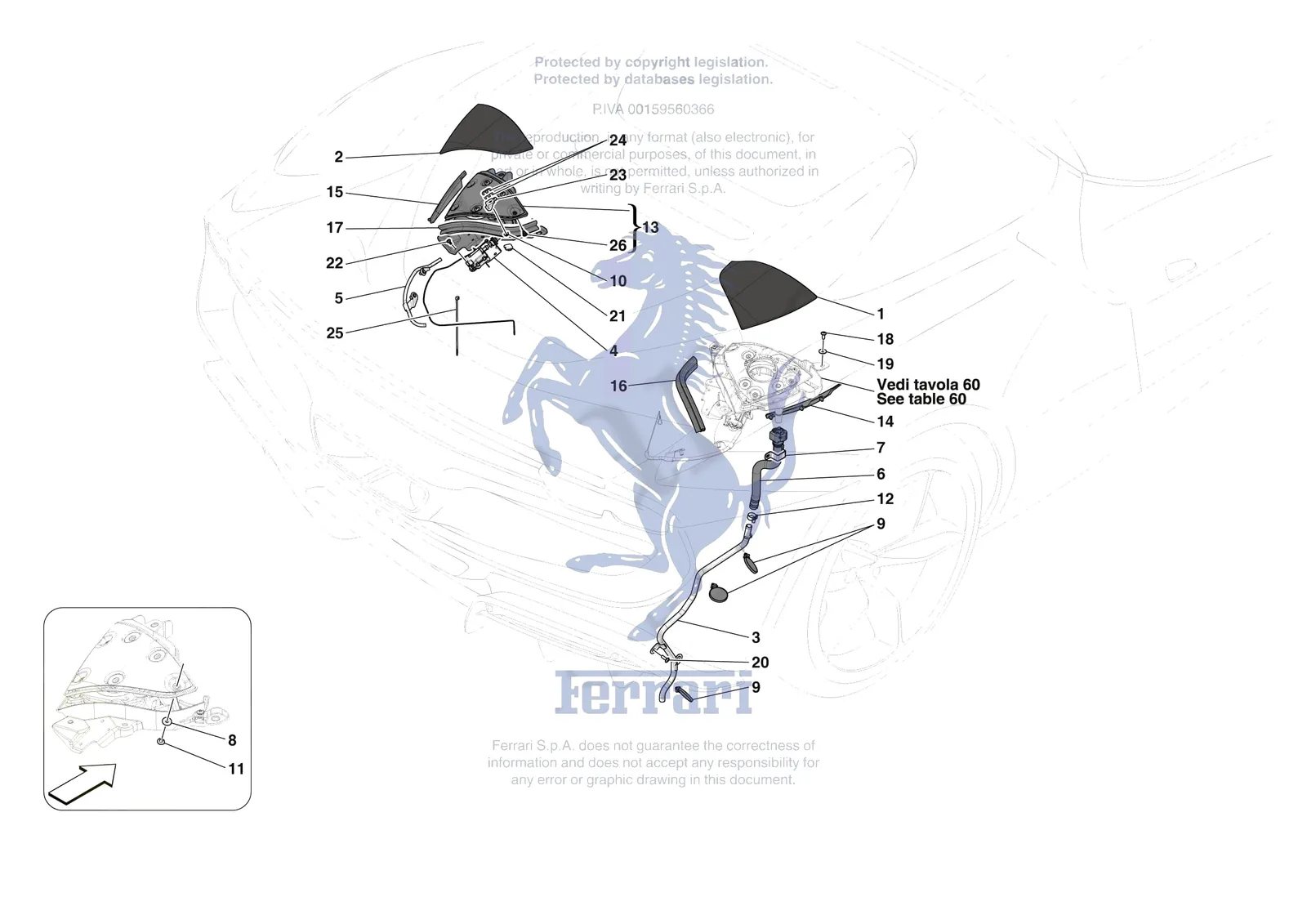

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari 296 GTS, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0168.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 228142 | Ferrari Clamp 20.2-22.8x9.2 - 228142 | Superseded | Order 13126070 instead | |
| 13127070 | Ferrari Collar - 13127070 | Superseded | Order 13126070 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 10860270 | Ferrari Screw Collar - 10860270 | $1.94 | Available, ships in 3-6 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 940374 | Ferrari Compl. Fuel Filler Flap - 940374 | $934.32 | Special order, ships in 7-14 days |
| 2 | 940375 | Ferrari Compl. Charging Socket Cover - 940375 | $934.32 | Special order, ships in 7-14 days |
| 3 | 742116 | Ferrari Lower Rigid Drain Pipe - 742116 | $319.62 | Special order, ships in 7-14 days |
| 4 | 805321 | Ferrari Compl. Charge Socket Flap Ac - 805321 | Superseded | Order 55020781 instead |
| 4 | 55020781 | Ferrari Compl. Charge Socket Flap Acuator - 55020781 | $201.06 | Special order, ships in 7-14 days |
| 5 | 742228 | Ferrari LH Cable Guide Tube - 742228 | $218.81 | Special order, ships in 7-14 days |
| 6 | 742021 | Ferrari Preformed Pipe - 742021 | $236.02 | Special order, ships in 7-14 days |
| 7 | 742114 | Ferrari Pipe Mounting Bracket - 742114 | $27.03 | Special order, ships in 7-14 days |
| 8 | 13577701 | Ferrari Washer 5.15 - 15 x 1.2 - 13577701 | $0.19 | Available, ships in 3-6 days |
| 9 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 10 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 10 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 11 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 12 | 13126070 | Ferrari Collar - 13126070 | $1.99 | Available, ships in 3-6 days |
| 12 | 262109 | Ferrari Screw Collar - 262109 | $2.01 | Available, ships in 3-6 days |
| 13 | 805334 | Ferrari Compl. Charging Socket Carri - 805334 | $1,671.97 | Special order, ships in 7-14 days |
| 13 | 839171 | Ferrari Compl. Charging Socket Carri - 839171 | $1,967.03 | Special order, ships in 7-14 days |
| 13 | 839172 | Ferrari Compl. Charging Socket Carri - 839172 | $1,967.03 | Special order, ships in 7-14 days |
| 13 | 870408 | Ferrari Compl. Charging Socket Carri - 870408 | $1,943.61 | Special order, ships in 7-14 days |
| 13 | 870747 | Ferrari Compl. Charging Socket Carri - 870747 | $1,671.97 | Special order, ships in 7-14 days |
| 13 | 870760 | Ferrari Compl. Charging Socket Carri - 870760 | $1,721.15 | Special order, ships in 7-14 days |
| 13 | 871652 | Ferrari Compl. Charging Socket Carri - 871652 | $1,696.56 | Special order, ships in 7-14 days |
| 14 | 838742 | Ferrari RH Gasket - 838742 | $56.79 | Special order, ships in 7-14 days |
| 15 | 838746 | Ferrari LH Gasket - 838746 | $56.79 | Special order, ships in 7-14 days |
| 16 | 838657 | Ferrari RH Window Stop Seal - 838657 | $61.16 | Special order, ships in 7-14 days |
| 17 | 838658 | Ferrari LH Window Stop Seal - 838658 | $61.16 | Special order, ships in 7-14 days |
| 18 | 85740000 | Ferrari Screw - 85740000 | $2.59 | Special order, ships in 7-14 days |
| 19 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 20 | 269959 | Ferrari Screw - 269959 | $1.61 | In stock |
| 21 | 839014 | Ferrari Emergency Release Cap - 839014 | $44.24 | Special order, ships in 7-14 days |
| 21 | 870409 | Ferrari Emergency Release Cap - 870409 | $90.95 | Special order, ships in 7-14 days |
| 21 | 870751 | Ferrari Emergency Release Cap - 870751 | $44.24 | Special order, ships in 7-14 days |
| 22 | 15689601 | Ferrari Screw D. 4.2 x 13 - 15689601 | $0.46 | Available, ships in 3-6 days |
| 23 | 82249400 | Ferrari Striker Plate - 82249400 | $12.99 | Special order, ships in 7-14 days |
| 24 | 84046900 | Ferrari Spacer Plate - 84046900 | $14.72 | Special order, ships in 7-14 days |
| 25 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 26 | 84918500 | Ferrari Rubber Stop - 84918500 | $7.40 | Special order, ships in 7-14 days |
