Ferrari 296 GTS — [VEHICLE TRIM] - E.57.01 - AC SYSTEM - EVAPORATOR (diagram 0169)
Exploded view of the [vehicle trim] - e.57.01 - ac system - evaporator on the Ferrari 296 GTS, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

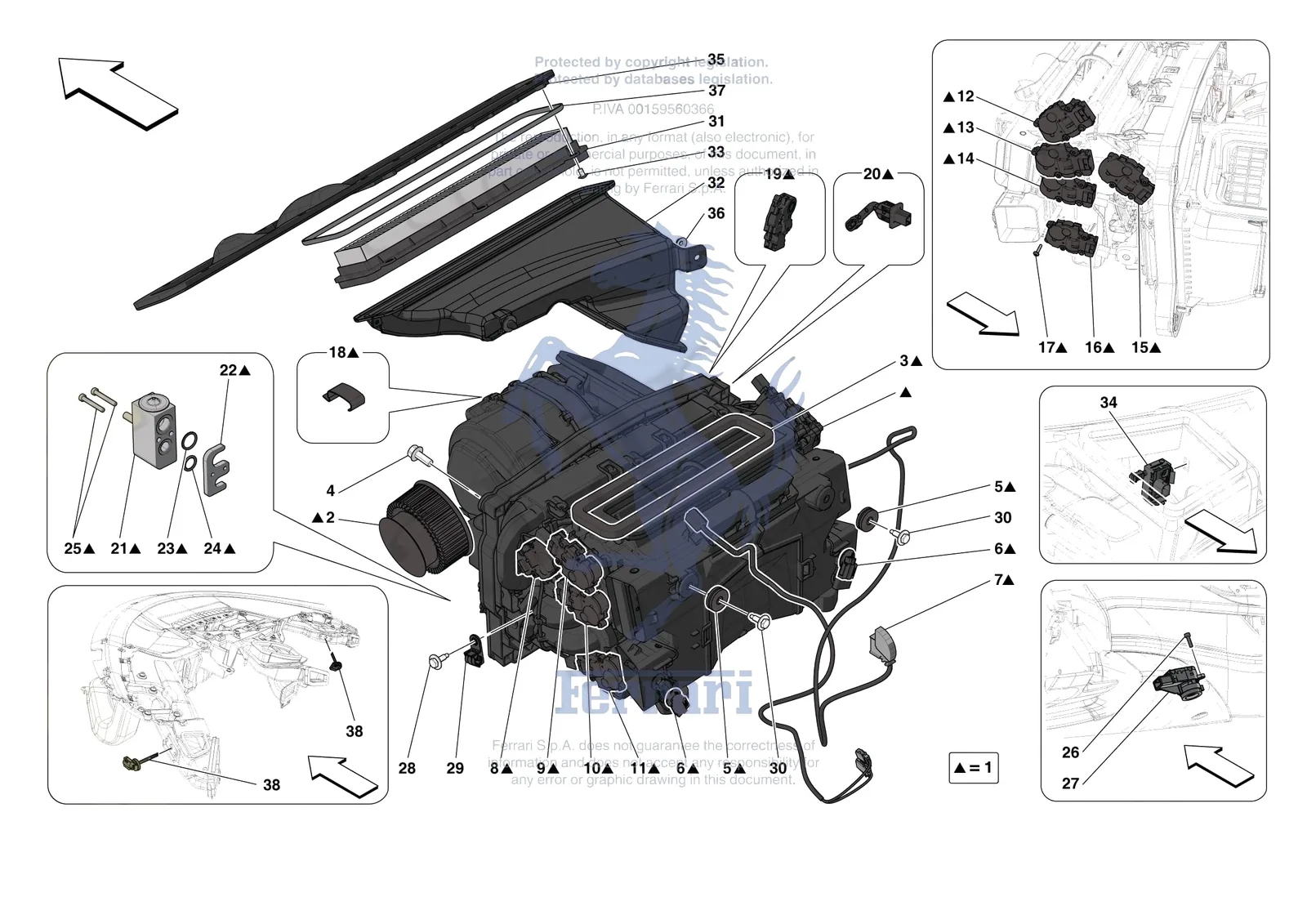

![Ferrari 296 GTS [VEHICLE TRIM] - E.57.01 - AC SYSTEM - EVAPORATOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0169.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 845769 | Ferrari Compl. Anti-Pollen Filter Ad - 845769 | Superseded | Order 889685 instead | |
| 1 | 965060 | Ferrari Hvac Airmix Tko Front Airinl - 965060 | Superseded | Order 988473 instead |
| 1 | 988473 | Ferrari Hvac Airmix Tko Front Airinl - 988473 | $5,395.33 | Special order, ships in 7-14 days |
| 2 | 819890 | Ferrari Fan - 819890 | $1,524.44 | Special order, ships in 7-14 days |
| 3 | 819859 | Ferrari Seal Tape - 819859 | $23.33 | Special order, ships in 7-14 days |
| 4 | 16287127 | Ferrari Screw 8x20 - 16287127 | $0.92 | Special order, ships in 7-14 days |
| 5 | 68389800 | Ferrari Rubber Pad - 68389800 | $12.52 | Special order, ships in 7-14 days |
| 6 | 88712600 | Ferrari Temperature Sensor - 88712600 | $34.94 | Special order, ships in 7-14 days |
| 7 | 917970 | Ferrari Cable Harness Cabin Side - 917970 | $295.03 | Special order, ships in 7-14 days |
| 7 | 917969 | Ferrari Cable Harness Engine Side - 917969 | $137.67 | Special order, ships in 7-14 days |
| 8 | 819848 | Ferrari LH Temperature Actuator - 819848 | $214.17 | Special order, ships in 7-14 days |
| 9 | 819846 | Ferrari LH Central Vent Actuator - 819846 | $214.17 | Special order, ships in 7-14 days |
| 10 | 819839 | Ferrari LH Lateral Vent Actuator - 819839 | $203.24 | Special order, ships in 7-14 days |
| 11 | 819843 | Ferrari LH Heater Actuator - 819843 | $214.17 | Special order, ships in 7-14 days |
| 12 | 819845 | Ferrari Defroster Actuator - 819845 | $214.17 | Special order, ships in 7-14 days |
| 13 | 819847 | Ferrari RH Central Vent Actuator - 819847 | $214.17 | Available, ships in 3-6 days |
| 14 | 819840 | Ferrari RH Lateral Vent Actuator - 819840 | $214.17 | Special order, ships in 7-14 days |
| 15 | 819849 | Ferrari RH Temperature Actuator - 819849 | $213.21 | Special order, ships in 7-14 days |
| 16 | 819844 | Ferrari RH Heater Actuator - 819844 | $214.17 | Special order, ships in 7-14 days |
| 17 | 819837 | Ferrari Screw - 819837 | $9.16 | Special order, ships in 7-14 days |
| 18 | 819860 | Ferrari Clip - 819860 | $8.05 | Special order, ships in 7-14 days |
| 19 | 917968 | Ferrari Recirculation Actuator - 917968 | $91.77 | Special order, ships in 7-14 days |
| 20 | 819834 | Ferrari Evaporator Sensor - 819834 | $19.20 | Special order, ships in 7-14 days |
| 21 | 917976 | Ferrari Expansion Valve W Shut-Off - 917976 | $371.53 | Special order, ships in 7-14 days |
| 22 | 819881 | Ferrari Plate - 819881 | $37.13 | Special order, ships in 7-14 days |
| 23 | 819882 | Ferrari Washer - 819882 | $10.68 | Special order, ships in 7-14 days |
| 24 | 819883 | Ferrari Washer - 819883 | $45.87 | Special order, ships in 7-14 days |
| 25 | 819885 | Ferrari Screw - 819885 | $83.03 | Special order, ships in 7-14 days |
| 26 | 14303123 | Ferrari Screw - 14303123 | $0.12 | Available, ships in 3-6 days |
| 26 | 14303124 | Ferrari SCREW - 14303124 | Superseded | Order 14303123 instead |
| 27 | 89274100 | Ferrari Sensore Temperatura - 89274100 | $157.34 | Special order, ships in 7-14 days |
| 28 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
| 29 | 262380 | Ferrari Clip - 262380 | $3.47 | Special order, ships in 7-14 days |
| 31 | 891392 | Ferrari GTC4 Lusso Cabin Filter - 891392 | $168.80 | In stock |
| 32 | 867908 | Ferrari Complete AC Unit Mobile Duct - 867908 | $236.02 | Special order, ships in 7-14 days |
| 32 | 865720 | Ferrari Complete AC Unit Mobile Duct Gd - 865720 | $245.85 | Special order, ships in 7-14 days |
| 33 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 34 | 839918 | Ferrari Ac Air Quality Sensor - 839918 | $163.89 | Special order, ships in 7-14 days |
| 35 | 889685 | Ferrari Compl. Anti-Pollen Filter Ad - 889685 | $270.44 | Special order, ships in 7-14 days |
| 36 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 36 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 37 | 55059940 | Ferrari Guarnizione Filtro Antipolli - 55059940 | $50.24 | Special order, ships in 7-14 days |
