Ferrari 296 GTS — [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0170)

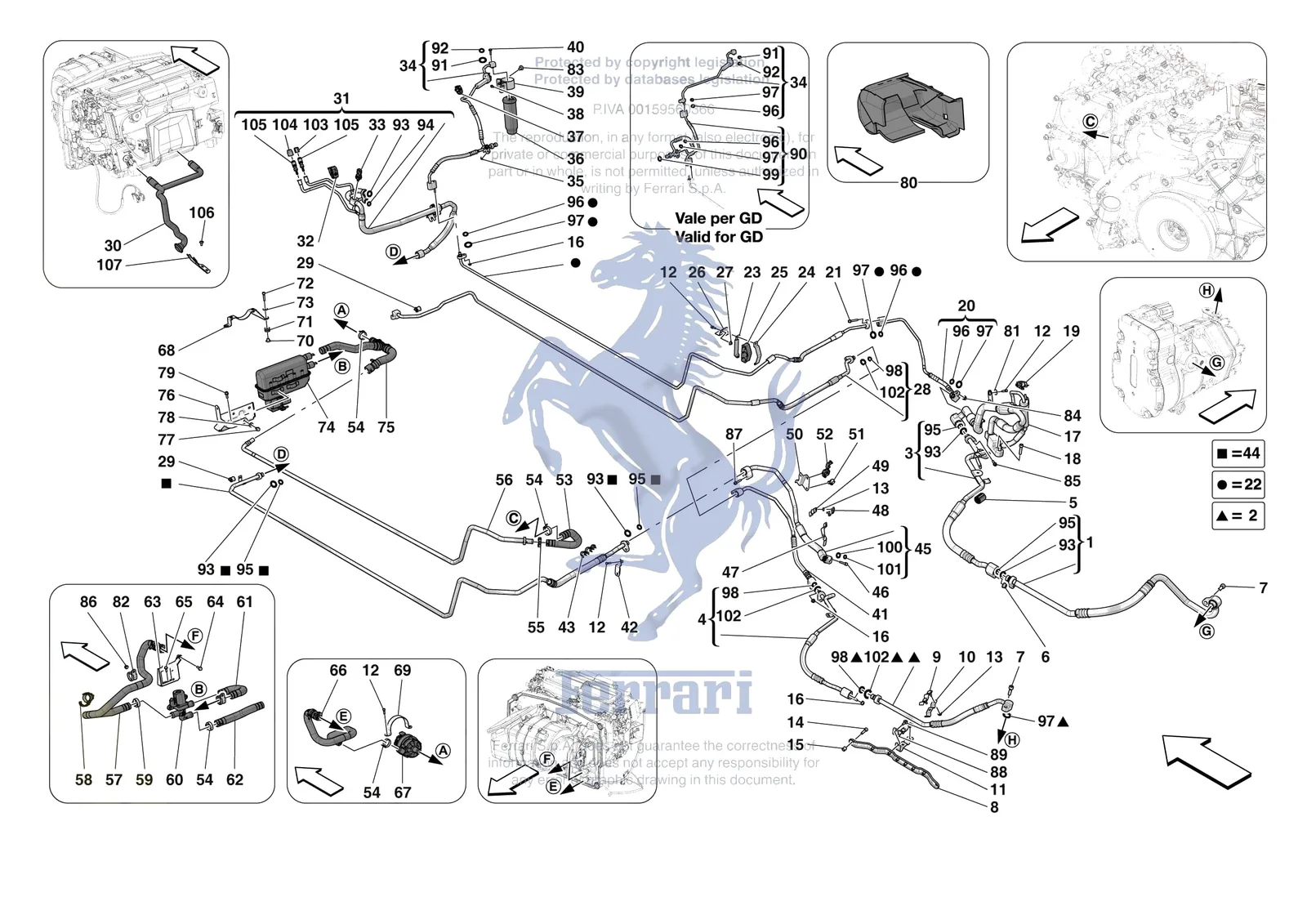

Exploded view of the [vehicle trim] - e.57.02 - ac system - air conditioner system on the Ferrari 296 GTS, with 134 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTS [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
262112Ferrari Collar - 262112SupersededOrder 262111 instead
13442484Ferrari Gasket - 13442484SupersededOrder 11342484 instead
13046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
14066017Ferrari Nut - 14066017$5.65Special order, ships in 7-14 days
64342800Ferrari Nut - 64342800SupersededOrder 177778 instead
133215Ferrari Nut Locking - 133215SupersededOrder 177778 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
834367Ferrari Screw 8x25 - 834367SupersededOrder 231628 instead
14306621Ferrari Screw 8X35 - 14306621SupersededOrder 14306624 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1918821Ferrari Return Pipe From Compressor - 918821$442.56Special order, ships in 7-14 days
2918839Ferrari Delivery Pipe From Compresso - 918839$344.21Special order, ships in 7-14 days
3861590Ferrari Return Pipe From Subframe To - 861590$194.22Special order, ships in 7-14 days
4868402Ferrari Pipe From Gearbox Disconnect - 868402$211.43Special order, ships in 7-14 days
5308399Ferrari Spacer - 308399$12.86Special order, ships in 7-14 days
614040714Ferrari Flanged Nut - 14040714$1.25Available, ships in 3-6 days
7231628Ferrari Screw 8x25 - 231628$1.15Special order, ships in 7-14 days
8823047Ferrari Bracket - 823047$98.32Special order, ships in 7-14 days
9788622Ferrari Upper Bracket - 788622$66.35Special order, ships in 7-14 days
10788623Ferrari Lower Bracket - 788623$66.35Special order, ships in 7-14 days
11788624Ferrari Lower Bracket - 788624$56.52Special order, ships in 7-14 days
12256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
1313046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
1314040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
14231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
1513609811Ferrari Spacer - 13609811$7.19Special order, ships in 7-14 days
1614040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
17848372Ferrari Compl. Rear Ihx Pipe - 848372$1,647.38Special order, ships in 7-14 days
1814306624Ferrari Screw 8x35mm - 14306624$0.52Special order, ships in 7-14 days
19247440Ferrari Clip - 247440$1.30Available, ships in 3-6 days
20821875Ferrari Underbody Battery Cooling Freon Pipe - 821875$245.85Special order, ships in 7-14 days
21231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
22917476Ferrari Underbody Battery Cooling Fr - 917476$319.62Special order, ships in 7-14 days
23965775Ferrari Front Bracket For Retainer B - 965775$31.93Special order, ships in 7-14 days
24965773Ferrari Rear Bracket For Retainer Bl - 965773$31.93Special order, ships in 7-14 days
25965774Ferrari Retainer Block - 965774$12.44Special order, ships in 7-14 days
26905700Ferrari Retainer Block Mounting Brac - 905700$39.31Special order, ships in 7-14 days
2714039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
28917478Ferrari Freon Delivery Pipe From Und - 917478$442.56Special order, ships in 7-14 days
2910441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
30805541Ferrari Ac Condensate Drain Duct - 805541$137.67Special order, ships in 7-14 days
30936135Ferrari Ac Condensate Drain Duct - 936135$130.29Special order, ships in 7-14 days
31791545Ferrari Compl. Front Ihx Pipe - 791545$2,013.87Special order, ships in 7-14 days
31910261Ferrari Compl. Front Ihx Pipe - 910261$1,499.85Special order, ships in 7-14 days
32244277Ferrari Clip - 244277$2.59Special order, ships in 7-14 days
32804571Ferrari Clip - 804571$5.65Special order, ships in 7-14 days
33802654Ferrari Sensore T&Low-P Freon - 802654$216.35Special order, ships in 7-14 days
34798152Ferrari Receiver Drier Outlet Pipe - 798152$713.04Special order, ships in 7-14 days
34979766Ferrari Receiver Drier Outlet Pipe - 979766$417.97Special order, ships in 7-14 days
3514066021Ferrari Nut - 14066021$5.86Special order, ships in 7-14 days
3667085100Ferrari/Maserati Dehydrating Filter - 67085100$73.54In stock
37262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
3816281824Ferrari Screw - 16281824$0.82Available, ships in 3-6 days
39919263Ferrari Receiver Drier Mounting Brac - 919263$108.16Special order, ships in 7-14 days
4011626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
4011612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
41917464Ferrari Freon Delivery Pipe From Underbody to Disconnector Union - 917464$639.27Special order, ships in 7-14 days
42846540Ferrari Ac Pipe Mounting Bracket - 846540$51.62Special order, ships in 7-14 days
43965378Ferrari Clip - 965378$3.26Special order, ships in 7-14 days
44917477Ferrari Freon Return Pipe From Under - 917477$417.97Special order, ships in 7-14 days
45917463Ferrari Freon Return Pipe From Underbody - 917463$467.15Special order, ships in 7-14 days
46231620Ferrari/Maserati Screw - 231620$0.58In stock
47859531Ferrari Ac Pipe Retainer Bracket - 859531$36.86Special order, ships in 7-14 days
48833205Ferrari Female U-Bolt - 833205$36.86Special order, ships in 7-14 days
49833204Ferrari Male U-Bolt - 833204$54.07Special order, ships in 7-14 days
50959192Ferrari Ac Pipe Retainer Bracket - 959192$31.93Special order, ships in 7-14 days
51198264Ferrari Clip - 198264$5.65Special order, ships in 7-14 days
5282396800Ferrari Clip - 82396800$2.01Special order, ships in 7-14 days
53935880Ferrari Rear Water Hose For Heater - 935880$90.95Special order, ships in 7-14 days
54262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
56869466Ferrari Underbody Water Pipe - 869466$189.31Special order, ships in 7-14 days
57883593Ferrari Hose From Hvac To Valve - 883593$199.14Special order, ships in 7-14 days
57971925Ferrari Hose From Hvac To Valve - 971925$186.84Special order, ships in 7-14 days
58304443Ferrari Clip - 304443$1.36Special order, ships in 7-14 days
58821185Ferrari Clip D.22-26.5 - 821185$5.65Special order, ships in 7-14 days
59830033Ferrari Collar - 830033$4.56Special order, ships in 7-14 days
60797425Ferrari Valvola 3 Vie A Solenoide - 797425$639.27Special order, ships in 7-14 days
61883594Ferrari A/C Hose From Solenoid To He - 883594$76.19Special order, ships in 7-14 days
62868949Ferrari Hose From Valve To Return Pi - 868949$88.49Special order, ships in 7-14 days
63888385Ferrari Solenoid Mounting Bracket - 888385$108.16Special order, ships in 7-14 days
6416286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
6516285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
66960860Ferrari A/C Hose From Pump To Hvac - 960860$186.84Special order, ships in 7-14 days
66971927Ferrari A/C Hose From Pump To Hvac - 971927$196.67Special order, ships in 7-14 days
67838313Ferrari HV Circuit Electric Pump - 838313$721.22Special order, ships in 7-14 days
68763912Ferrari Ac Pump Bracket Mount - 763912$51.62Special order, ships in 7-14 days
69763913Ferrari A/C Pump Mounting Bracket - 763913$31.93Special order, ships in 7-14 days
70149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
71103549Ferrari Grommet - 103549$2.80In stock
72231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
7312643724Ferrari/Maserati Washer - 12643724$0.20In stock
74814467Ferrari High Voltage Heater - 814467$1,956.62Special order, ships in 7-14 days
75939622Ferrari Hose - 939622$240.94Special order, ships in 7-14 days
76742210Ferrari Heater Mounting Bracket - 742210$167.17Special order, ships in 7-14 days
76888368Ferrari Heater Mounting Bracket - 888368$120.46Special order, ships in 7-14 days
7812647601Ferrari Washer - 12647601$0.13Special order, ships in 7-14 days
79231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
80848717Ferrari Kit Coibentazione Gruppo Hva - 848717$172.10Special order, ships in 7-14 days
8112647701Ferrari Washer - 12647701$0.12Available, ships in 3-6 days
8210442090Ferrari P Clip Bracket With Sheath D26 - 10442090$1.42Available, ships in 3-6 days
8311625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
84177778Ferrari Nut Locking M8 x 7 - 177778$2.82Available, ships in 3-6 days
85231629Ferrari Allen Screw M8 x 30 TCEI - 231629$1.15Available, ships in 3-6 days
87265097Ferrari Screw 8X40 - 265097$14.84Special order, ships in 7-14 days
88888452Ferrari Upper Bracket - 888452SupersededOrder 788622 instead
89797726Ferrari Screw - 797726$1.05Special order, ships in 7-14 days
90979769Ferrari Pipe From Disconnector To Fr - 979769$590.08Special order, ships in 7-14 days
9110318884Ferrari Gasket - 10318884$10.46Special order, ships in 7-14 days
9214450483Ferrari Gasket - 14450483$10.46Special order, ships in 7-14 days
9311342784Ferrari Washer 3/4" - 11342784$19.42Available, ships in 3-6 days
9411342484Ferrari Gasket - 11342484$10.46Special order, ships in 7-14 days
9511084384Ferrari Gasket - 11084384$20.51Special order, ships in 7-14 days
9611084084Ferrari Gasket - 11084084$10.46Special order, ships in 7-14 days
9711342584Ferrari Washer 1/2" - 11342584$19.42Available, ships in 3-6 days
9811084284Ferrari Gasket - 11084284$10.46Special order, ships in 7-14 days
9914452884Ferrari Gasket - 14452884$34.94Special order, ships in 7-14 days
10010319984Ferrari Gasket - 10319984$54.61Special order, ships in 7-14 days
10114450783Ferrari Gasket - 14450783$54.61Special order, ships in 7-14 days
10211342684Ferrari Gasket - 11342684$50.24Special order, ships in 7-14 days
10355029869Ferrari LP Plug - 55029869$21.60Special order, ships in 7-14 days
10455029871Ferrari High Pressure Cap - 55029871$23.57Special order, ships in 7-14 days
10555029938Ferrari Valve Mechanism - 55029938$34.40Special order, ships in 7-14 days
10655019966Ferrari Condensation Pipe Retainer B - 55019966$36.86Special order, ships in 7-14 days
10655019967Ferrari Condensation Pipe Retainer B - 55019967$44.24Special order, ships in 7-14 days
10785692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
