Ferrari 296 GTS — [VEHICLE TRIM] - E.58 - BADGES (diagram 0171)

Exploded view of the [vehicle trim] - e.58 - badges on the Ferrari 296 GTS, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

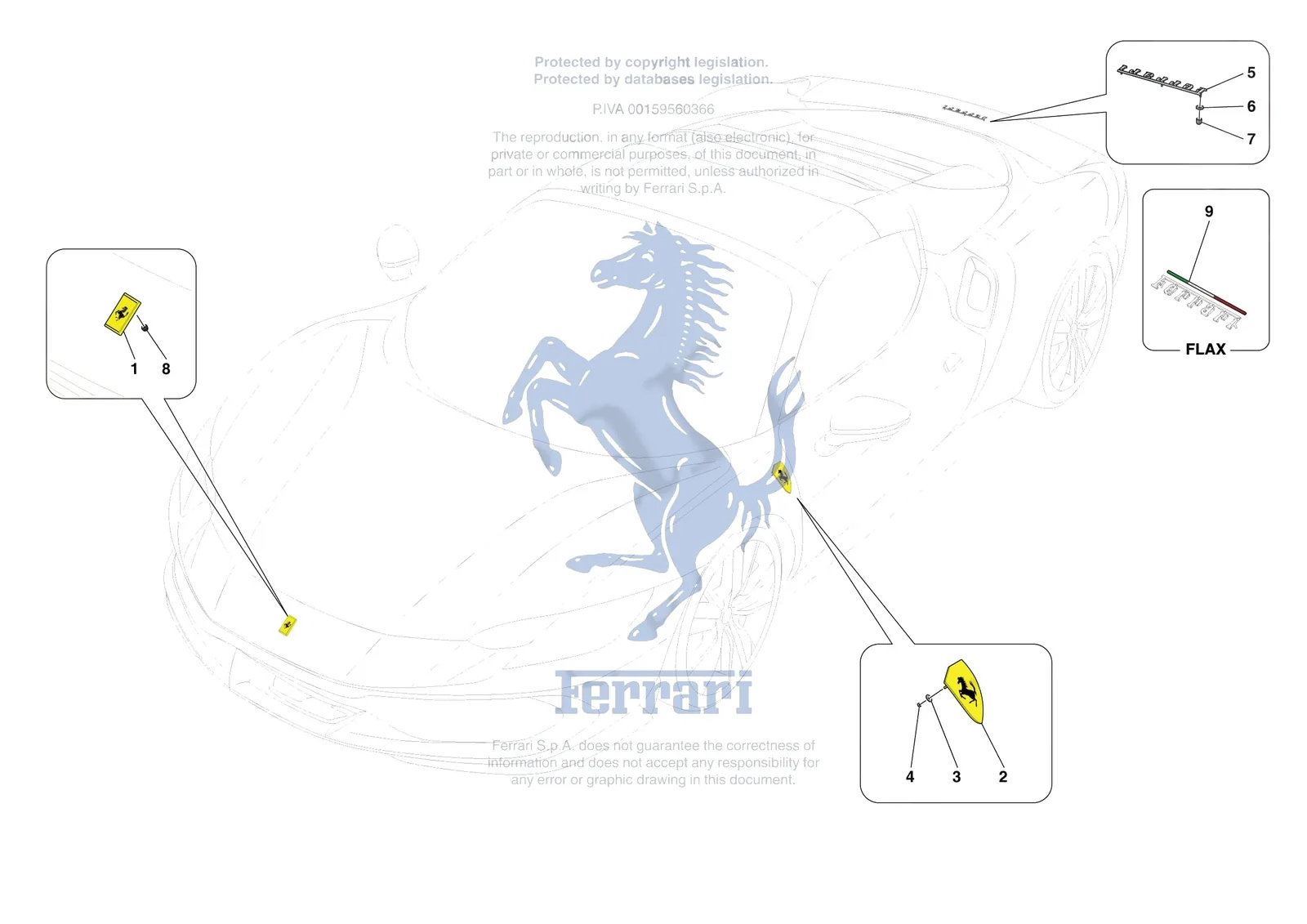

Ferrari 296 GTS [VEHICLE TRIM] - E.58 - BADGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12574115Ferrari Nut - 12574115SupersededOrder 169180 instead
12577811Ferrari Nut - 12577811SupersededOrder 169180 instead
12574111Ferrari Nyloc Nut - 12574111SupersededOrder 169180 instead
12574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
1973053Ferrari Front Emblem/Badge - 973053$368.80In stock
165394800Ferrari Nose Emblem Badge - 65394800SupersededOrder 973053 instead
270004391Ferrari Mask For Airbrushed Horse Lo - 70004391$313.28Special order, ships in 7-14 days
2771434Ferrari Squadra Corse Shield Badge F - 771434SupersededOrder 977606 instead
2977606Ferrari Squadra Corse Shield Badge F - 977606$1,721.15Special order, ships in 7-14 days
312642878Ferrari Washer - 12642878$0.19Available, ships in 3-6 days
416101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
570006277Ferrari Badge - 70006277$125.37Special order, ships in 7-14 days
563482200Ferrari Rear Emblem / Motif - 63482200$114.05In stock
689144000Ferrari Washer - 89144000$0.79Available, ships in 3-6 days
784952000Ferrari Cosmetic Cap - 84952000$16.45Available, ships in 3-6 days
8169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
984706300Ferrari Italian Flag Badge - 84706300SupersededOrder 988640 instead
9988640Ferrari Italian Flag Badge - 988640$835.97Available, ships in 3-6 days

All 296 GTS diagrams
