Ferrari 296 GTS — [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM (diagram 0172)

Exploded view of the [vehicle trim] - e.59 - external lateral trim on the Ferrari 296 GTS, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

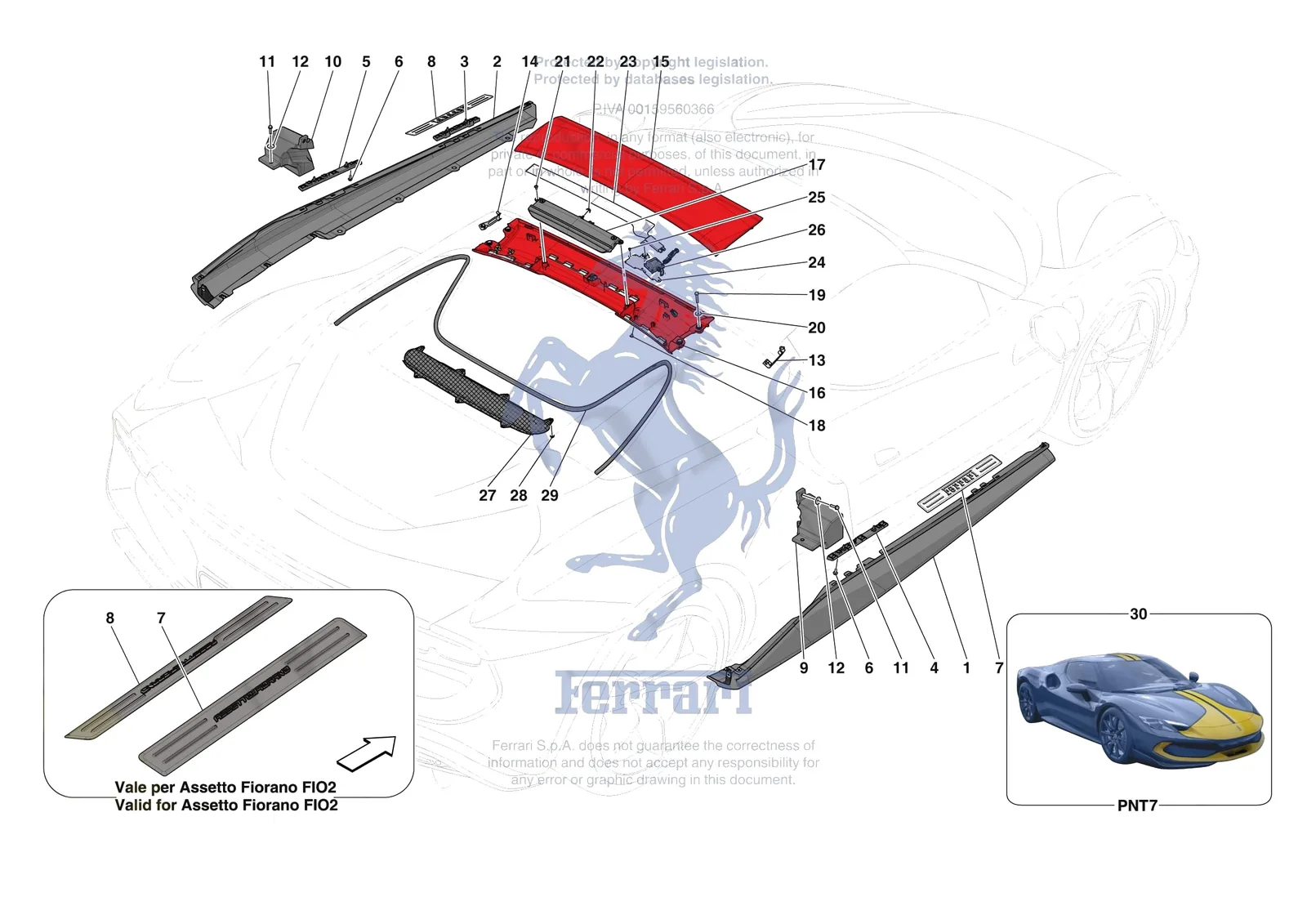

Ferrari 296 GTS [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
170007725Ferrari COMPL. RH OUTER SILL COVER - 70007725Price on requestContact us for price and availability
170007726Ferrari Compl. RH Outer Sill Cover - 70007726$17,300.67Special order, ships in 7-14 days
170007929Ferrari Compl. RH Outer Sill Cover - 70007929$17,345.16Special order, ships in 7-14 days
1769913Ferrari Compl. RH Outer Sill Cover - 769913$393.38Special order, ships in 7-14 days
1777167Ferrari Compl. RH Outer Sill Cover - 777167$8,594.11Special order, ships in 7-14 days
1818315Ferrari Compl. RH Outer Sill Cover - 818315$8,221.79Special order, ships in 7-14 days
270007727Ferrari COMPL. LH OUTER SILL COVER - 70007727Price on requestContact us for price and availability
270007728Ferrari Compl. LH Outer Sill Cover - 70007728$17,300.67Special order, ships in 7-14 days
270007930Ferrari Compl. LH Outer Sill Cover - 70007930$17,345.16Special order, ships in 7-14 days
2769916Ferrari Compl. LH Outer Sill Cover - 769916$393.38Special order, ships in 7-14 days
2777177Ferrari Compl. LH Outer Sill Cover - 777177$8,594.11Special order, ships in 7-14 days
2818316Ferrari Compl. LH Outer Sill Cover - 818316$8,657.35Special order, ships in 7-14 days
3980826Ferrari Front Sill Trim Panel Bracke - 980826$27.03Special order, ships in 7-14 days
4980832Ferrari RH Rear Sill Trim Panel Brac - 980832$27.03Special order, ships in 7-14 days
5980825Ferrari LH Rear Sill Trim Panel Brac - 980825$27.03Special order, ships in 7-14 days
611625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
770007730Ferrari COMPL. RH OUTER KICKPLATE - 70007730Price on requestContact us for price and availability
7797145Ferrari Compl. RH Outer Kickplate - 797145$1,549.03Special order, ships in 7-14 days
7797146Ferrari Compl. RH Outer Kickplate - 797146$1,499.85Special order, ships in 7-14 days
770007729Ferrari RH Kickplate - 70007729$19,515.01Contact us to order
7811468Ferrari RH Kickplate - 811468$1,524.44Special order, ships in 7-14 days
7847417Ferrari RH Kickplate - 847417$1,598.19Special order, ships in 7-14 days
7980850Ferrari RH Kickplate - 980850$295.03Special order, ships in 7-14 days
870007732Ferrari COMPL. LH OUTER KICKPLATE - 70007732Price on requestContact us for price and availability
8797142Ferrari Compl. LH Outer Kickplate - 797142$1,549.03Special order, ships in 7-14 days
8797144Ferrari Compl. LH Outer Kickplate - 797144$1,499.85Special order, ships in 7-14 days
870007731Ferrari LH Kickplate - 70007731$19,515.01Contact us to order
8811482Ferrari LH Kickplate - 811482$1,524.44Special order, ships in 7-14 days
8847421Ferrari LH Kickplate - 847421$1,598.19Special order, ships in 7-14 days
8980853Ferrari LH Kickplate - 980853$295.03Special order, ships in 7-14 days
9980831Ferrari RH Lateral Absorber Bumper - 980831$63.90Special order, ships in 7-14 days
10980848Ferrari LH Lateral Absorber Bumper - 980848$63.90Special order, ships in 7-14 days
1116286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
1212648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
13821745Ferrari Compl. RH Door Seal Fastener - 821745$68.83Special order, ships in 7-14 days
14821740Ferrari Compl. LH Door Seal Fastener - 821740$68.83Special order, ships in 7-14 days
15985821722Ferrari Compl. Upper Spoiler Cover - 985821722$2,341.71Special order, ships in 7-14 days
16985821727Ferrari Compl. Lower Spoiler Cover - 985821727$2,248.03Special order, ships in 7-14 days
17887490Ferrari Third Brake Light - 887490$480.81Special order, ships in 7-14 days
1885692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
1886705000Ferrari Screw M5x10 TBFTX - 86705000$1.36Special order, ships in 7-14 days
1910903034Ferrari Screw 6x35 - 10903034$0.82Available, ships in 3-6 days
2012643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
2213046111Ferrari Nut 6x6 - 13046111$0.73Special order, ships in 7-14 days
23911287Ferrari Am/Fm1 Amplifier - 911287$442.56Special order, ships in 7-14 days
23911283Ferrari Am/Fm1-Dab Amplifier - 911283$983.50Special order, ships in 7-14 days
24905705Ferrari Gnss/Sdars Antenna Mounting - 905705$110.61Special order, ships in 7-14 days
2516082801Ferrari Screw - 16082801$0.06Special order, ships in 7-14 days
26957961Ferrari Gnss Antenna - 957961$211.98Special order, ships in 7-14 days
26957962Ferrari Sdars Antenna - 957962$284.11Special order, ships in 7-14 days
2770007849Ferrari TONNEAU COVER GRILLE - 70007849Price on requestContact us for price and availability
27948580Ferrari Tonneau Cover Grille - 948580$305.96Special order, ships in 7-14 days
2813046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
29750401Ferrari Tc Trim Seal - 750401$63.37Special order, ships in 7-14 days
3070007735Ferrari Livery Stripe Stencil - 70007735$1,827.64Special order, ships in 7-14 days
3070008522Ferrari Rigid Front Bumper Mask Opt - 70008522$9,489.56Special order, ships in 7-14 days
3070008523Ferrari Rigid Rear Bumper Mask Opt P - 70008523$9,489.56Special order, ships in 7-14 days
