Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.01 - BATTERIES (diagram 0176)

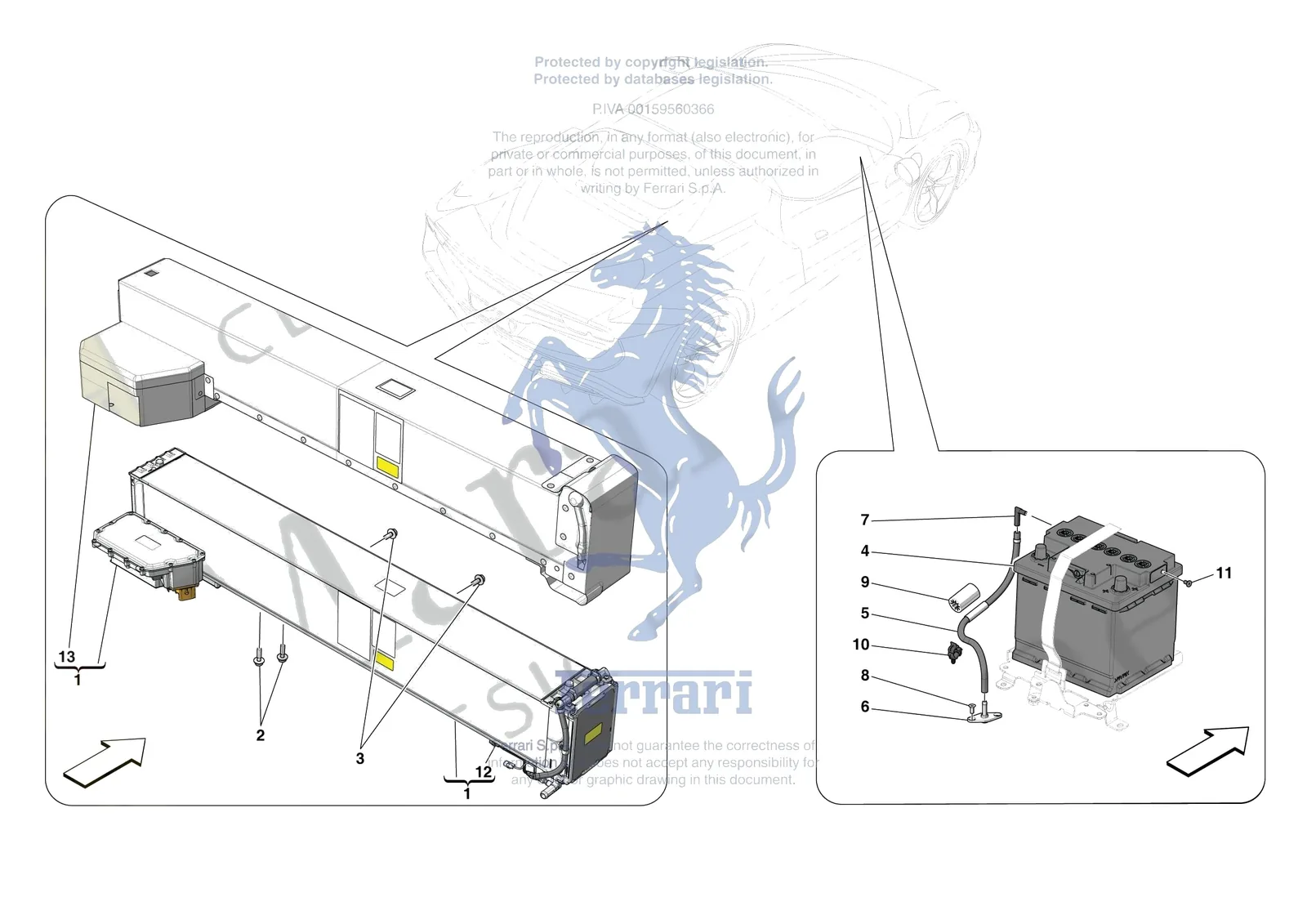

Exploded view of the [electrical system] - f.01 - batteries on the Ferrari 296 GTS, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.01 - BATTERIES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0176.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 766996 | Ferrari Battery - High Voltage - 766996 | $34,102.37 | Contact us to order |
| 2 | 962530 | Ferrari Screw - 962530 | $6.54 | Special order, ships in 7-14 days |
| 3 | 962531 | Ferrari Screw - 962531 | $6.54 | Special order, ships in 7-14 days |
| 4 | 949042 | Ferrari Battery 50Ah - 949042 | $1,376.91 | Available, ships in 3-6 days |
| 5 | 950103 | Ferrari Battery Vent - 950103 | $46.69 | Special order, ships in 7-14 days |
| 5 | 950678 | Ferrari Battery Vent - RHD - 950678 | $46.69 | Special order, ships in 7-14 days |
| 6 | 950118 | Ferrari Battery Vent Block - 950118 | $130.29 | Special order, ships in 7-14 days |
| 7 | 199631 | Ferrari Union - 199631 | $0.82 | Available, ships in 3-6 days |
| 8 | 14440634 | Ferrari SCREW - 14440634 | $0.31 | Available, ships in 3-6 days |
| 9 | 322605 | Ferrari Spacer - 322605 | $4.35 | Special order, ships in 7-14 days |
| 10 | 310112 | Ferrari Clip - 310112 | $1.30 | Special order, ships in 7-14 days |
| 11 | 834740 | Ferrari Battery Breather Cap - 834740 | $2.01 | Special order, ships in 7-14 days |
| 12 | 859545 | Ferrari Temperature Sensor - 859545 | $146.41 | Special order, ships in 7-14 days |
| 13 | 55051823 | Ferrari HVB BATTERY HEAT SHIELD - 55051823 | $5,114.65 | Special order, ships in 7-14 days |
