Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.03 - INSTRUMENTATION (diagram 0178)

Exploded view of the [electrical system] - f.03 - instrumentation on the Ferrari 296 GTS, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

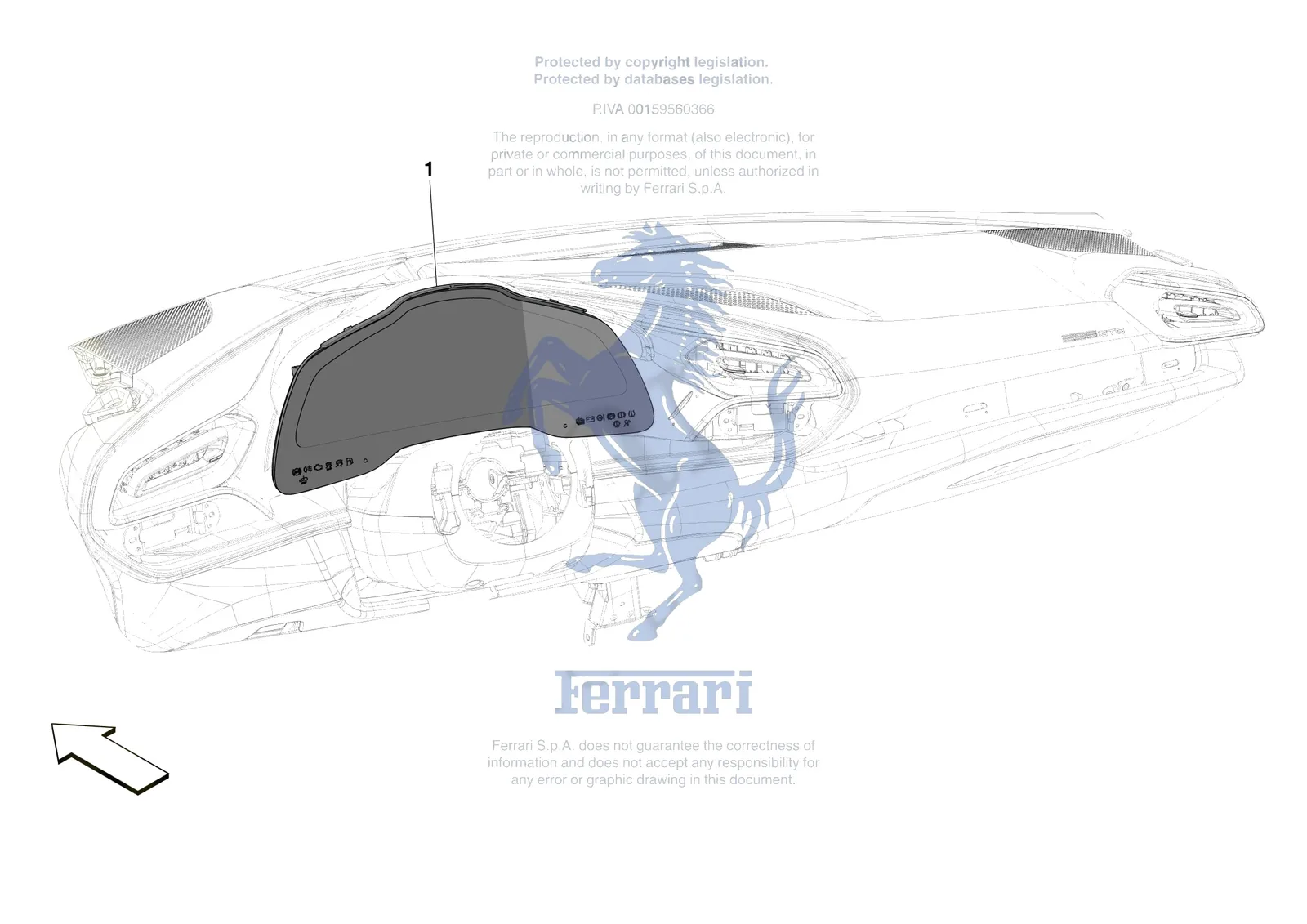

Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.03 - INSTRUMENTATION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
155016569Ferrari Instrument Panel - 55016569$19,343.63Contact us to order
155016570Ferrari Instrument Panel - 55016570$19,345.79Contact us to order
1779284Ferrari Instrument Panel - 779284SupersededOrder 55016569 instead
1779285Ferrari INSTRUMENT PANEL - 779285Price on requestContact us to order
1938611Ferrari Instrument Panel - 938611$18,586.45Contact us to order
1938612Ferrari Instrument Panel - 938612$19,161.38Contact us to order

All 296 GTS diagrams
