Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.05 - OTHER ELECTRICAL DEVICES (diagram 0180)
Exploded view of the [electrical system] - f.05 - other electrical devices on the Ferrari 296 GTS, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

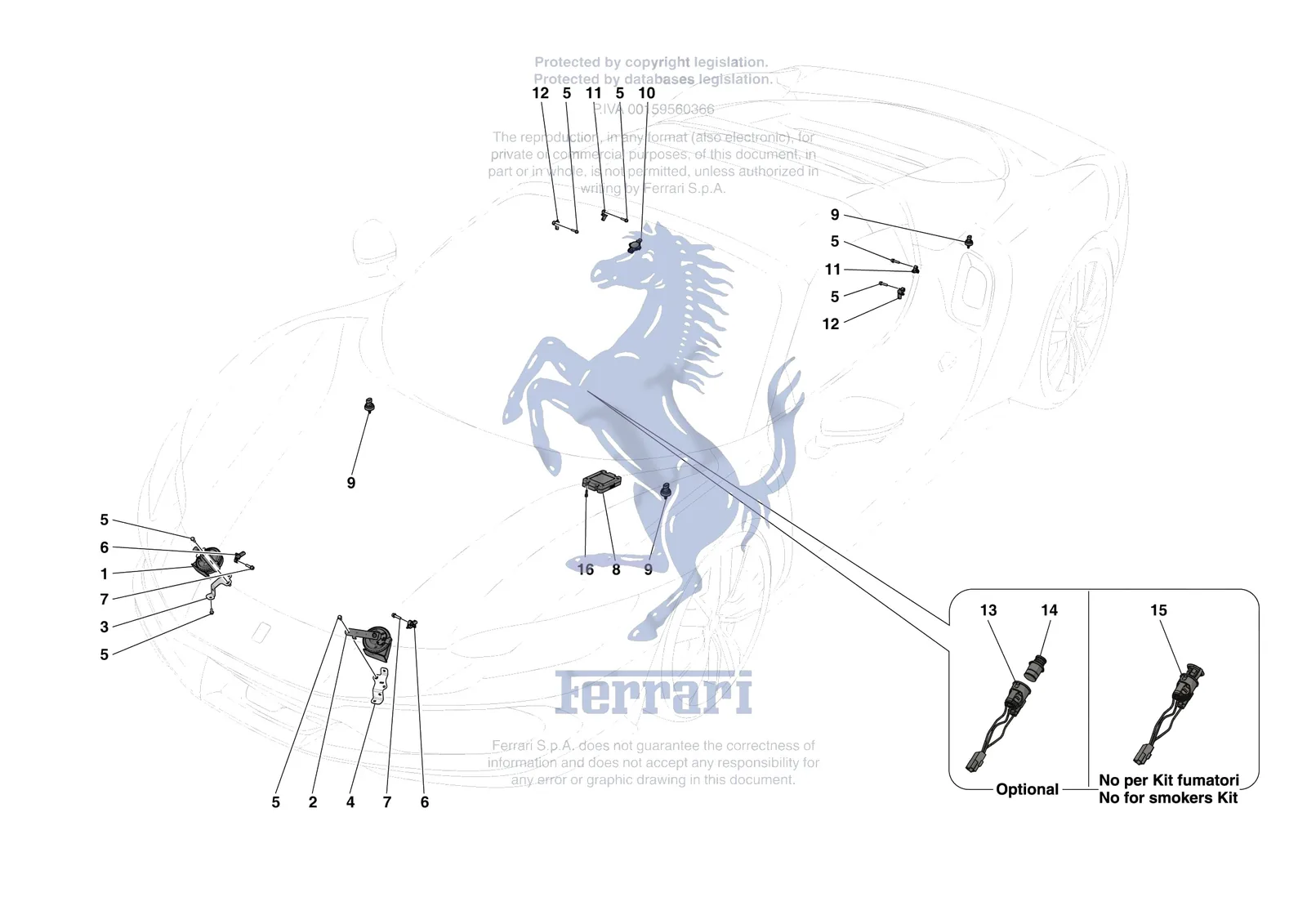

![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.05 - OTHER ELECTRICAL DEVICES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0180.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 336893 | Ferrari Avv. Acustico Tono Alto F164 - 336893 | Superseded | Order 789532 instead | |
| 336894 | Ferrari Avv. Acustico Tono Basso F16 - 336894 | $41.30 | Special order, ships in 7-14 days | |
| 789569 | Ferrari Wireless Charger - 789569 | Superseded | Order 936880 instead | |
| 1 | 789533 | Ferrari Horn Low Note - 789533 | $115.80 | Special order, ships in 7-14 days |
| 2 | 789532 | Ferrari Horn High Note - 789532 | $115.80 | Special order, ships in 7-14 days |
| 3 | 741501 | Ferrari Compl. RH Horn Mounting Brac - 741501 | $61.45 | Special order, ships in 7-14 days |
| 4 | 741570 | Ferrari Compl. LH Horn Mounting Brac - 741570 | $63.90 | Special order, ships in 7-14 days |
| 5 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 6 | 764923 | Ferrari Front Crash Sensor - 764923 | $74.29 | Available, ships in 3-6 days |
| 7 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 8 | 936880 | Ferrari Wireless Charger - 936880 | $1,524.44 | Special order, ships in 7-14 days |
| 9 | 263079 | Ferrari Accelerator For Magneride System - 263079 | Superseded | Order 990305 instead |
| 9 | 990305 | Ferrari Accelerator For Magneride System - 990305 | $442.56 | Available, ships in 3-6 days |
| 10 | 55019172 | Ferrari RAIN AND TWILIGHT SENSOR - 55019172 | $393.38 | Special order, ships in 7-14 days |
| 10 | 786808 | Ferrari Rain And Twilight Sensor - 786808 | $393.38 | Special order, ships in 7-14 days |
| 11 | 764924 | Ferrari LATERAL CRASH SENSOR - 764924 | $74.29 | Special order, ships in 7-14 days |
| 12 | 821052 | Ferrari Lateral Crash Sensor - 821052 | $74.29 | Special order, ships in 7-14 days |
| 13 | 183271 | Ferrari Cigarette Lighter Casing - 183271 | $58.98 | Special order, ships in 7-14 days |
| 14 | 804743 | Ferrari Cigarette Lighter - 804743 | $56.52 | Available, ships in 3-6 days |
| 15 | 215406 | Ferrari 12V Socket - 215406 | $71.28 | Available, ships in 3-6 days |
| 16 | 86876400 | Ferrari Screw M4 x 14 TBEI - 86876400 | $15.49 | Special order, ships in 7-14 days |
