Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.06 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0181)

Exploded view of the [electrical system] - f.06 - electrical system control units on the Ferrari 296 GTS, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

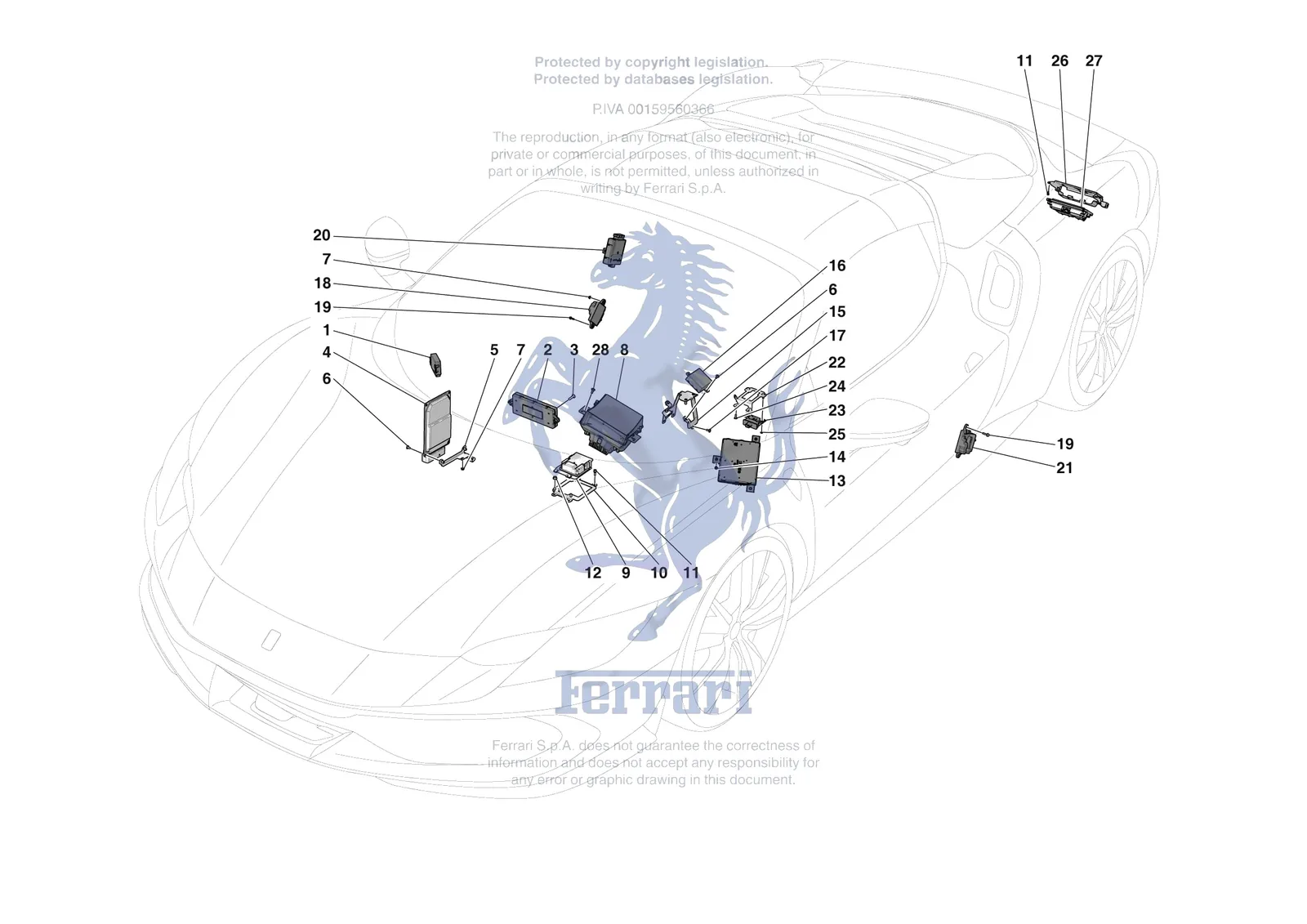

Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.06 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
967340Ferrari Centralina Epc Can500 M - 967340SupersededOrder 773542 instead
967341Ferrari Centralina Epc Can500 S - 967341SupersededOrder 773543 instead
825029Ferrari Head Up Display - 825029SupersededOrder 942922 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
1938639Ferrari Parking Sensor ECU - 938639$417.97Special order, ships in 7-14 days
2764604Ferrari Hvac Ecu - 764604$1,844.08Special order, ships in 7-14 days
385834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
4811458Ferrari Active Aero Control Unit - 811458$2,013.87Special order, ships in 7-14 days
5959875Ferrari Active Aero ECU Mounting Bra - 959875$58.98Special order, ships in 7-14 days
5875043Ferrari Suspension ECU Mounting Brac - 875043$66.35Special order, ships in 7-14 days
685692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
714059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
714039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
855003062Ferrari Head Up Display - 55003062$5,460.89Special order, ships in 7-14 days
855003063Ferrari Head Up Display - 55003063$5,460.89Special order, ships in 7-14 days
8825027Ferrari Head Up Display - 825027$5,507.72Special order, ships in 7-14 days
8942921Ferrari Head Up Display - 942921$5,507.72Special order, ships in 7-14 days
8942922Ferrari Head Up Display - 942922$5,507.72Special order, ships in 7-14 days
9797003Ferrari Airbag Ecu - 797003$1,081.84Special order, ships in 7-14 days
9797005Ferrari Airbag Ecu - 797005$1,081.84Special order, ships in 7-14 days
9835059Ferrari Airbag Ecu - 835059$1,081.84Special order, ships in 7-14 days
10979058Ferrari Airbag ECU Bracket - 979058$83.57Special order, ships in 7-14 days
11294780Ferrari Allen Head Bolt with Washer M5X16 - 294780$0.98Special order, ships in 7-14 days
1214059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
12113647Ferrari Nyloc Nut - 113647$0.52Available, ships in 3-6 days
13786545Ferrari Body Computer - 786545$1,475.26Special order, ships in 7-14 days
1416286127Ferrari Screw 6x20 - 16286127$0.82Available, ships in 3-6 days
15778365Ferrari Matrix Headlamp ECU Bracket - 778365$142.58Special order, ships in 7-14 days
16829517Ferrari Matrix Headlamp ECU - 829517$491.74Special order, ships in 7-14 days
1785833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
18773542Ferrari Centralina Epc Can500 M - 773542$663.86Special order, ships in 7-14 days
18773444Ferrari Master Epc Unit For Fuel Pumps - 773444$614.67Special order, ships in 7-14 days
1916285227Ferrari Screw M5 x 20 - 16285227$0.59Available, ships in 3-6 days
20934044Ferrari Variable Geometry Wing ECU - 934044$860.56Special order, ships in 7-14 days
21773543Ferrari Centralina Epc Can500 S - 773543$663.86Special order, ships in 7-14 days
21773445Ferrari Slave Epc Unit For Fuel Pumps - 773445$614.67Special order, ships in 7-14 days
22854403Ferrari Tpms Antenna Mounting Bracke - 854403$44.24Special order, ships in 7-14 days
23939577Ferrari TPMS ECU/Antenna - 939577$762.20Special order, ships in 7-14 days
23939579Ferrari Tpms Ecu/Antenna - 939579$762.20Special order, ships in 7-14 days
2485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
26960791Ferrari Lift System ECU Mounting Bra - 960791$218.81Special order, ships in 7-14 days
2755028859Ferrari Vehicle Lift Ecu - 55028859$1,524.44Special order, ships in 7-14 days
27847092Ferrari Vehicle Lift Ecu - 847092SupersededOrder 55028859 instead
27951586Ferrari Vehicle Lift Ecu - 951586SupersededOrder 55028859 instead
28883403Ferrari Fixing and Centering Screw - 883403$28.39Special order, ships in 7-14 days
