Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari 296 GTS, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

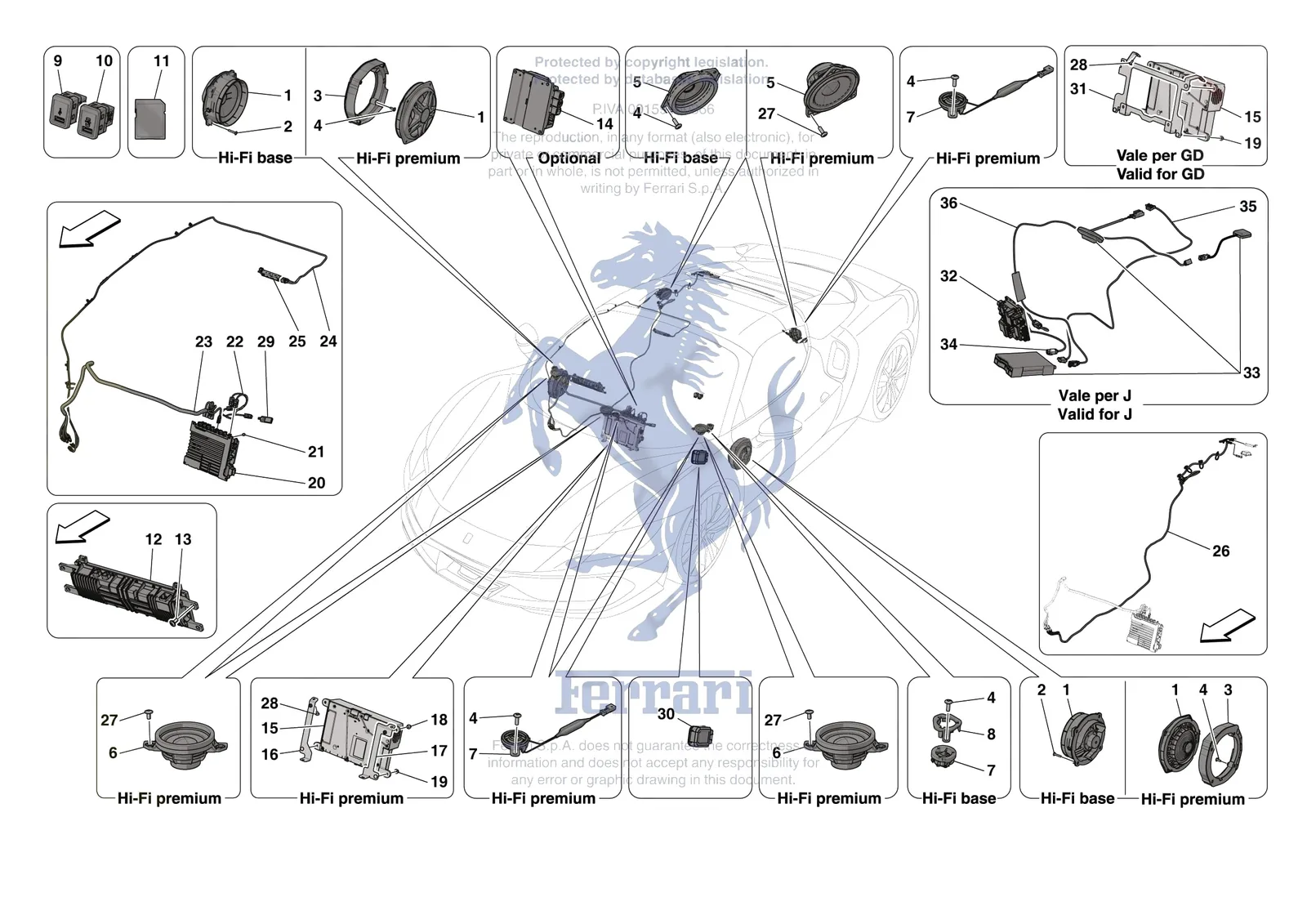

Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
285834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
285834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
3260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
3260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
5269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
5321880Ferrari Twiddler - 321880$327.81Special order, ships in 7-14 days
6321889Ferrari Speaker - 321889$305.96Special order, ships in 7-14 days
7251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
7321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
888202500Ferrari Tweeter Support - 88202500$4.39Special order, ships in 7-14 days
9303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
10848476Ferrari Presa Usb Smartphone Project - 848476$211.43Special order, ships in 7-14 days
1170006011Ferrari Sd Card Navigation Maps - 70006011$1,256.70Special order, ships in 7-14 days
12866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
1385692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
14875005Ferrari USB Splitter - Apple Car Play Version - 875005$1,598.19Contact us to order
15936132Ferrari 12-Channel Amplifier - 936132$8,097.68Special order, ships in 7-14 days
16970218Ferrari Compl. RH Amplifier Bracket - 970218$46.69Special order, ships in 7-14 days
17970226Ferrari Compl. LH Amplifier Bracket - 970226$46.69Special order, ships in 7-14 days
1816296927Ferrari Screw - 16296927$0.98Available, ships in 3-6 days
1914059221Ferrari Nut - 14059221$1.04Special order, ships in 7-14 days
20779092Ferrari Nit - 779092$15,239.95Contact us to order
20779094Ferrari Nit - 779094$15,239.95Contact us to order
20779096Ferrari Nit - 779096$17,038.40Contact us to order
20779098Ferrari Nit - 779098$17,595.73Contact us to order
20887175Ferrari Nit - 887175$15,239.95Contact us to order
20887244Ferrari Nit - 887244$16,577.07Contact us to order
20887246Ferrari Nit - 887246$16,577.07Contact us to order
20887250Ferrari Nit - 887250$13,130.04Contact us to order
20887251Ferrari Nit - 887251$13,130.04Contact us to order
20887255Ferrari Nit - 887255$16,577.07Contact us to order
2114304124Ferrari Screw TCEI M5 x 12 - 14304124$0.31Special order, ships in 7-14 days
22768959Ferrari Compl. Wifi-Bt Cable - 768959$228.64Special order, ships in 7-14 days
23818640Ferrari Dashboard Antenna Cable - 818640$713.04Special order, ships in 7-14 days
23839110Ferrari Dashboard Antenna Cable - 839110$467.15Special order, ships in 7-14 days
23905715Ferrari Dashboard Antenna Cable - 905715$663.86Special order, ships in 7-14 days
23951192Ferrari Dashboard Antenna Cable - 951192$614.67Special order, ships in 7-14 days
24808663Ferrari Antenna Cable - 808663$344.21Special order, ships in 7-14 days
24951194Ferrari Fm2 Amplifier Antenna Cable - 951194$243.40Special order, ships in 7-14 days
24952356Ferrari Fm2 Amplifier Antenna Cable - 952356$223.73Special order, ships in 7-14 days
24950489Ferrari Fm2 Antenna Cable - 950489$243.40Special order, ships in 7-14 days
24952010Ferrari Fm2-Dab2 Amplifier Cable - 952010$442.56Special order, ships in 7-14 days
25771350Ferrari Fm2/Dab Amplifier - 771350$344.21Special order, ships in 7-14 days
25771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
25771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
26840481Ferrari Passenger Compartment Antenn - 840481$565.49Special order, ships in 7-14 days
2785692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
29843076Ferrari Antenna Bt-Wifi Dual Band - 843076$85.22Special order, ships in 7-14 days
30951166Ferrari Dongle - 951166SupersededOrder 951168 instead
30951167Ferrari Dongle - 951167$2,060.69Special order, ships in 7-14 days
30951168Ferrari MYFERRARI CONNECT ECU - 951168$1,920.19Special order, ships in 7-14 days
30951169Ferrari MYFERRARI CONNECT ECU - 951169$2,060.69Special order, ships in 7-14 days
31778658Ferrari Compl. Amplifier Bracket - 778658$189.31Special order, ships in 7-14 days
32951766Ferrari 4-Way Usb Hub For Dsrc Jrc - 951766$1,598.19Special order, ships in 7-14 days
33928349Ferrari Compl. Drsc-Vics Kit - 928349$14,542.12Special order, ships in 7-14 days
34928354Ferrari Dsrc/Hub Cable - 928354$130.29Special order, ships in 7-14 days
35958191Ferrari Dsrc 5.8Ghz Advance Antenna - 958191$181.93Special order, ships in 7-14 days
36958192Ferrari Dsrc Beacon Antenna Cable - 958192$66.35Special order, ships in 7-14 days
