Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM (diagram 0187)

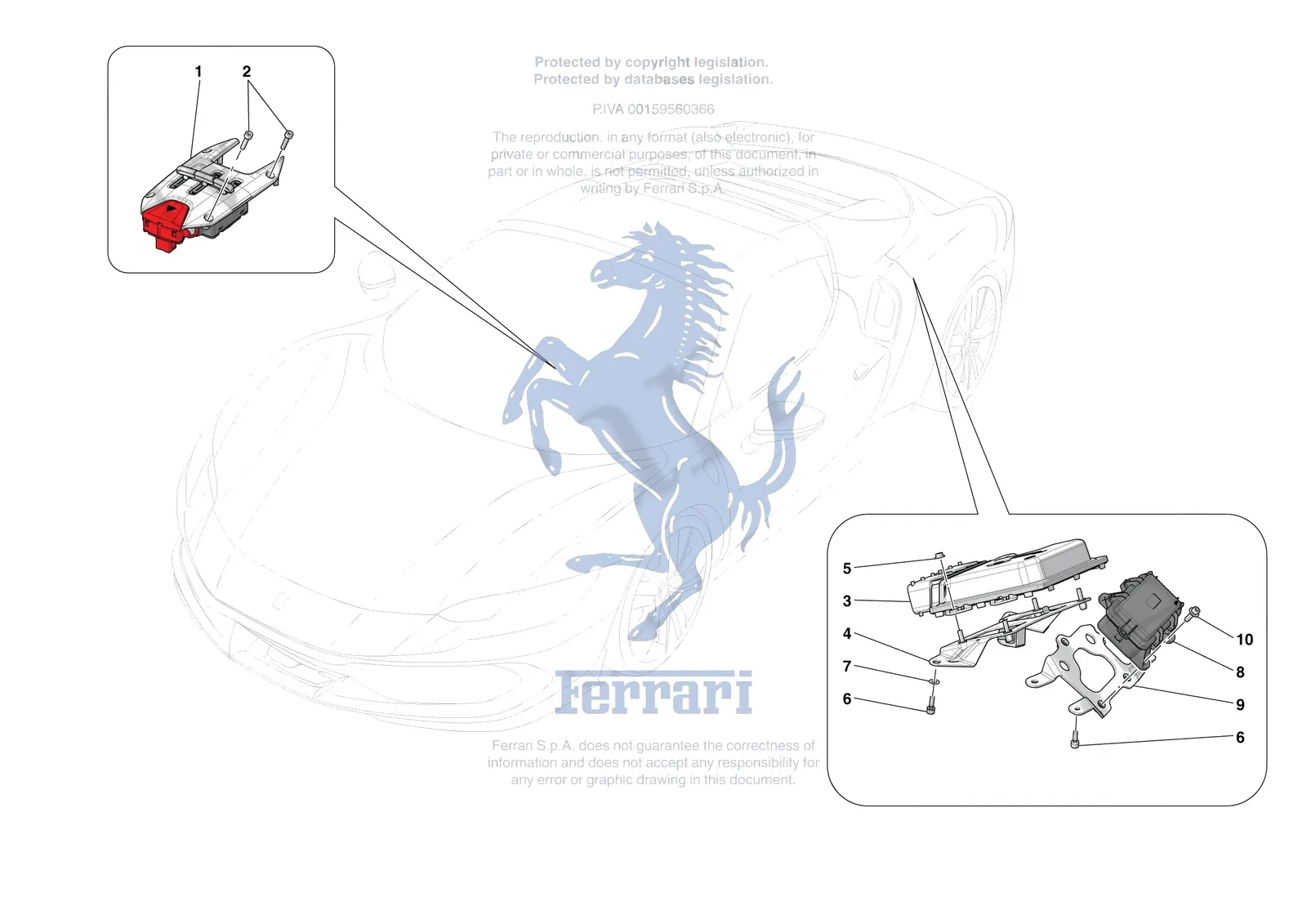

Exploded view of the [electrical system] - f.12 - dct gearbox system on the Ferrari 296 GTS, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0187.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 834197 | Ferrari Buffer Battery - 834197 | $678.46 | Special order, ships in 7-14 days | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 1 | 995641 | Ferrari Compl. Bridge - 995641 | $2,060.69 | Special order, ships in 7-14 days |
| 1 | 812162 | Ferrari Compl. Bridge. Brushed Finis - 812162 | $2,013.87 | Special order, ships in 7-14 days |
| 1 | 812163 | Ferrari Compl. Bridge. Brushed Finis - 812163 | Superseded | Order 996196 instead |
| 1 | 924116 | Ferrari Compl. Bridge. Brushed Finis - 924116 | Superseded | Order 996357 instead |
| 1 | 924122 | Ferrari Compl. Bridge. Brushed Finis - 924122 | Superseded | Order 995641 instead |
| 1 | 996196 | Ferrari Compl. Bridge. Brushed Finis - 996196 | $1,943.61 | Special order, ships in 7-14 days |
| 1 | 996354 | Ferrari Compl. Bridge. Brushed Finis - 996354 | $2,013.87 | Special order, ships in 7-14 days |
| 1 | 996357 | Ferrari Compl. Bridge. Brushed Finis - 996357 | $1,967.03 | Special order, ships in 7-14 days |
| 2 | 914293 | Ferrari Allen Head Bolt M4X16 - 914293 | $1.11 | Special order, ships in 7-14 days |
| 3 | 855811 | Ferrari DCT Gearbox ECU - Marelli - 855811 | $2,817.08 | Special order, ships in 7-14 days |
| 4 | 802096 | Ferrari Bracket - 802096 | $191.76 | Special order, ships in 7-14 days |
| 5 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 5 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 6 | 294780 | Ferrari Allen Head Bolt with Washer M5X16 - 294780 | $0.98 | Special order, ships in 7-14 days |
| 7 | 13579221 | Ferrari Washer 0.5mm - 13579221 | $1.02 | Available, ships in 3-6 days |
| 8 | 863817 | Ferrari Buffer Battery - 863817 | $677.50 | Special order, ships in 7-14 days |
| 9 | 782134 | Ferrari Buffer Battery Bracket - 782134 | $115.54 | Special order, ships in 7-14 days |
| 10 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
