Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS (diagram 0190)
Exploded view of the [electrical system] - f.15 - power electronics on the Ferrari 296 GTS, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

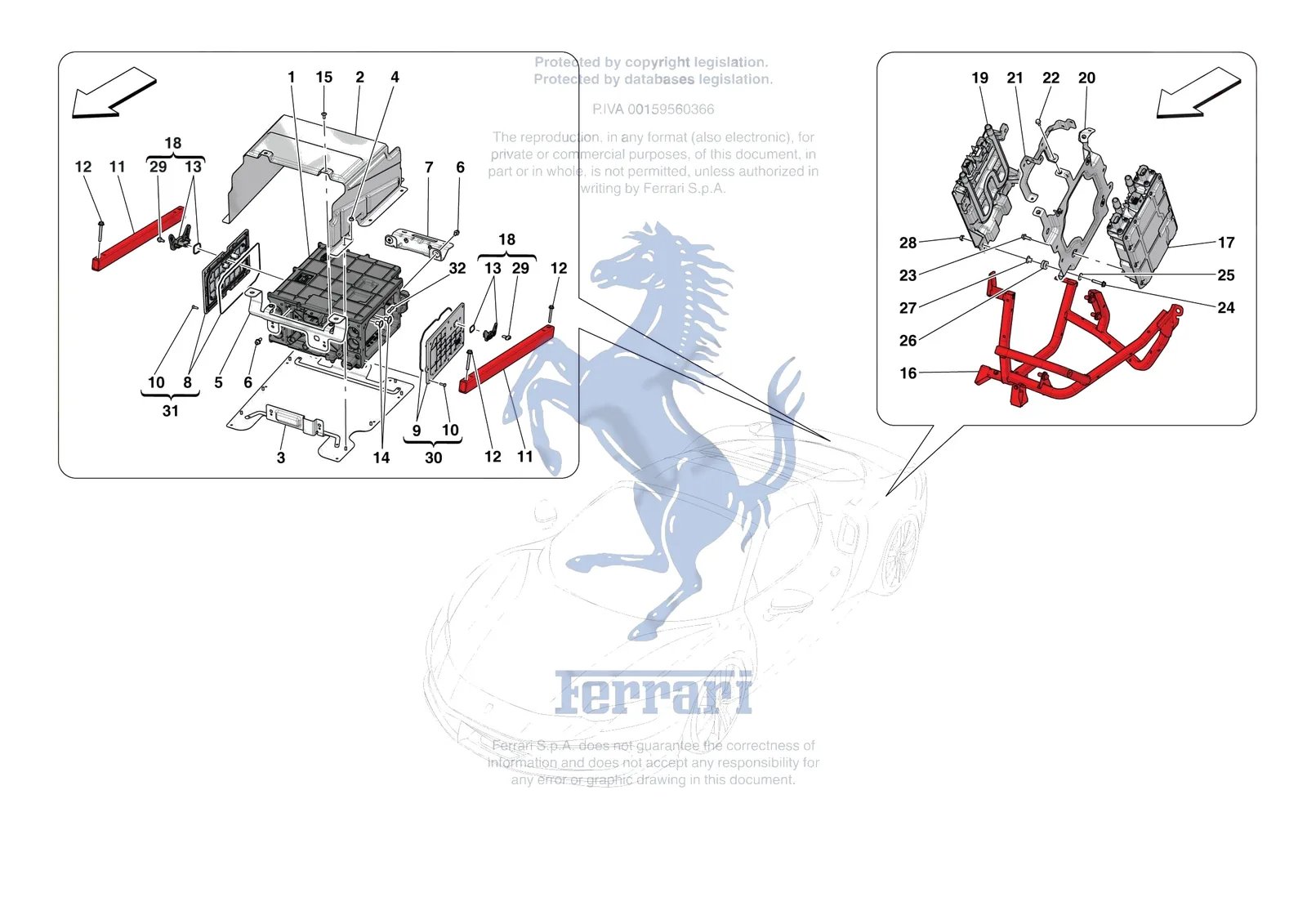

![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0190.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 55059612 | Ferrari LH Rear On-Board Charger Tre - 55059612 | $1,101.47 | Special order, ships in 7-14 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 805892 | Ferrari P2 Inverter Housing - 805892 | $13,333.78 | Special order, ships in 7-14 days |
| 2 | 982815 | Ferrari Upper Inverter Heat Shield - 982815 | $142.58 | Special order, ships in 7-14 days |
| 3 | 911764 | Ferrari Lower Inverter Heat Shield - 911764 | $319.62 | Special order, ships in 7-14 days |
| 3 | 982813 | Ferrari Lower Inverter Heat Shield - 982813 | Superseded | Order 911764 instead |
| 4 | 13046014 | Ferrari Nut - 13046014 | $0.63 | Special order, ships in 7-14 days |
| 5 | 982455 | Ferrari Front Inverter Bracket - 982455 | $167.17 | Special order, ships in 7-14 days |
| 6 | 323665 | Ferrari Allen Head Bolt with Washer M6X14 - 323665 | $0.63 | Special order, ships in 7-14 days |
| 7 | 982712 | Ferrari Rear Inverter Bracket - 982712 | $125.37 | Special order, ships in 7-14 days |
| 8 | 897596 | Ferrari Motor Inverter Cover with Gasket - 897596 | $174.55 | Special order, ships in 7-14 days |
| 9 | 871945 | Ferrari Battery Inverter Cover And Gasket - 871945 | $174.55 | Available, ships in 3-6 days |
| 10 | 10444624 | Ferrari Screw - 10444624 | $0.33 | Special order, ships in 7-14 days |
| 11 | 982763 | Ferrari Compl. Tubular Inverter Moun - 982763 | $270.44 | Special order, ships in 7-14 days |
| 12 | 13832611 | Ferrari Screw 6X45 - 13832611 | $1.94 | Available, ships in 3-6 days |
| 13 | 897647 | Ferrari HVIL Heater And Gasket - 897647 | $78.66 | Available, ships in 3-6 days |
| 14 | 935631 | Ferrari Torx Screw M8x12 - 935631 | $1.80 | Special order, ships in 7-14 days |
| 15 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 16 | 980685 | Ferrari LH Rear On-Board Charger Tre - 980685 | Superseded | Order 55059612 instead |
| 16 | 55042800 | Ferrari LH REAR ON-BOARD CHARGER TRELLIS FRAME - 55042800 | Price on request | Contact us for price and availability |
| 17 | 897402 | Ferrari On-Board Charger - 897402 | $9,678.35 | Special order, ships in 7-14 days |
| 18 | 70005180 | Ferrari Complete HVIL Kit - 70005180 | Price on request | Contact us for price and availability |
| 19 | 939193 | Ferrari DC/DC - On Board Charger - 939193 | $4,875.45 | Special order, ships in 7-14 days |
| 20 | 804605 | Ferrari Obc-Dcdc Bracket - 804605 | $417.97 | Special order, ships in 7-14 days |
| 21 | 791890 | Ferrari Obc-Dcdc Cable Fastener Brac - 791890 | $61.45 | Special order, ships in 7-14 days |
| 22 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 23 | 890771 | Ferrari Vite Autoformante Taptite M6 - 890771 | $1.48 | Special order, ships in 7-14 days |
| 24 | 13837017 | Ferrari Screw 6X30 - 13837017 | $7.19 | Special order, ships in 7-14 days |
| 25 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 26 | 177576 | Ferrari Cable Grommet - 177576 | $4.12 | Available, ships in 3-6 days |
| 27 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 28 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 29 | 898141 | Ferrari Vite Tbei Hvil Inverter - 898141 | $0.82 | Special order, ships in 7-14 days |
| 30 | 70005178 | Ferrari Battery Cable Cover Kit - 70005178 | Price on request | Contact us for price and availability |
| 31 | 70005179 | Ferrari Motor-P2 Inverter Cable Cover Kit - 70005179 | Price on request | Contact us for price and availability |
| 32 | 962100 | Ferrari 50A Fuse - 962100 | $368.79 | Special order, ships in 7-14 days |
