Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.16 - ADAS (diagram 0191)

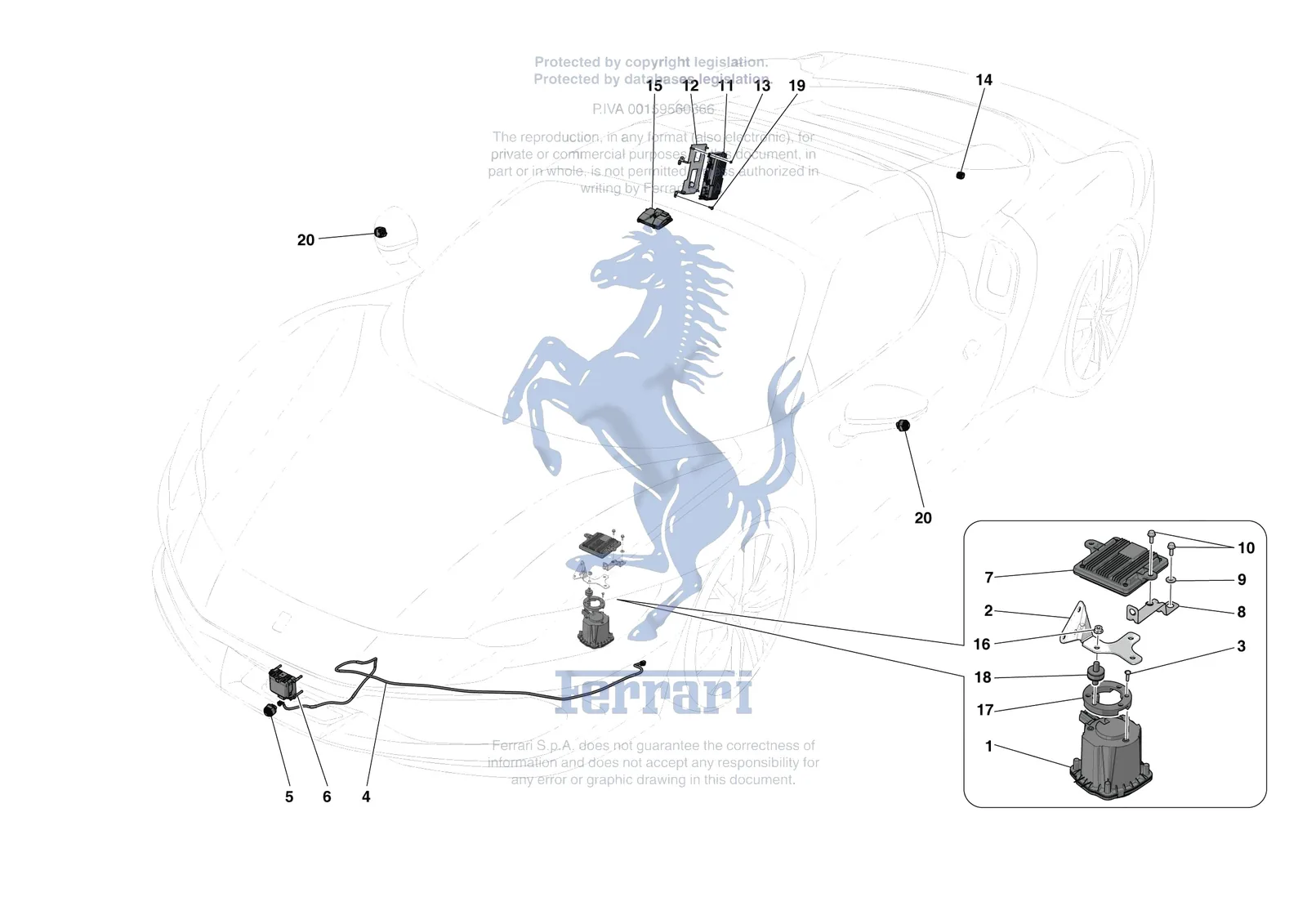

Exploded view of the [electrical system] - f.16 - adas on the Ferrari 296 GTS, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.16 - ADAS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0191.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 968689 | Ferrari Speaker Fastener Bracket - 968689 | Superseded | Order 885520 instead | |
| 1 | 936441 | Ferrari Altoparlante Avas New Gen - 936441 | $349.68 | Special order, ships in 7-14 days |
| 2 | 885520 | Ferrari Speaker Fastener Bracket - 885520 | $51.62 | Special order, ships in 7-14 days |
| 3 | 894055 | Ferrari Screw - 894055 | $0.50 | Special order, ships in 7-14 days |
| 4 | 959351 | Ferrari Front Bumper Camera Cable - 959351 | $189.31 | Special order, ships in 7-14 days |
| 5 | 818615 | Ferrari Surround Camera - 818615 | $1,967.03 | Special order, ships in 7-14 days |
| 5 | 990172 | Ferrari Surround Camera - 990172 | $1,943.61 | Special order, ships in 7-14 days |
| 6 | 817563 | Ferrari Medium Range Radar - 817563 | $2,341.71 | Special order, ships in 7-14 days |
| 6 | 956345 | Ferrari Medium Range Radar - 956345 | $2,341.71 | Special order, ships in 7-14 days |
| 7 | 971865 | Ferrari AVAS ECU - 971865 | $1,032.68 | Special order, ships in 7-14 days |
| 8 | 768958 | Ferrari Avas ECU Mounting Bracket - 768958 | $39.31 | Special order, ships in 7-14 days |
| 9 | 13577701 | Ferrari Washer 5.15 - 15 x 1.2 - 13577701 | $0.19 | Available, ships in 3-6 days |
| 10 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 11 | 55058989 | Ferrari Surround View Ecu - 55058989 | $7,273.38 | Special order, ships in 7-14 days |
| 11 | 799809 | Ferrari Surround View Ecu - 799809 | $5,027.67 | Special order, ships in 7-14 days |
| 11 | 987730 | Ferrari Surround View Ecu - 987730 | Superseded | Order 55058989 instead |
| 12 | 743259 | Ferrari Surround View ECU Bracket - 743259 | $86.04 | Special order, ships in 7-14 days |
| 13 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
| 14 | 852295 | Ferrari Rear Camera - 852295 | $2,248.03 | Special order, ships in 7-14 days |
| 15 | 777161 | Ferrari Cp2 Standard Camera - 777161 | $2,383.86 | Special order, ships in 7-14 days |
| 15 | 996047 | Ferrari Mpc Camera - 996047 | $2,515.00 | Special order, ships in 7-14 days |
| 16 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 17 | 943127 | Ferrari Speaker Bezel - 943127 | $29.48 | Special order, ships in 7-14 days |
| 18 | 225408 | Ferrari Cylindrical Bushing - 225408 | $12.99 | Special order, ships in 7-14 days |
| 19 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
