Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.19 - ELECTRIC MACHINE (diagram 0194)

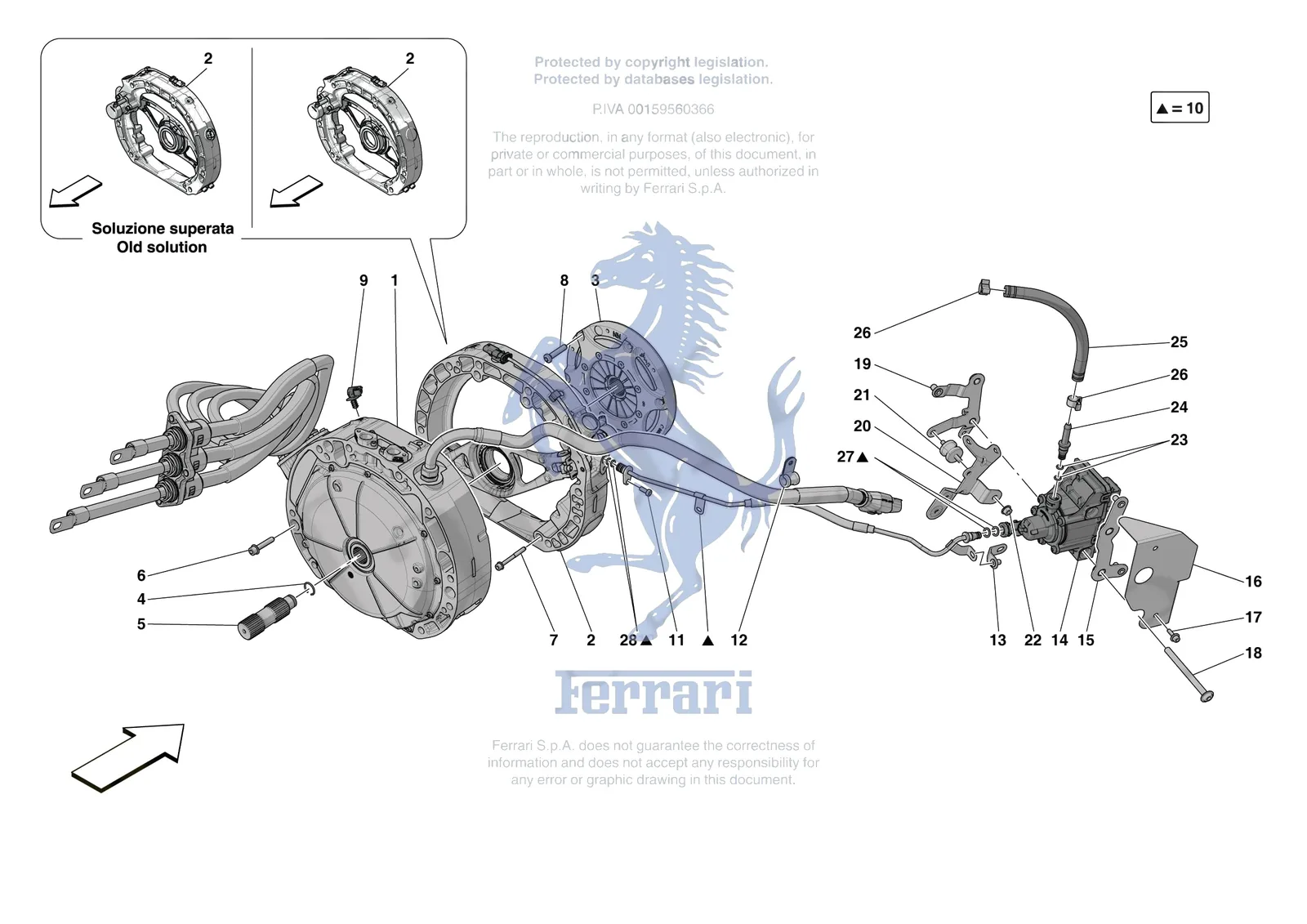

Exploded view of the [electrical system] - f.19 - electric machine on the Ferrari 296 GTS, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.19 - ELECTRIC MACHINE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0194.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 793225 | Ferrari Compl. Hydraulic Actuator Fl - 793225 | Superseded | Order 742168 instead | |
| 804791 | Ferrari Tubo Mca Cpl - 804791 | Superseded | Order 840352 instead | |
| 1 | 803852 | Ferrari P2 Electric Machine - 803852 | $12,099.55 | Contact us to order |
| 1 | 893656 | Ferrari P2 Electric Machine - 893656 | $12,042.71 | Contact us to order |
| 2 | 742168 | Ferrari Clutch Actuation System Hydraulic - 742168 | $8,324.81 | Special order, ships in 7-14 days |
| 2 | 749901 | Ferrari Compl. Hydraulic Actuator Fl - 749901 | Superseded | Order 742168 instead |
| 3 | 774482 | Ferrari Clutch Assembly - 774482 | $8,875.65 | Special order, ships in 7-14 days |
| 3 | 888936 | Ferrari Clutch Assembly - 888936 | Superseded | Order 774482 instead |
| 4 | 810755 | Ferrari Snap Ring - 810755 | $16.81 | Special order, ships in 7-14 days |
| 5 | 770526 | Ferrari Splined Shaft Between Electr - 770526 | $1,193.87 | Special order, ships in 7-14 days |
| 5 | 913477 | Ferrari Splined Shaft Between Electr - 913477 | Superseded | Order 770526 instead |
| 6 | 265097 | Ferrari Screw 8X40 - 265097 | $14.84 | Special order, ships in 7-14 days |
| 7 | 255494 | Ferrari Screw - 255494 | $18.76 | Available, ships in 3-6 days |
| 8 | 893495 | Ferrari Screw - 893495 | $6.31 | Special order, ships in 7-14 days |
| 9 | 899974 | Ferrari Pipe Mounting - 899974 | $2.82 | Special order, ships in 7-14 days |
| 10 | 840352 | Ferrari Tubo Mca Cpl - 840352 | $565.49 | Special order, ships in 7-14 days |
| 11 | 13026924 | Ferrari Screw 6x14 - 13026924 | $0.57 | Available, ships in 3-6 days |
| 12 | 868624 | Ferrari Bracket - 868624 | $5.14 | Special order, ships in 7-14 days |
| 13 | 794338 | Ferrari Modular Clutch Actuator Pipe - 794338 | $29.48 | Special order, ships in 7-14 days |
| 14 | 772760 | Ferrari Modular Clutch Actuator M4 - 772760 | Superseded | Order 990376 instead |
| 14 | 990376 | Ferrari Modular Clutch Actuator M4 - 990376 | $3,276.31 | Special order, ships in 7-14 days |
| 15 | 911154 | Ferrari Modular Clutch Actuator Shie - 911154 | $174.55 | Special order, ships in 7-14 days |
| 16 | 911155 | Ferrari Riparo Mca - 911155 | $49.14 | Special order, ships in 7-14 days |
| 17 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 18 | 749513 | Ferrari Screw - 749513 | $7.19 | Special order, ships in 7-14 days |
| 19 | 789364 | Ferrari Modular Clutch Actuator Brac - 789364 | $63.90 | Special order, ships in 7-14 days |
| 20 | 789478 | Ferrari Modular Clutch Actuator Brac - 789478 | $73.73 | Special order, ships in 7-14 days |
| 21 | 142202 | Ferrari Rubber Mount - 142202 | $15.95 | In stock |
| 22 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 23 | 925715 | Ferrari O Ring D.6.0 - 925715 | $1.02 | Available, ships in 3-6 days |
| 24 | 954484 | Ferrari Hydraulic Connector For Rubb - 954484 | $51.62 | Special order, ships in 7-14 days |
| 25 | 762612 | Ferrari Tubo Gomma D. 7-14X200 - 762612 | $39.31 | Special order, ships in 7-14 days |
| 26 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 28 | 923921 | Ferrari Gasket - 923921 | $32.76 | Available, ships in 3-6 days |
