Ferrari 308 GT4 Dino 1979 — Body Shell - Inner Elements (Usa 77 - Aus) (diagram 104)

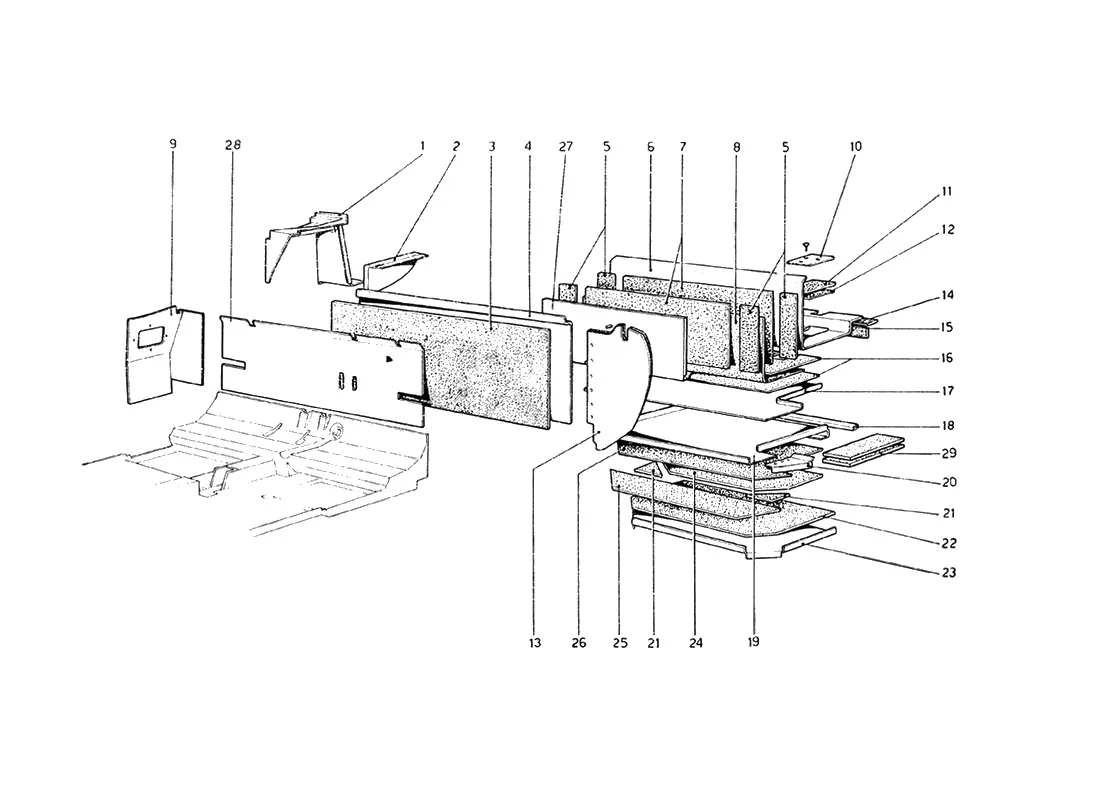

Exploded view of the body shell - inner elements (usa 77 - aus) on the Ferrari 308 GT4 Dino 1979, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 40225005 | Ferrari RH Housing - 40225005 | Price on request | Contact us for price and availability |
| 1 | 40225104 | Ferrari LH Housing - 40225104 | Price on request | Contact us for price and availability |
| 2 | 40225906 | Ferrari RH Side Panel - 40225906 | $215.61 | Available, ships in 3-6 days |
| 2 | 40226003 | Ferrari LH Side Panel - 40226003 | Price on request | Contact us for price and availability |
| 3 | 40355109 | Ferrari Insulation - 40355109 | Price on request | Contact us for price and availability |
| 4 | 40355000 | Ferrari Shield - 40355000 | $183.52 | Available, ships in 3-6 days |
| 4 | 40356503 | Ferrari Shield - 40356503 | $548.76 | Available, ships in 3-6 days |
| 5 | 40229403 | Ferrari Insulation - 40229403 | Price on request | Contact us for price and availability |
| 5 | 40337008 | Ferrari Insulation - 40337008 | Price on request | Contact us for price and availability |
| 6 | 40229502 | Ferrari Trunk Floor - 40229502 | $635.36 | Available, ships in 3-6 days |
| 6 | 40337206 | Ferrari Floor - 40337206 | $533.41 | Available, ships in 3-6 days |
| 6 | 60599200 | Ferrari Lower Floor - 60599200 | $520.85 | Available, ships in 3-6 days |
| 7 | 40229304 | Ferrari Insulation - 40229304 | Price on request | Contact us for price and availability |
| 7 | 40336901 | Ferrari Insulation - 40336901 | Price on request | Contact us for price and availability |
| 8 | 40229700 | Ferrari Insulation - 40229700 | Price on request | Contact us for price and availability |
| 8 | 40337107 | Ferrari Insulation - 40337107 | Price on request | Contact us for price and availability |
| 9 | 40378606 | Ferrari RH Shield - 40378606 | $72.07 | Available, ships in 3-6 days |
| 9 | 40378705 | Ferrari LH Shield - 40378705 | Price on request | Contact us for price and availability |
| 10 | 40230203 | Ferrari Small Cover - 40230203 | $21.52 | Available, ships in 3-6 days |
| 11 | 40226904 | Ferrari Insulation - 40226904 | Price on request | Contact us for price and availability |
| 12 | 40227001 | Ferrari Insulation - 40227001 | Price on request | Contact us for price and availability |
| 13 | 40226300 | Ferrari LH Shield - 40226300 | Price on request | Contact us for price and availability |
| 13 | 40226201 | Ferrari RH Shield - 40226201 | $271.99 | Available, ships in 3-6 days |
| 13 | 40376808 | Ferrari RH Wheel House - 40376808 | $212.79 | Available, ships in 3-6 days |
| 14 | 40230005 | Ferrari Insulation - 40230005 | Price on request | Contact us for price and availability |
| 15 | 40230104 | Ferrari Insulation - 40230104 | Price on request | Contact us for price and availability |
| 16 | 40229601 | Ferrari Insulation - 40229601 | Price on request | Contact us for price and availability |
| 16 | 40337602 | Ferrari Insulation - 40337602 | Price on request | Contact us for price and availability |
| 16 | 40369100 | Ferrari Insulation - 40369100 | Price on request | Contact us for price and availability |
| 17 | 40229809 | Ferrari Lower Floor - 40229809 | $339.33 | Available, ships in 3-6 days |
| 17 | 40335903 | Ferrari Shield - 40335903 | $219.82 | Available, ships in 3-6 days |
| 17 | 60599000 | Ferrari Shield - 60599000 | $303.02 | Available, ships in 3-6 days |
| 18 | 40229205 | Ferrari Crossmember - 40229205 | $29.90 | Available, ships in 3-6 days |
| 19 | 40224107 | Ferrari Upper Panel - 40224107 | $194.68 | Available, ships in 3-6 days |
| 19 | 40336000 | Ferrari Shield - 40336000 | $186.01 | Available, ships in 3-6 days |
| 20 | 40225807 | Ferrari LH Panel - 40225807 | Price on request | Contact us for price and availability |
| 20 | 40225708 | Ferrari RH Panel - 40225708 | Price on request | Contact us for price and availability |
| 21 | 40224404 | Ferrari Insulation - 40224404 | Price on request | Contact us for price and availability |
| 22 | 40224602 | Ferrari Insulation - 40224602 | Price on request | Contact us for price and availability |
| 22 | 40336109 | Ferrari Insulation - 40336109 | Price on request | Contact us for price and availability |
| 23 | 40224701 | Ferrari Boot Floor Panel - 40224701 | $207.27 | Available, ships in 3-6 days |
| 24 | 40224305 | Ferrari Insulation - 40224305 | Price on request | Contact us for price and availability |
| 24 | 40336208 | Ferrari Insulation - 40336208 | Price on request | Contact us for price and availability |
| 25 | 40224503 | Ferrari Insulation - 40224503 | Price on request | Contact us for price and availability |
| 26 | 40224206 | Ferrari Insulation - 40224206 | Price on request | Contact us for price and availability |
| 27 | 40377004 | Ferrari Shield - 40377004 | $77.13 | Available, ships in 3-6 days |
| 27 | 60584000 | Ferrari Shield - 60584000 | $71.78 | Available, ships in 3-6 days |
| 28 | 40354607 | Ferrari Shield - 40354607 | $420.31 | Available, ships in 3-6 days |
| 29 | 40337701 | Ferrari Insulation - 40337701 | Price on request | Contact us for price and availability |
