Ferrari 308 Quattrovalvole — Fuel Injection System - Fuel Distributors, Lines (diagram 010)

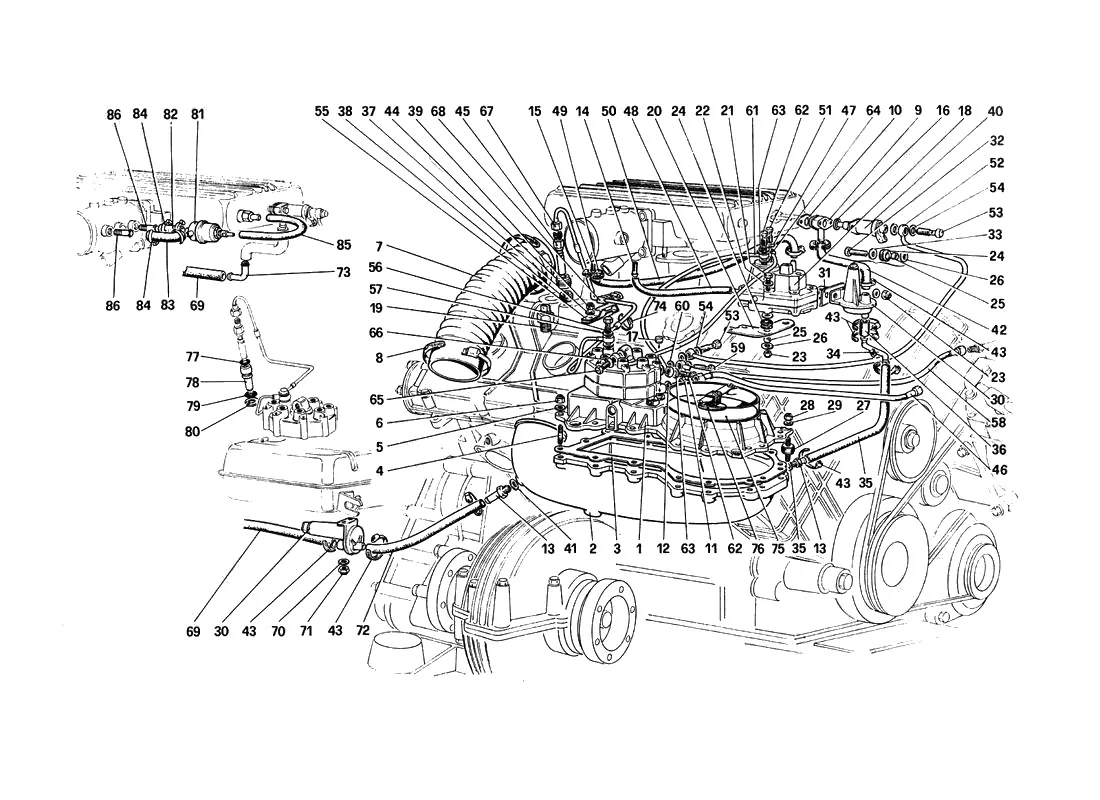

Exploded view of the fuel injection system - fuel distributors, lines on the Ferrari 308 Quattrovalvole, with 122 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 308 Quattrovalvole Fuel Injection System - Fuel Distributors, Lines exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1115329Ferrari 308I Fuel Dist Assy cpl with Support - 115329$4.33Available, ships in 3-6 days
1115329/OFerrari Fuel Dist HeadO-Ring - 115329/O$4.29Available, ships in 3-6 days
2118070Ferrari Fuel Meter Head Support - 118070$508.26Available, ships in 3-6 days
2115219Ferrari Injection Head Support - 115219$508.26Available, ships in 3-6 days
2120361Ferrari Fuel Meter Head Support - 120361$423.07Available, ships in 3-6 days
2120261Ferrari Injection Head Support - 120261SupersededOrder 120361 instead
3135096Ferrari Fuel Distributor Gasket - 135096$13.20In stock
3115011Ferrari Gasket - 115011SupersededOrder 135096 instead
413541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
413541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
512601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
512601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
6102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
612574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
7118310Ferrari 308 QV/328 Air Intake Pipe - 118310$263.99In stock
812174990Ferrari Air Intake Hose Clamp - 12174990$3.30In stock
9115004Ferrari Union - 115004$5.77Available, ships in 3-6 days
10147720Ferrari 308/328/Mondial Fuel Injection Gasket - 147720$3.85In stock
10115005Ferrari Gasket - 115005SupersededOrder 147720 instead
11115498Ferrari Filtered Union - 115498Price on requestContact us for price and availability
1211270160Ferrari Gasket - 11270160$3.26Available, ships in 3-6 days
13116860Ferrari Threaded union - 116860$33.18Available, ships in 3-6 days
14113637Ferrari Threaded union - 113637Price on requestContact us for price and availability
15113652Ferrari Threaded Union - 113652Price on requestContact us for price and availability
16103039Ferrari O-Ring - 103039$1.65In stock
17115650Ferrari Safety Cap - 115650$8.45Available, ships in 3-6 days
18118585Ferrari Warm Up Regulator - 118585Price on requestContact us for price and availability
18119825Ferrari Warm Up Regulator - 119825$5,865.38Special order, ships in 7-14 days
19113980Ferrari Cold Start Thermo Switch - 113980$549.86In stock
19113980/AFerrari Cold Start Thermo Switch - 113980/A$580.10Available, ships in 3-6 days
20118291Ferrari Support - 118291$18.36Available, ships in 3-6 days
2110903821Ferrari Bolt 6 x 65 - 10903821SupersededOrder 10903834 instead
2110903834Ferrari Screw M6 x 60 - 10903834$13.11Available, ships in 3-6 days
2212604274Ferrari Wavy Washer 6mm - 12604274$0.12Available, ships in 3-6 days
2212604271Ferrari Washer - 12604271SupersededOrder 12604274 instead
24103549Ferrari Grommet - 103549$2.80In stock
25103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
2612643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
27102947Ferrari Vibration Dampening Support - 102947$8.31In stock
28102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
2812575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
2912640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
2912640601Ferrari Plain Washer 6mm - 12640601SupersededOrder 12640624 instead
30113974Ferrari Aux Air Valve - 113974$1,300.09Available, ships in 3-6 days
31118292Ferrari Support - 118292$14.85Available, ships in 3-6 days
3210902621Ferrari Bolt M6 x 25 - 10902621$0.17Available, ships in 3-6 days
34116307Ferrari Tube - 116307Price on requestContact us for price and availability
35116306Ferrari Tube - 116306Price on requestContact us for price and availability
36125771Ferrari Auxiliary Air Valve Hose - 125771$17.05In stock
36115407Ferrari Rubber Hose - 115407SupersededOrder 125771 instead
3711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
3711197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
38114661Ferrari 308/Mondial Fuel Injector Seal - 114661$9.50In stock
40115739Ferrari Start Injection Valve - 115739Price on requestContact us for price and availability
4110280060Ferrari/Maserati Copper Washer - 10280060$1.93In stock
42115226Ferrari Tube - 115226Price on requestContact us for price and availability
4312179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
4313000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
44114660Ferrari Nozzle Holder Bushing - 114660$119.21In stock
45113975Ferrari Fuel Injector - 113975$60.50In stock
46117885Ferrari Fuel Hose - 117885$106.59In stock
4710260160Ferrari Copper Washer D. 10 - 14 x 1 - 10260160$1.99Available, ships in 3-6 days
48115002Ferrari Tube - 115002$18.44Special order, ships in 7-14 days
4912179190Ferrari Clip - 12179190Price on requestContact us for price and availability
50118293Ferrari Tube - 118293Price on requestContact us for price and availability
51113670Ferrari Banjo Bolt - 113670$120.35Special order, ships in 7-14 days
52115753Ferrari Pipe Incorrect Part Number - 115753Price on requestContact us for price and availability
53113664Ferrari Banjo Bolt - 113664Price on requestContact us for price and availability
5414330260Ferrari Copper Washer - 14330260$2.01Available, ships in 3-6 days
55115417Ferrari Bracket - 115417Price on requestContact us for price and availability
58118393Ferrari Fuel Pipe - 118393Price on requestContact us for price and availability
59111644Ferrari Banjo Bolt - 111644Price on requestContact us for price and availability
60113910Ferrari Washer 12.25 - 15.5 x 1.5 - 113910$1.67Available, ships in 3-6 days
61118398Ferrari Tube - 118398Price on requestContact us for price and availability
64115507Ferrari Fuel Pipe - 115507Price on requestContact us for price and availability
67118592Ferrari Fuel Tube to Cylinder 3 - 118592Price on requestContact us for price and availability
67118590Ferrari Fuel Tube to Cylinder 1 - 118590Price on requestContact us for price and availability
67118591Ferrari Fuel Tube to Cylinder 2 - 118591Price on requestContact us for price and availability
67118593Ferrari Fuel Tube to Cylinder 4 - 118593Price on requestContact us for price and availability
67118594Ferrari Fuel Tube to Cylinder 5 - 118594Price on requestContact us for price and availability
67118595Ferrari Fuel Tube to Cylinder 6 - 118595Price on requestContact us for price and availability
67118596Ferrari Fuel Tube to Cylinder 7 - 118596Price on requestContact us for price and availability
67118597Ferrari Fuel Tube to Cylinder 8 - 118597Price on requestContact us for price and availability
68113896Fuel Injection Pipe Retainer - 113896$6.40In stock
68115595Ferrari 4-Way Fuel Injection Pipe Retainer - 115595$10.54Available, ships in 3-6 days
68117279Ferrari 2-Way Fuel Injection Pipe Retainer - 117279SupersededOrder 113896 instead
68115418Ferrari 4-Way Pipe Retainer - 115418SupersededOrder 115595 instead
69120801Ferrari Tube - 120801Price on requestContact us for price and availability
72117548Ferrari Fan Conveyor - 117548$190.44Special order, ships in 7-14 days
73120188Ferrari Tube - 120188Price on requestContact us for price and availability
74110381Ferrari Cable Tie D1.6-16mm 100mm - 110381$0.17Available, ships in 3-6 days
74111193Ferrari Cable Tie 135mm - 111193SupersededOrder 14560187 instead
7414560187Ferrari Cable tie 135mm - 14560187$0.34Available, ships in 3-6 days
75120812Ferrari Pad - 120812$123.17Available, ships in 3-6 days
76120809Ferrari Supporting Washer - 120809Price on requestContact us for price and availability
77113570Ferrari Fuel Injector O-Ring - 113570$3.03In stock
78113309Ferrari Fuel Injector Carrier - 113309$134.15In stock
79101031Ferrari O-Ring - 101031$1.31In stock
80103226Ferrari Self Lubricating Bush - 103226$15.53Available, ships in 3-6 days
81117646Ferrari By-Pass Valve - 117646$377.72Special order, ships in 7-14 days
82115230Ferrari Vacuum Valve Hose - 115230$28.60In stock
83115227Ferrari Vacuum Valve Hose - 115227$28.60In stock
85115149Ferrari Rubber Tube D. 3.5 - 8 x 150 - 115149$64.00Special order, ships in 7-14 days
86112030Ferrari Union - 112030$15.21Available, ships in 3-6 days
125880Ferrari Auxiliary Air Valve - 125880Price on requestContact us for price and availability
123717Ferrari Auxiliary Air Valve Hose - 123717$16.34In stock
102604Ferrari Clip - 102604Price on requestContact us for price and availability
40135402Ferrari Clip D6-30mm - 40135402SupersededOrder 14560187 instead
115205Ferrari Fuel Pipe - 115205Price on requestContact us for price and availability
103403Ferrari Gasket - 103403SupersededOrder 10280060 instead
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
157934Ferrari Jubilee Clip - 157934Price on requestContact us for price and availability
102007Ferrari Mounting - 102007SupersededOrder 102947 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
114481Ferrari Safety Cap - 114481SupersededOrder 115650 instead
166486Ferrari Safety Plug - 166486SupersededOrder 115650 instead
137581Ferrari Union - 137581SupersededOrder 113670 instead
100501Ferrari Washer - 100501SupersededOrder 10280060 instead
100511Ferrari Washer - 100511SupersededOrder 10280060 instead
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
95108Ferrari Washer - 95108SupersededOrder 10280060 instead
