Ferrari 308 Quattrovalvole — Body Shell - Inner Elements (diagram 103)

Exploded view of the body shell - inner elements on the Ferrari 308 Quattrovalvole, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

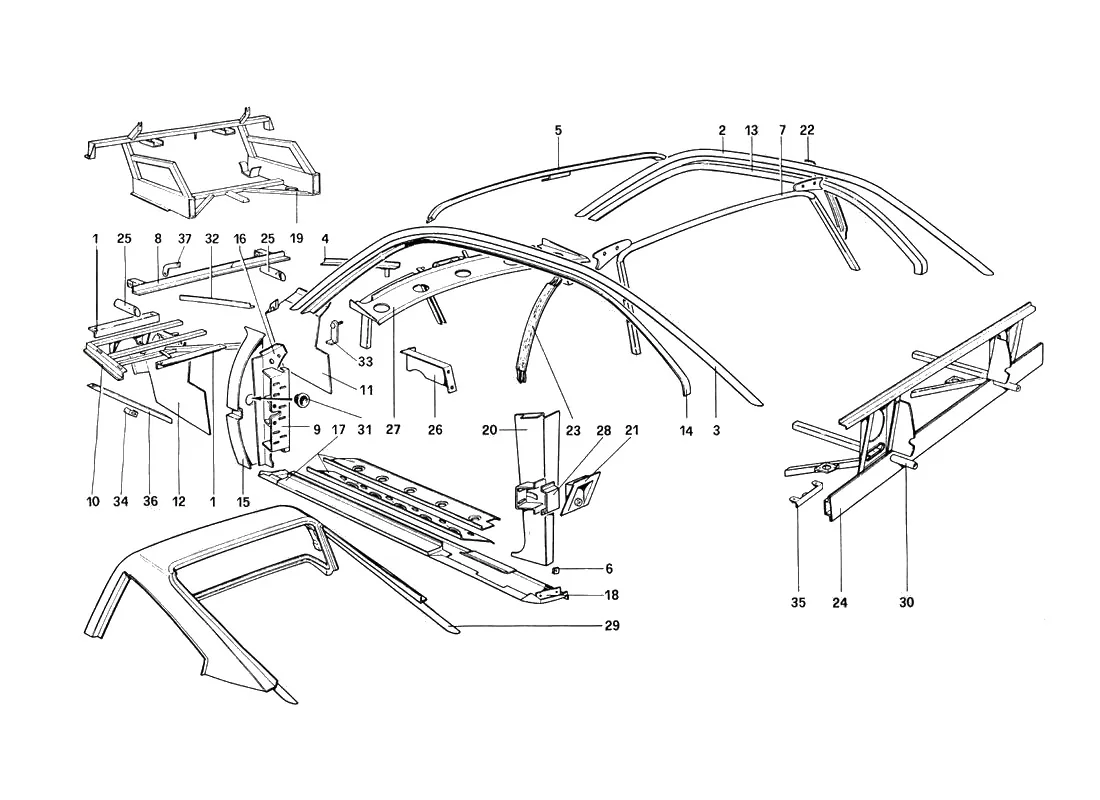

Ferrari 308 Quattrovalvole Body Shell - Inner Elements exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160652200Ferrari Bracket - 60652200$57.60Available, ships in 3-6 days
261010000Ferrari RH Roof Frame Tubing GTB - 61010000$168.15Available, ships in 3-6 days
361010100Ferrari LH Roof Frame Tubing GTB - 61010100$196.57Special order, ships in 7-14 days
460350006Ferrari RH Stiffening LHD - 60350006$41.69Available, ships in 3-6 days
460350204Ferrari RH Stiffening RHD - 60350204$25.99Available, ships in 3-6 days
560371309Ferrari Roof Support Rail GTB - 60371309$348.55Available, ships in 3-6 days
660361801Ferrari Clip - 60361801Price on requestContact us for price and availability
760296001Ferrari Roll Bar - 60296001$167.13Available, ships in 3-6 days
860301504Ferrari Front Frame - 60301504Price on requestContact us for price and availability
960285202Ferrari Bracket - 60285202$152.24Available, ships in 3-6 days
1060651800Ferrari RH Front Space Frame GTB - 60651800Price on requestContact us for price and availability
1060651900Ferrari LH Front Space Frame GTB - 60651900Price on requestContact us for price and availability
1161181900Ferrari Rh Radiator Shield LHD - 61181900$81.82Available, ships in 3-6 days
1161182100Ferrari RH Radiator Shield RHD - 61182100$88.86Available, ships in 3-6 days
1260304201Ferrari LH Radiator Shield LHD - 60304201Price on requestContact us for price and availability
1260348802Ferrari LH Radiator Shield RHD - 60348802$53.11Available, ships in 3-6 days
1360260106Ferrari RH Rail GTB - 60260106$186.99Available, ships in 3-6 days
1460260007Ferrari LH Rail GTB - 60260007Price on requestContact us for price and availability
1560252400Ferrari RH Door Hinge Post - 60252400$62.60Available, ships in 3-6 days
1560252509Ferrari LH Door Hinge Post - 60252509Price on requestContact us for price and availability
1660397106Ferrari RH Pillar Insert GTS - 60397106$58.57Available, ships in 3-6 days
1660397205Ferrari LH Pillar Insert GTS - 60397205$53.97Available, ships in 3-6 days
1661009800Ferrari RH Pillar Insert GTB - 61009800SupersededOrder 60397106 instead
1661009900Ferrari LH Pillar Insert GTB - 61009900SupersededOrder 60397205 instead
1760303203Ferrari RH Door Sill Assy GTB - 60303203Price on requestContact us for price and availability
1760303302Ferrari LH Door Sill Assy GTB - 60303302Price on requestContact us for price and availability
1760419504Ferrari RH Door Sill Assy GTS - 60419504Price on requestContact us for price and availability
1760419603Ferrari LH Door Sill Assy GTS - 60419603Price on requestContact us for price and availability
1860003803Ferrari RH Outer Sill Panel - 60003803Price on requestContact us for price and availability
1860003902Ferrari LH Outer Sill Panel - 60003902Price on requestContact us for price and availability
1995406068Ferrari Front Chassis Section 85 308Qv - 95406068Price on requestContact us for price and availability
2060302403Ferrari RH Panel GTB - 60302403$198.83Available, ships in 3-6 days
2060421203Ferrari RH Panel GTS - 60421203$119.25Available, ships in 3-6 days
2060302304Ferrari LH Panel GTB - 60302304Price on requestContact us for price and availability
2060421302Ferrari LH Panel GTS - 60421302$98.84Available, ships in 3-6 days
2160347705Ferrari Support - 60347705$45.56Available, ships in 3-6 days
2260260403Ferrari RH Upright Panel GTB - 60260403$136.58Available, ships in 3-6 days
2360260502Ferrari LH Upright Panel GTB - 60260502$453.58Available, ships in 3-6 days
2461192500Ferrari Rear Frame LHD - 61192500$1,241.83Available, ships in 3-6 days
2461194500Ferrari Rear Frame RHD - 61194500$1,072.39Available, ships in 3-6 days
2560118908Ferrari Bumper Iron Tube - 60118908$21.81Available, ships in 3-6 days
2660106903Ferrari Support LHD - 60106903Price on requestContact us for price and availability
2660193109Ferrari Support RHD - 60193109$42.82Special order, ships in 7-14 days
2760351103Ferrari Reinforcement RHD - 60351103$393.78Available, ships in 3-6 days
2760351003Ferrari Frame LHD - 60351003Price on requestContact us for price and availability
2860302601Ferrari Plate - 60302601$14.32Available, ships in 3-6 days
2960879800Ferrari Top Assy GTS - 60879800$2,666.94Available, ships in 3-6 days
2961010500Ferrari Roof Frame Assy GTB - 61010500$1,629.47Available, ships in 3-6 days
2961128800Ferrari Roof Assy GTS - 61128800SupersededOrder 60879800 instead
3060064508Ferrari Bumper Iron Tube - 60064508$73.60Available, ships in 3-6 days
3160284304Ferrari Plug - 60284304$9.32Available, ships in 3-6 days
3260397908Ferrari LH Stiffening LHD - 60397908$27.66Available, ships in 3-6 days
3260350402Ferrari LH Stiffening RHD - 60350402$87.17Available, ships in 3-6 days
3361181300Ferrari Bracket - 61181300$9.85Special order, ships in 7-14 days
3361189000Ferrari Bracket - 61189000$27.41Available, ships in 3-6 days
3460289303Ferrari Support - 60289303$9.85Available, ships in 3-6 days
3561176200Ferrari Bracket - 61176200$18.44Available, ships in 3-6 days
3660064201Ferrari Space Frame Support - 60064201$32.66Available, ships in 3-6 days
3761181400Ferrari Bracket - 61181400$6.77Available, ships in 3-6 days
60252500Ferrari Hinge Post LH Door - 60252500Price on requestContact us for price and availability
61009700Ferrari LH Panel GTB - 61009700Price on requestContact us for price and availability
60260304Ferrari LH Roof Frame Tubing GTB - 60260304Price on requestContact us for price and availability
60295300Ferrari LH Side GTB - 60295300Price on requestContact us for price and availability
61009600Ferrari RH Panel GTB - 61009600Price on requestContact us for price and availability
60260205Ferrari RH Roof Frame Tubing GTB - 60260205$279.24Available, ships in 3-6 days

All 308 Quattrovalvole diagrams
