Ferrari 328 GTB/GTS (1985) — Air Injection (For U.S. Version) (diagram 009)

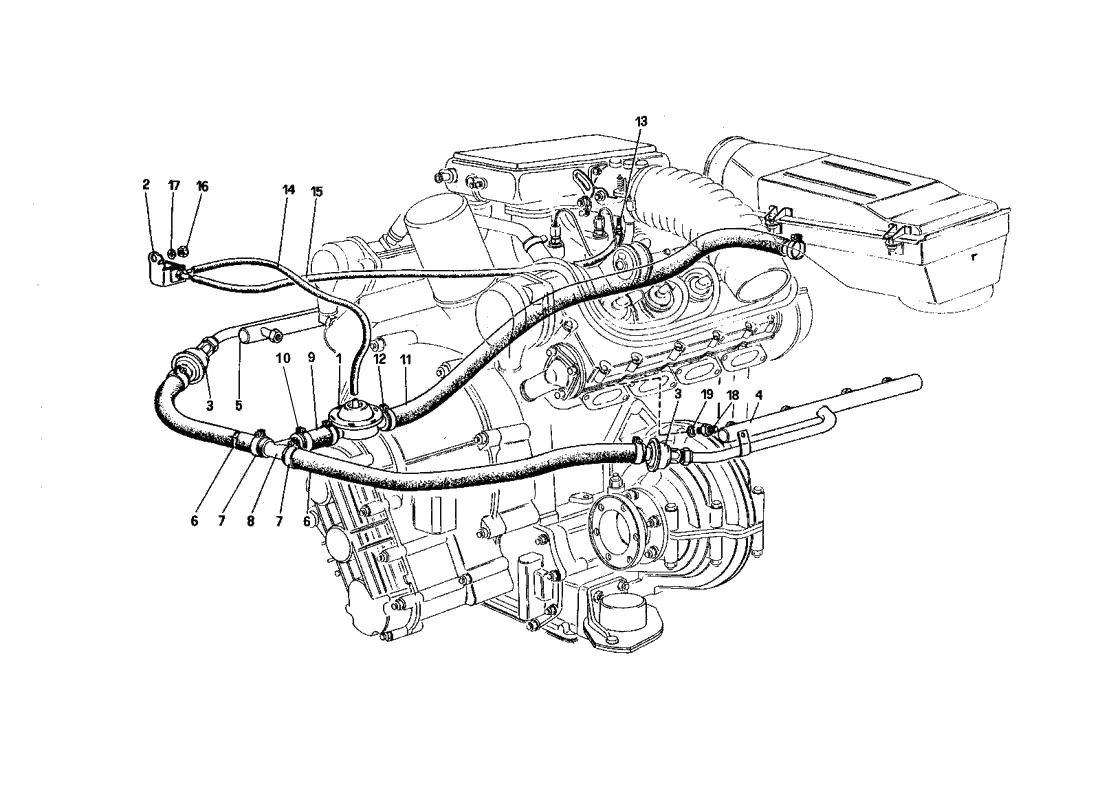

Exploded view of the air injection (for u.s. version) on the Ferrari 328 GTB/GTS (1985), with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/009.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 121751 | Ferrari Cut-Off Valve - 121751 | Price on request | Contact us for price and availability |
| 2 | 111704 | Ferrari Vacuum Control Valve - 111704 | $235.29 | In stock |
| 2 | 129059 | Ferrari Solenoid Valve - 129059 | Superseded | Order 111704 instead |
| 3 | 121769 | Ferrari Single Check Valve - 121769 | Price on request | Contact us for price and availability |
| 4 | 121808 | Ferrari Tube - 121808 | $632.50 | In stock |
| 5 | 121783 | Ferrari Tube - 121783 | $734.58 | Available, ships in 3-6 days |
| 6 | 121825 | Ferrari Tube - 121825 | Price on request | Contact us for price and availability |
| 7 | 10176190 | Ferrari Clamp - 10176190 | $2.82 | Special order, ships in 7-14 days |
| 8 | 109887 | Ferrari T Piece Union - 109887 | Price on request | Contact us for price and availability |
| 9 | 116783A | Ferrari Oil Breather Hose - 116783A | $28.85 | In stock |
| 11 | 121826 | Ferrari 308 QV/328 Air Injection Hose - 121826 | $27.20 | In stock |
| 13 | 113637 | Ferrari Threaded union - 113637 | Price on request | Contact us for price and availability |
| 14 | 118502 | Ferrari Rubber Pipe - 118502 | $98.46 | Special order, ships in 7-14 days |
| 15 | 117170 | Ferrari Vacuum Hose - 117170 | $11.18 | In stock |
| 16 | 104030 | Ferrari/Maserati Nut - 104030 | $0.88 | In stock |
| 16 | 16104111 | Ferrari Nut - 16104111 | Superseded | Order 104030 instead |
| 17 | 14496501 | Ferrari Washer - 14496501 | Price on request | Contact us for price and availability |
| 18 | 121718 | Ferrari Union - 121718 | $169.93 | Available, ships in 3-6 days |
| 19 | 10257060 | Ferrari/Maserati Copper Washer - 10257060 | $1.10 | In stock |
| 147390 | Ferrari Air Injection Cut Off Valve - 147390 | $577.11 | In stock | |
| 10261460 | Ferrari Copper Washer 16x24x1.5 - 10261460 | $0.63 | Available, ships in 3-6 days | |
| 148494 | Ferrari Emissions Check Valve - 148494 | $82.50 | In stock | |
| 16104125 | Ferrari Nut - 16104125 | Superseded | Order 104030 instead | |
| 115148 | Ferrari Pipe - 115148 | Superseded | Order 118502 instead | |
| 121829 | Ferrari Tube - 121829 | Superseded | Order 118502 instead |
