Ferrari 328 GTB/GTS (1985) — Blow - By System (diagram 019)

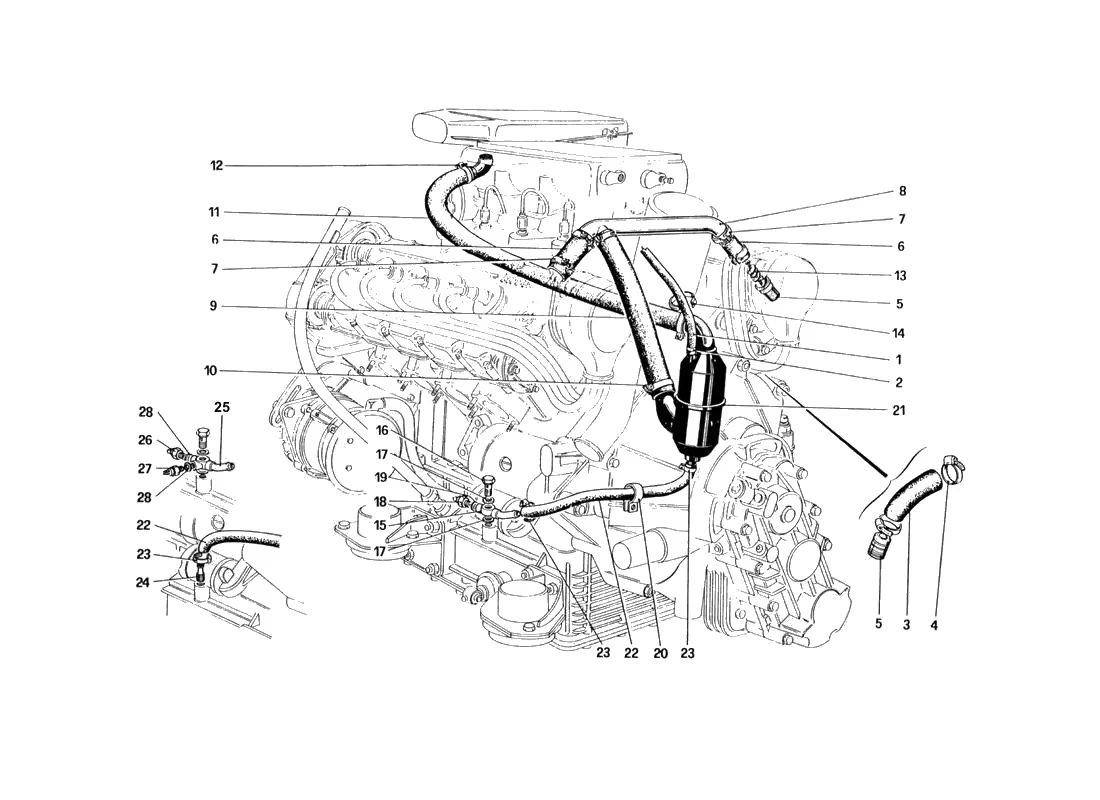

Exploded view of the blow - by system on the Ferrari 328 GTB/GTS (1985), with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/019.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 111199 | Ferrari Hose - 111199 | $54.54 | Available, ships in 3-6 days |
| 1 | 129109 | Ferrari Hose - 129109 | Price on request | Contact us for price and availability |
| 2 | 157990 | Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990 | $4.14 | Available, ships in 3-6 days |
| 2 | 12179090 | Ferrari Clip - 12179090 | Superseded | Order 157990 instead |
| 3 | 118216 | Ferrari Hose - 118216 | $105.00 | Available, ships in 3-6 days |
| 4 | 10176290 | Ferrari Clamp - 10176290 | Price on request | Contact us for price and availability |
| 5 | 119236 | Ferrari Oil Breather Union - 119236 | $19.42 | Available, ships in 3-6 days |
| 6 | 116783A | Ferrari Oil Breather Hose - 116783A | $28.85 | In stock |
| 7 | 10176190 | Ferrari Clamp - 10176190 | $2.82 | Special order, ships in 7-14 days |
| 8 | 118312 | Ferrari Tube - 118312 | $300.78 | Available, ships in 3-6 days |
| 9 | 118958 | Ferrari Oil Breather Hose - 118958 | $85.14 | Available, ships in 3-6 days |
| 9 | 118958/A | Ferrari Braided Breather Hose Kit - 118958/A | $84.64 | Available, ships in 3-6 days |
| 11 | 118959 | Ferrari Oil Breather Hose - 118959 | $176.33 | Available, ships in 3-6 days |
| 13 | 119237 | Ferrari Oil Splash Screen - 119237 | Price on request | Contact us for price and availability |
| 14 | 14560287 | Ferrari Clamp - 14560287 | Price on request | Contact us for price and availability |
| 15 | 121842 | Ferrari Union - 121842 | $158.55 | Available, ships in 3-6 days |
| 16 | 121424 | Ferrari Union - 121424 | $17.90 | Available, ships in 3-6 days |
| 17 | 10282460 | Ferrari Copper Washer -10282460 | $1.38 | In stock |
| 18 | 115652 | Ferrari Coolant Temperature Switch-115652 | $75.74 | In stock |
| 19 | 10260060 | Ferrari Copper Washer - 10260060 | $1.80 | Available, ships in 3-6 days |
| 20 | 10450490 | Ferrari Bracket P Clip16mm - 10450490 | $1.04 | Available, ships in 3-6 days |
| 21 | 128532 | Ferrari Oil Vapour Seperator - 128532 | Price on request | Contact us for price and availability |
| 22 | 108099 | Ferrari 208/308 Blowby Hose - 108099 | $46.20 | In stock |
| 22 | 106338 | Ferrari Hose - 106338 | $74.19 | Available, ships in 3-6 days |
| 23 | 13000190 | Ferrari Hose Clip 10-16mm - 13000190 | $1.09 | Available, ships in 3-6 days |
| 23 | 12179490 | Ferrari Hose Clip - 12179490 | Superseded | Order 13000190 instead |
| 24 | 115934 | Ferrari Union - 115934 | Price on request | Contact us for price and availability |
| 25 | 129650 | Ferrari Union Ver/Ch - 129650 | $115.94 | Available, ships in 3-6 days |
| 26 | 125857 | Ferrari Oil Temperature Switch-125857 | $53.90 | Contact us |
| 27 | 127155 | Ferrari Thermocontact - 127155 | $18.32 | In stock |
| 10168590 | Ferrari Clip - 10168590 | Superseded | Order 13000190 instead | |
| 102721 | Ferrari Clip - 102721 | Superseded | Order 157990 instead | |
| 104879 | Ferrari Clip - 104879 | Superseded | Order 13000190 instead | |
| 12179690 | Ferrari Hose Clip - 12179690 | Superseded | Order 13000190 instead | |
| 111211 | Ferrari Pipe - 111211 | Price on request | Contact us for price and availability |
