Ferrari 328 GTB/GTS (1985) — Main Shaft Gears (diagram 026)

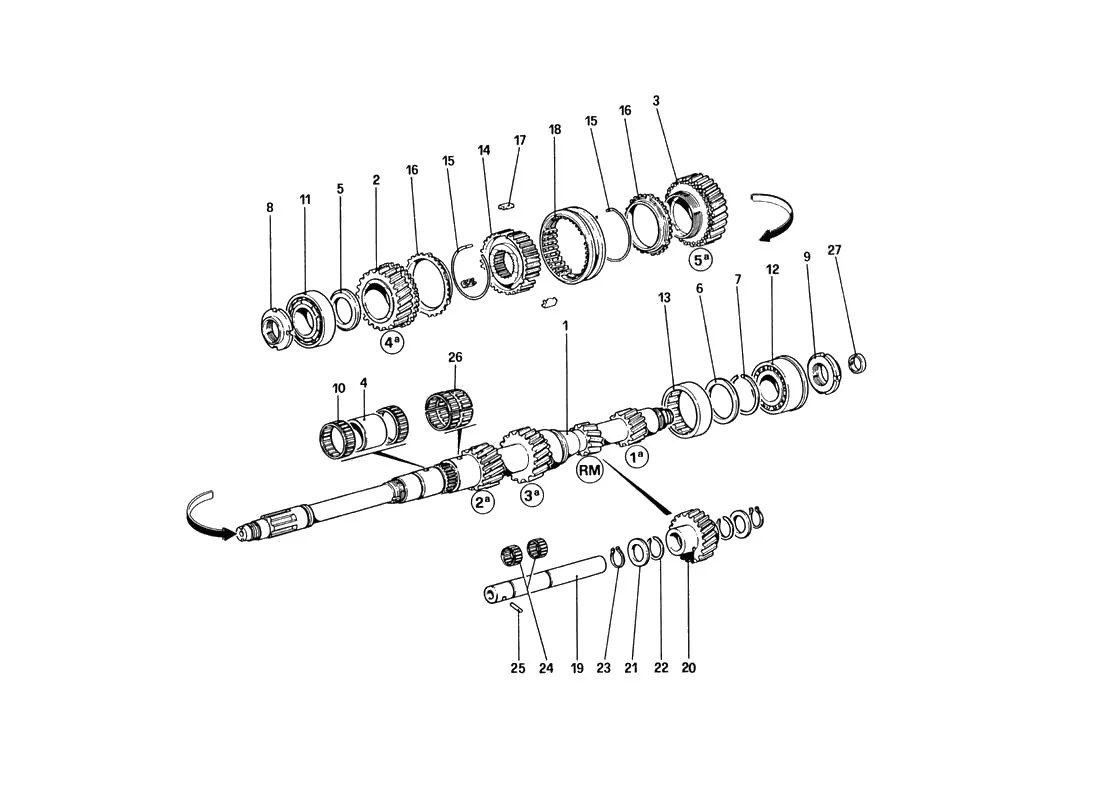

Exploded view of the main shaft gears on the Ferrari 328 GTB/GTS (1985), with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/026.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 126843 | Ferrari Mainshaft - 126843 | Price on request | Contact us for price and availability |
| 2 | 119718 | Ferrari 4th Gear Ground - 119718 | Price on request | Contact us for price and availability |
| 3 | 119719 | Ferrari 5th Gear Ground - 119719 | $1,253.46 | Available, ships in 3-6 days |
| 3 | 119719/4 | Ferrari 308Gtb Gear 5Thc/R Gearbox Comp Only - 119719/4 | $1,246.08 | Available, ships in 3-6 days |
| 4 | 113085 | Ferrari Roller Bush - 113085 | $78.93 | Available, ships in 3-6 days |
| 5 | 104242 | Ferrari Spacer - 104242 | $94.44 | In stock |
| 6 | 105538 | Ferrari Spacer - 105538 | $71.88 | Available, ships in 3-6 days |
| 7 | 112699 | Ferrari Ring - 112699 | Price on request | Contact us for price and availability |
| 8 | 104252 | Ferrari Ring Nut - 104252 | $79.25 | In stock |
| 9 | 104253 | Ferrari Ring Nut - 104253 | $86.84 | In stock |
| 10 | 104255 | Ferrari Caged Needle Bearing 4th & 5th Gear - 104255 | $49.25 | Available, ships in 3-6 days |
| 11 | 108656 | Ferrari Roller Bearing - 108656 | $360.80 | In stock |
| 12 | 103042 | Ferrari Transmission Bearing - 103042 | $270.60 | In stock |
| 13 | 105539 | Ferrari Roller Bearing 0-Mp - 105539 | $131.08 | Available, ships in 3-6 days |
| 14 | 106046 | Ferrari Synchro Ring - 106046 | $888.62 | Available, ships in 3-6 days |
| 14 | 106046/5 | Ferrari Synchro Hub C/R Gearbox - 106046/5 | $883.41 | Available, ships in 3-6 days |
| 15 | 108363 | Ferrari Synchro Spring Clip - 108363 | $112.58 | Available, ships in 3-6 days |
| 16 | 106048 | Ferrari Grooved Synchro Ring - 106048 | $789.71 | Available, ships in 3-6 days |
| 17 | 126201 | Ferrari Pad - 126201 | $207.73 | Available, ships in 3-6 days |
| 18 | 106051 | Ferrari Synchro Sleeve - 106051 | $785.42 | Available, ships in 3-6 days |
| 19 | 104221 | Ferrari Shaft - 104221 | $202.92 | Available, ships in 3-6 days |
| 20 | 119713 | Ferrari RM Gear Ground - 119713 | $719.10 | Available, ships in 3-6 days |
| 21 | 104249 | Ferrari Spacer 4.0mm - 104249 | $184.50 | Special order, ships in 7-14 days |
| 22 | 104250 | Ferrari Ring - 104250 | $1.65 | Available, ships in 3-6 days |
| 23 | 11067076 | Ferrari Snap Ring - 11067076 | $1.54 | Available, ships in 3-6 days |
| 24 | 104256 | Ferrari Caged Needle Roller Bearing - 104256 | $18.79 | Available, ships in 3-6 days |
| 25 | 10336210 | Ferrari Cotter - 10336210 | $18.04 | Available, ships in 3-6 days |
| 26 | 109002 | Ferrari Caged Needle Bearing 4th & 5th Gear - 109002 | Superseded | Order 104255 instead |
| 27 | 113087 | Ferrari Gearbox Circlip - 113087 | $106.82 | Available, ships in 3-6 days |
| 104236 | Ferrari 4th Gear - 104236 | Price on request | Contact us for price and availability | |
| 113464 | Ferrari 4th Gear Shaven - 113464 | $11,660.56 | Contact us to order | |
| 108991 | Ferrari 5th Gear Ground - 108991 | Price on request | Contact us for price and availability | |
| 113465 | Ferrari 5th Gear Shaven - 113465 | Price on request | Contact us for price and availability | |
| 11067075 | Ferrari Clip - 11067075 | Price on request | Contact us for price and availability | |
| 105559 | Ferrari Ring - 105559 | Price on request | Contact us for price and availability | |
| 105541 | Ferrari RM Gear Shaven - 105541 | $476.18 | Available, ships in 3-6 days | |
| 104257 | Ferrari Roller Bearing - 104257 | Superseded | Order 108656 instead |
