Ferrari 328 GTB/GTS (1985) — Lay Shaft Gears (diagram 027)

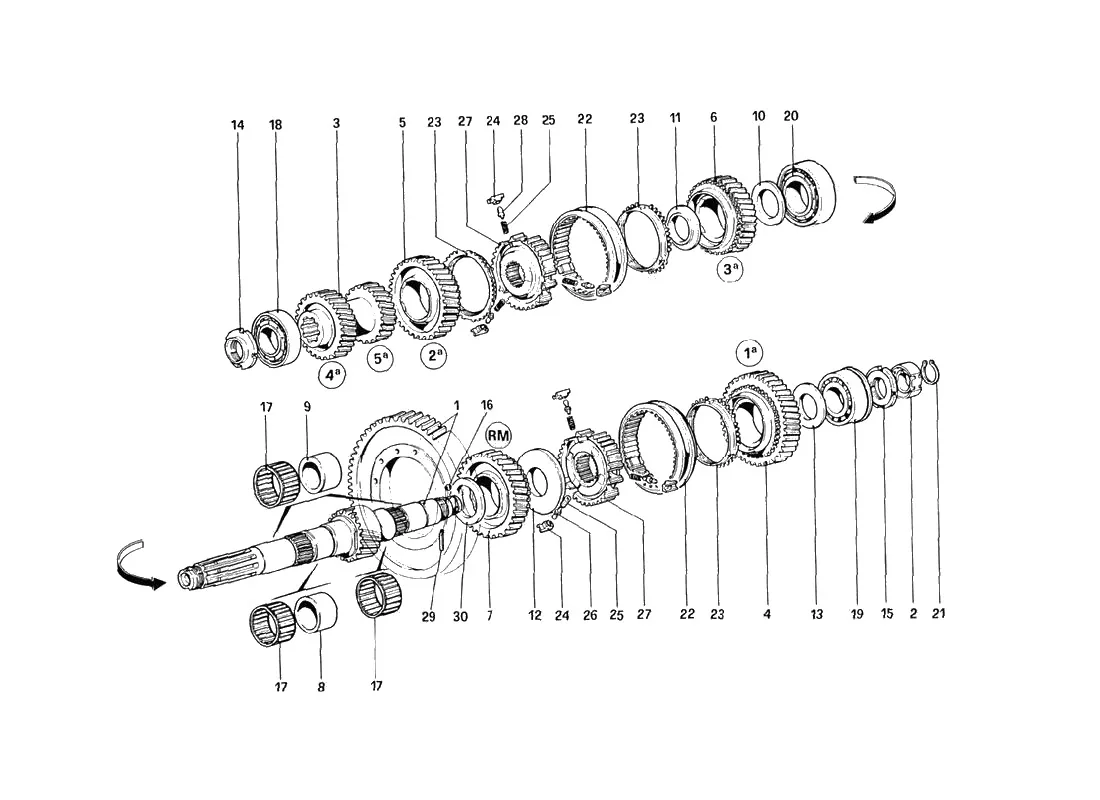

Exploded view of the lay shaft gears on the Ferrari 328 GTB/GTS (1985), with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/027.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 119748 | Ferrari Crown Wheel & Pinion Complete - 119748 | Price on request | Contact us for price and availability |
| 1 | 119741 | Ferrari Layshaft - 119741 | Price on request | Contact us for price and availability |
| 1 | 119725 | Ferrari Crown Wheel & Pinion Ground Complete - 119725 | $9,510.68 | Available, ships in 3-6 days |
| 1 | 119706 | Ferrari Layshaft - 119706 | Price on request | Contact us for price and availability |
| 2 | 116352 | Ferrari Speedo Drive - 116352 | $42.93 | Available, ships in 3-6 days |
| 3 | 119707 | Ferrari 4th & 5th Gear Ground - 119707 | $1,363.31 | Available, ships in 3-6 days |
| 3 | 129836 | Ferrari 5th Gear - 129836 | $1,363.31 | Available, ships in 3-6 days |
| 3 | 129835 | Ferrari 4th Gear - 129835 | $1,873.83 | Available, ships in 3-6 days |
| 4 | 119715 | Ferrari 1st Gear Ground - 119715 | $1,896.31 | Available, ships in 3-6 days |
| 5 | 119716 | Ferrari 2nd Gear Ground - 119716 | $3,441.09 | Special order, ships in 7-14 days |
| 6 | 119717 | Ferrari 3rd Gear Ground - 119717 | Price on request | Contact us for price and availability |
| 7 | 119720 | Ferrari RM Gear Ground - 119720 | Price on request | Contact us for price and availability |
| 8 | 113083 | Ferrari Roller Bush - 113083 | $86.56 | Available, ships in 3-6 days |
| 9 | 113084 | Ferrari Roller Bush - 113084 | $86.56 | Available, ships in 3-6 days |
| 10 | 104245 | Ferrari Spacer - 104245 | $119.39 | Available, ships in 3-6 days |
| 11 | 104246 | Ferrari Spacer - 104246 | $122.46 | Available, ships in 3-6 days |
| 12 | 104247 | Ferrari Spacer - 104247 | $158.89 | Available, ships in 3-6 days |
| 13 | 104248 | Ferrari Spacer - 104248 | $100.38 | Available, ships in 3-6 days |
| 14 | 104252 | Ferrari Ring Nut - 104252 | $79.25 | In stock |
| 15 | 104253 | Ferrari Ring Nut - 104253 | $86.84 | In stock |
| 16 | 101611 | Ferrari Ball Bearing - 101611 | $1.30 | Available, ships in 3-6 days |
| 17 | 104254 | Ferrari Caged Needle Bearing - 104254 | $64.57 | Available, ships in 3-6 days |
| 18 | 108656 | Ferrari Roller Bearing - 108656 | $360.80 | In stock |
| 19 | 103042 | Ferrari Transmission Bearing - 103042 | $270.60 | In stock |
| 20 | 108657 | Ferrari Roller Bearing - 108657 | $1,319.55 | Available, ships in 3-6 days |
| 20 | 108657/A | Ferrari Roller Bearing - 108657/A | $1,311.79 | Available, ships in 3-6 days |
| 21 | 11067376 | Ferrari Ring - 11067376 | $2.57 | Available, ships in 3-6 days |
| 22 | 106038 | Ferrari Synchro Sleeve - 106038 | $2,213.46 | Available, ships in 3-6 days |
| 23 | 106040 | Ferrari Synchro Ring - 106040 | $702.11 | In stock |
| 24 | 106042 | Ferrari Selector Block - 106042 | $375.86 | Available, ships in 3-6 days |
| 25 | 106043 | Ferrari Synchro Spring - 106043 | $6.50 | Available, ships in 3-6 days |
| 26 | 106044 | Ferrari Synchro Lock Pin - 106044 | Superseded | Order 113412 instead |
| 26 | 113412 | Ferrari Synchronizer Lock Pin - 113412 | $38.41 | Available, ships in 3-6 days |
| 27 | 106050 | Ferrari Synchro Sleeve - 106050 | $618.16 | Available, ships in 3-6 days |
| 29 | 13907570 | Ferrari Layshaft Pin - 13907570 | $0.96 | Available, ships in 3-6 days |
| 30 | 108096 | Ferrari Spacer - 108096 | $89.68 | Available, ships in 3-6 days |
| 113461 | Ferrari 1st Gear Shaven - 113461 | Superseded | Order 119715 instead | |
| 113462 | Ferrari 2nd Gear Shaven - 113462 | Price on request | Contact us for price and availability | |
| 113463 | Ferrari 3rd Gear Shaven - 113463 | Price on request | Contact us for price and availability | |
| 115821 | Ferrari Crown Wheel & Pinion 17/63 - 115821 | Price on request | Contact us for price and availability | |
| 119747 | Ferrari Crown Wheel - 119747 | Price on request | Contact us for price and availability | |
| 104233 | Ferrari Gear (Machined) Ground 1st - 104233 | Superseded | Order 119715 instead | |
| 104234 | Ferrari Gear 2nd - 104234 | $3,127.80 | Special order, ships in 7-14 days | |
| 104235 | Ferrari Gear 3rd - 104235 | Price on request | Contact us for price and availability | |
| 104238 | Ferrari Gear RM - 104238 | Price on request | Contact us for price and availability | |
| 113467 | Ferrari RM Gear Shaven - 113467 | Price on request | Contact us for price and availability | |
| 104257 | Ferrari Roller Bearing - 104257 | Superseded | Order 108656 instead | |
| 104258 | Ferrari Roller Bearing - 104258 | $438.99 | Available, ships in 3-6 days | |
| 184547 | Ferrari Synchro Sleeve - 184547 | Superseded | Order 106038 instead |
