Ferrari 328 GTB/GTS (1985) — Differential And Axle Shafts (diagram 030)

Exploded view of the differential and axle shafts on the Ferrari 328 GTB/GTS (1985), with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

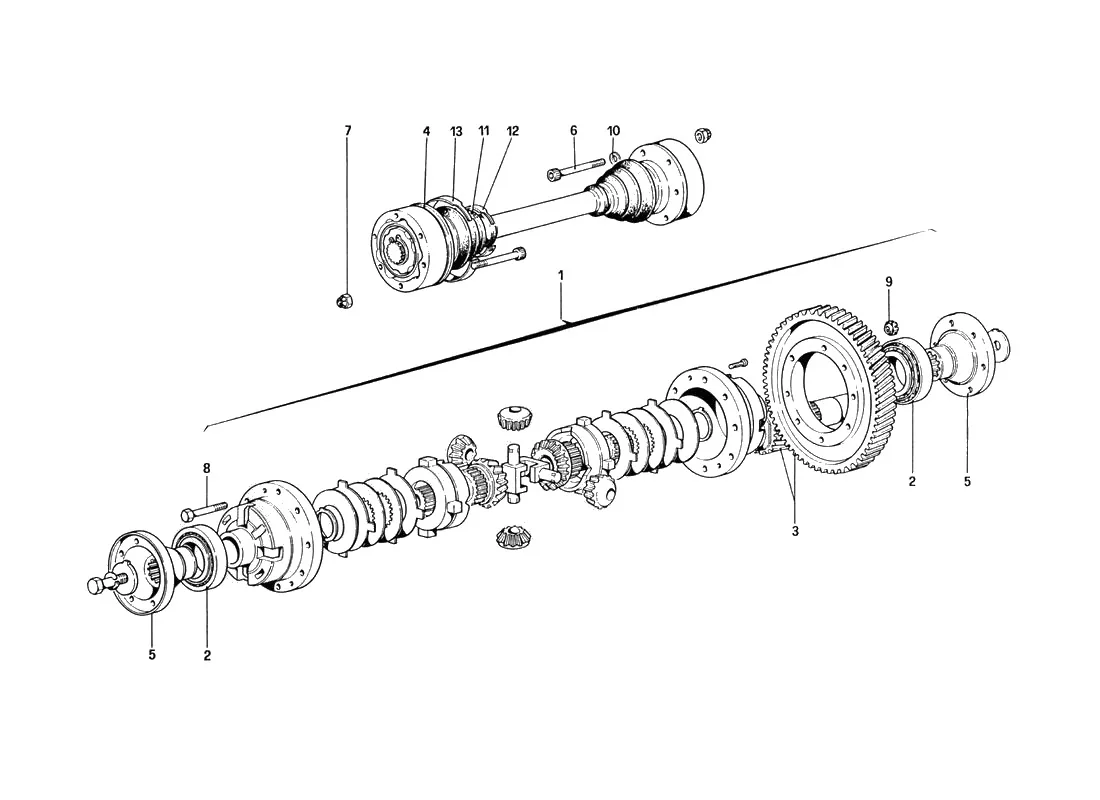

Ferrari 328 GTB/GTS (1985) Differential And Axle Shafts exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1106769Ferrari Differential Unit - 106769$12,818.01Contact us to order
2101634Ferrari Differential Bearing - 101634$184.80In stock
3119748Ferrari Crown Wheel & Pinion Complete - 119748Price on requestContact us for price and availability
3119725Ferrari Crown Wheel & Pinion Ground Complete - 119725$9,510.68Available, ships in 3-6 days
3119747Ferrari Crown Wheel - 119747Price on requestContact us for price and availability
3119724Ferrari Crown Wheel - 119724SupersededOrder 119725 instead
4103885Ferrari Axle CV Joint - 103885$173.80In stock
5119377Ferrari Flange - 119377$903.71Special order, ships in 7-14 days
6101632Ferrari Half Shaft Bolt - 101632$14.50In stock
7101633Ferrari Half Shaft Nut Self Locking - 101633$7.65In stock
8106777Ferrari Crown Wheel Bolt - 106777$65.24Available, ships in 3-6 days
9104011Ferrari Self Locking Nut 10x1mm - 104011$21.77Available, ships in 3-6 days
1012638621Ferrari Washer - 12638621$1.15Available, ships in 3-6 days
1195860404KIT/PFerrari CV Boot Kit Complete - 95860404KIT/P$69.25In stock
1195860404BCFerrari CV Boot w/ Clamps - 95860404BC$31.55In stock
12117956Ferrari Drive Shaft Boot Clip - 117956$8.76Available, ships in 3-6 days
13117957Ferrari Drive Shaft Boot Clip - 117957$9.66Available, ships in 3-6 days
103432Ferrari Bolt - 103432SupersededOrder 101632 instead
115821Ferrari Crown Wheel & Pinion 17/63 - 115821Price on requestContact us for price and availability
119373Ferrari Drive Flange - 119373$699.37Available, ships in 3-6 days
101631Ferrari Flange - 101631Price on requestContact us for price and availability
107912Ferrari Flange - 107912Price on requestContact us for price and availability
111522Ferrari Flange - 111522Price on requestContact us for price and availability
580723Ferrari Flange - 580723Price on requestContact us for price and availability
119741Ferrari Layshaft - 119741Price on requestContact us for price and availability
14308234Ferrari Screw - 14308234SupersededOrder 101632 instead
265036Ferrari Screw - 265036SupersededOrder 101632 instead
14489121Ferrari Washer - 14489121SupersededOrder 12638621 instead

All 328 GTB/GTS (1985) diagrams
