Ferrari 328 GTB/GTS (1985) — Rear Suspension - Wishbones (diagram 040)

Exploded view of the rear suspension - wishbones on the Ferrari 328 GTB/GTS (1985), with 70 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

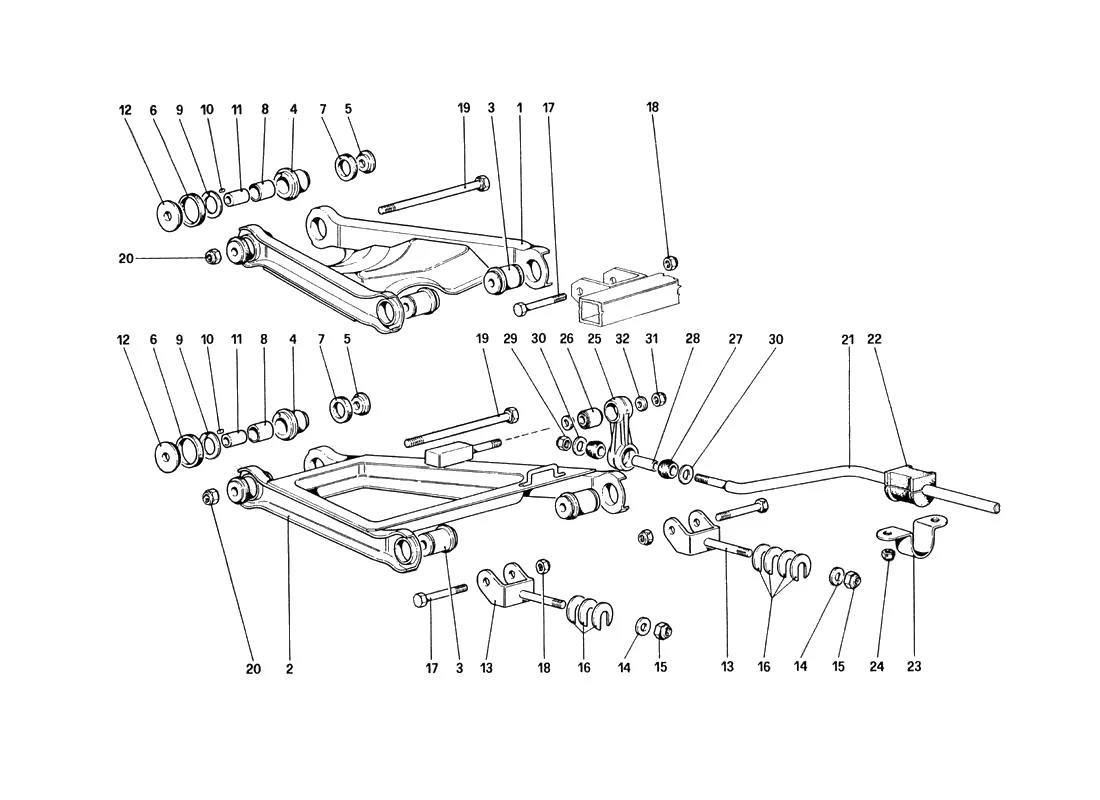

Ferrari 328 GTB/GTS (1985) Rear Suspension - Wishbones exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1104423Ferrari RH Upper Rear Suspension Lever - 104423$2,587.35Available, ships in 3-6 days
1104422Ferrari LH Upper Rear Suspension wishbone - 104422$1,466.31Available, ships in 3-6 days
2127868Ferrari RH Rear Suspension Lower Lever LHD - 127868$1,214.80Available, ships in 3-6 days
2127869Ferrari LH Rear Suspension Lower Lever - 127869Price on requestContact us for price and availability
2129218Ferrari RH Rear Suspension Lower Lever RHD - 129218$1,180.99Available, ships in 3-6 days
3154536KITFerrari Control Arm Bushing Kit Rear - 154536KIT$379.50In stock
3154536Ferrari/Maserati Control Arm Bushing - 154536$59.98In stock
3103170Ferrari Bush - 103170SupersededOrder 111616 instead
4105340Ferrari 308/328 Control Arm Bushing - 105340$42.90In stock
4105340KFerrari Control Arm Bushing Set - 105340KSS$442.50In stock
5105341Ferrari Suspension Washer - 105341$29.68In stock
6105342Ferrari Suspension Seal - 105342$24.75In stock
7105343Ferrari Suspension Grommet-105343$14.06In stock
8100787Ferrari Suspension Inner Bushing - 100787$7.58In stock
9101009Ferrari Suspension Thrust Washer - 101009$13.92In stock
10100796Ferrari Dowel Pin - 100796$7.10In stock
11109905Ferrari Stainless Steel Bush - 109905SupersededOrder 600740 instead
11600740Ferrari Stainless Steel Bush - 600740$75.92Available, ships in 3-6 days
12109902Ferrari Thrust Washer - 109902$42.35In stock
13127638Ferrari Rear Lower Suspension Fork - 127638$103.27Available, ships in 3-6 days
14101041Ferrari Washer 14.5x24x2.5 - 101041$0.44Available, ships in 3-6 days
15150238Ferrari Nyloc Nut - 150238$1.05In stock
1512575821Ferrari Nut - 12575821SupersededOrder 150238 instead
16101039Ferrari Suspension Shim - 101039$3.25In stock
16107338Ferrari Shim Washer 1.50mm - 107338$3.14Available, ships in 3-6 days
16107339Ferrari Shim Washer 2.00mm - 107339$3.91Available, ships in 3-6 days
16107340Ferrari Shim Washer 2.50mm - 107340$4.14Available, ships in 3-6 days
16107341Ferrari Shim Washer 3.00mm - 107341$3.14Available, ships in 3-6 days
16107342Ferrari Shim Washer 3.25mm - 107342$1.80Available, ships in 3-6 days
17121693Ferrari Suspension Bolt - 121693$52.61Available, ships in 3-6 days
18148020Ferrari Nut - 148020$7.65In stock
1816105121Ferrari Nyloc Nut - 16105121SupersededOrder 148020 instead
19105344Ferrari Suspension Bolt - 105344$61.38In stock
21108841Ferrari Anti Roll Bar Rear 15mm GTB - 108841Price on requestContact us for price and availability
21112872Ferrari Anti Roll Bar Rear GTS - 112872$681.41Special order, ships in 7-14 days
22108748Ferrari Rear Sway Bar Bushing - 108748$25.85In stock
22109010Ferrari Rear Sway Bar Bushing - 109010$33.00In stock
23104417Ferrari Rear Sway Bar Bracket - 104417$55.55In stock
24104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
2412575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
25108432Ferrari Rear Sway Bar Link -108432$196.35In stock
25108432KITFerrari Rear Sway Bar Link Kit - 108432KIT$286.00In stock
26100773RFerrari Sway Bar Link Silent Block Bushing - 100773$38.50In stock
26100773Ferrari Bonded Silent Bloc Bush - 100773$38.50Available, ships in 3-6 days
27108244Ferrari Sway Bar Link/Steering Rack Bushing - 108244$13.75In stock
27107335Ferrari Rear Sway Bar Link Bushing - 107335$13.20In stock
28108294Ferrari Spacer - 108294$65.89In stock
28108294/AFerrari Spacer - 108294/A$111.32Available, ships in 3-6 days
2916104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
29101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
30107409Ferrari Washer - 107409$4.62Available, ships in 3-6 days
30112873Ferrari Washer GTS - 112873Price on requestContact us for price and availability
32108913Ferrari Spacer - 108913$21.43Available, ships in 3-6 days
127849Ferrari Bolt - 127849Price on requestContact us for price and availability
101315Ferrari Bush - 101315SupersededOrder 100787 instead
600750Ferrari Bush - 600750SupersededOrder 100787 instead
601157Ferrari Bush - 601157SupersededOrder 111616 instead
660826Ferrari Bush - 660826SupersededOrder 100787 instead
107334Ferrari Link Arm - 107334Price on requestContact us for price and availability
16505121Ferrari Nut - 16505121SupersededOrder 148020 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
104421Ferrari Spacer - 104421SupersededOrder 108913 instead
107336Ferrari Spacer - 107336SupersededOrder 108294 instead
154085Ferrari Spacer - 154085SupersededOrder 108294 instead
601405Ferrari Spacer - 601405SupersededOrder 108913 instead
100785Ferrari Stainless Steel Bush - 100785SupersededOrder 600740 instead
600771Ferrari Thrust Washer - 600771SupersededOrder 101009 instead
107422Ferrari Washer 3.25mm - 107422SupersededOrder 107342 instead

All 328 GTB/GTS (1985) diagrams
