Ferrari 328 GTB/GTS (1985) — Engine Ignition (diagram 042)

Exploded view of the engine ignition on the Ferrari 328 GTB/GTS (1985), with 79 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

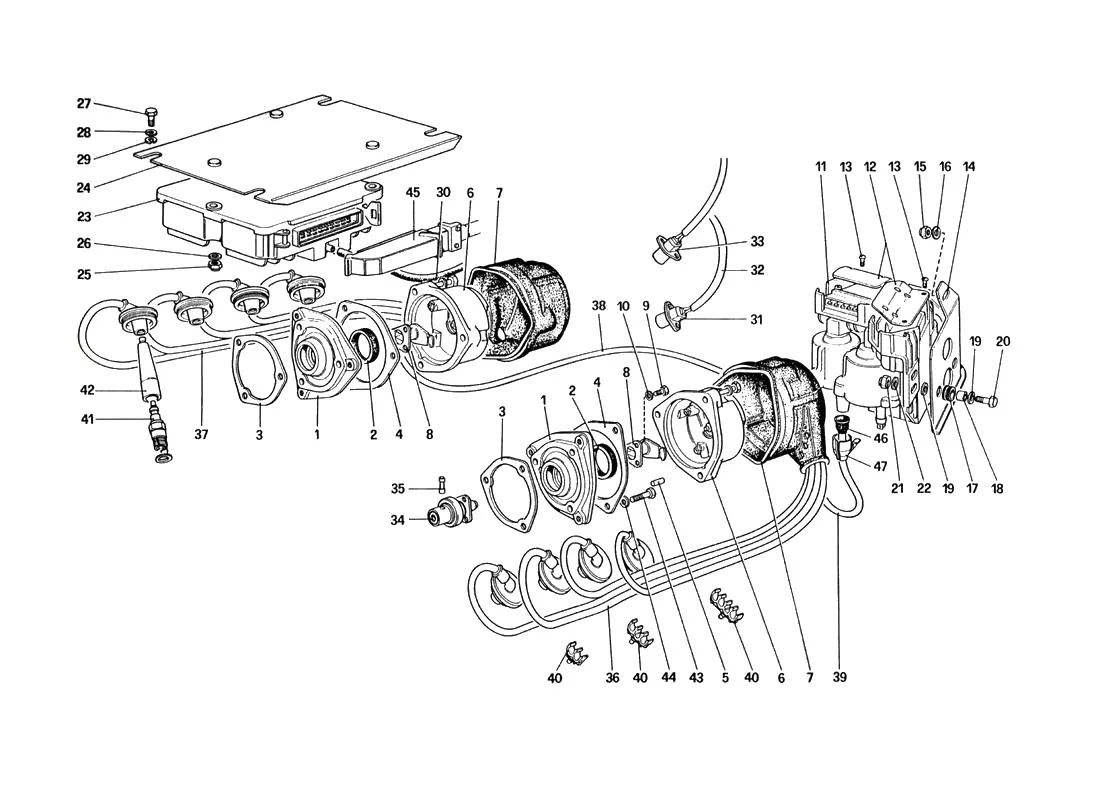

Ferrari 328 GTB/GTS (1985) Engine Ignition exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1126115Ferrari Mtg Flange Distributor - 126115Price on requestContact us for price and availability
2132453Ferrari Distributor Oil Seal - 132453$20.74In stock
2126105Ferrari Oil Seal - 126105SupersededOrder 132453 instead
3150198Ferrari Distributor Base Gasket - 150198$15.35In stock
3117261Ferrari Gasket - 117261SupersededOrder 150198 instead
4119409Ferrari Distributor Cap Gasket - 119409$7.25In stock
510331111Ferrari Dowel Bolt - 10331111Price on requestContact us for price and availability
6115518Ferrari Distributor Cap - 115518$214.50In stock
6115518002Ferrari 308/Mondial Distributor Cap and Rotor Kit - 115518002$522.50In stock
6115518004Ferrari 328/Mondial 3.2 Distributor Cap and Rotor Set - 115518004$654.50In stock
6115518/AFerrari Distributor Cap - 115518/A$482.69Available, ships in 3-6 days
7118889Ferrari Distributor Cover - 118889$50.60In stock
8126139Ferrari 328/Mondial 3.2/Testarossa Distributor Rotor - 126139$124.98In stock
8126139/AFerrari Rotor Arm - 126139/A$237.82Available, ships in 3-6 days
910444521Ferrari Screw - 10444521Price on requestContact us for price and availability
1012544071Ferrari Washer - 12544071Price on requestContact us for price and availability
11124273MFerrari Ignition Coil Module - 124273M$206.80In stock
11124273Ferrari Ignition Coil and Module (refundable core included in price) - 124273$1,164.90In stock
11124273CFerrari Ignition Coil - 124273C$171.25In stock
11127134Ferrari Coil - 127134SupersededOrder 124273 instead
12128169Ferrari Shield - 128169Price on requestContact us for price and availability
1314063018Ferrari Screw - 14063018Price on requestContact us for price and availability
14127136Ferrari Coil Support - 127136$25.03Special order, ships in 7-14 days
15102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1512574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
1610519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
1614496401Ferrari Washer - 14496401SupersededOrder 10519424 instead
17103549Ferrari Grommet - 103549$2.80In stock
18103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
1912643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
2010902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
2010902821Ferrari Bolt - 10902821$0.17Available, ships in 3-6 days
2010903021Ferrari Bolt - 10903021Price on requestContact us for price and availability
23127422Ferrari Electronic Ignition Unit - 127422Price on requestContact us for price and availability
24127138Ferrari Plate - 127138$53.69Available, ships in 3-6 days
24127918Ferrari Plate - 127918$65.36Available, ships in 3-6 days
2710902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
2710902021Ferrari Bolt - 10902021SupersededOrder 10902024 instead
29127494Ferrari Lock Washer - 127494$0.50In stock
29106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
30128305Ferrari Tube - 128305Price on requestContact us for price and availability
31128364Ferrari Sensor - 128364Price on requestContact us for price and availability
32128365Ferrari Timing Sensor - 128365Price on requestContact us for price and availability
33119052Ferrari Crank TDC Sensor - 119052$151.80In stock
33119052/AFerrari Sensor - 119052/A$291.10Available, ships in 3-6 days
34133063Ferrari Distributor Drive Joint - 133063$2,227.24Available, ships in 3-6 days
34129121Ferrari Coupling - 129121SupersededOrder 133063 instead
35129120Ferrari Rotor Arm Union - 129120$11.88In stock
36AW9320000Ferrari 308 QV/Mondial Ignition Kit - AW9320000$1,158.50In stock
369913Ferrari 308/328/Mondial Ignition Wire Set - 9913$698.06In stock
37118827Ferrari RH HT Lead Set (Red) - 118827$1,068.43Available, ships in 3-6 days
38128166Ferrari Coil Cable Lead 65cm - 128166$63.87Available, ships in 3-6 days
38119356Ferrari Coil Cable Lead (Red) - 119356$126.23Available, ships in 3-6 days
40121789Ferrari Plug Wire Clip - 121789$12.48In stock
40121790Ferrari Plug Wire Clip - 121790$10.50In stock
40121788Ferrari Plug Wire Clip - 121788$12.50In stock
41150180Ferrari Spark Plug - 150180$17.60In stock
41124274Ferrari Spark Plug Champion A6G - 124274SupersededOrder 150180 instead
42126699Ferrari 328/Mondial Spark Plug Extension - 126699$17.50In stock
4310902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
4310902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
4411197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
4411197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
4561916900Ferrari 25 Way Connector - 61916900Price on requestContact us for price and availability
46122970Ferrari Coil Cover (Red) - 122970$41.53Available, ships in 3-6 days
47129620Ferrari Protection - 129620Price on requestContact us for price and availability
95880322Ferrari Bolt - 95880322Price on requestContact us for price and availability
115601Ferrari Coil Cable Lead (Black) - 115601Price on requestContact us for price and availability
95300044Ferrari Distributor Cap - 95300044Price on requestSpecial order, ships in 7-14 days
126166Ferrari Distributor Drive Joint (See TECH 464) - 126166SupersededOrder 133063 instead
133100Ferrari Mtg Flange Dist 1-4 5-8 8 Cyl - 133100Price on requestContact us for price and availability
132355Ferrari Pin - 132355$101.56Available, ships in 3-6 days
131922Ferrari Spark Plug A6G - 131922SupersededOrder 150180 instead
129969Ferrari Tube - 129969Price on requestContact us for price and availability
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
12605170Ferrari Washer - 12605170Price on requestContact us for price and availability
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead

All 328 GTB/GTS (1985) diagrams
