Ferrari 328 GTB/GTS (1985) — Body Shell - Inner Elements (diagram 103)

Exploded view of the body shell - inner elements on the Ferrari 328 GTB/GTS (1985), with 102 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

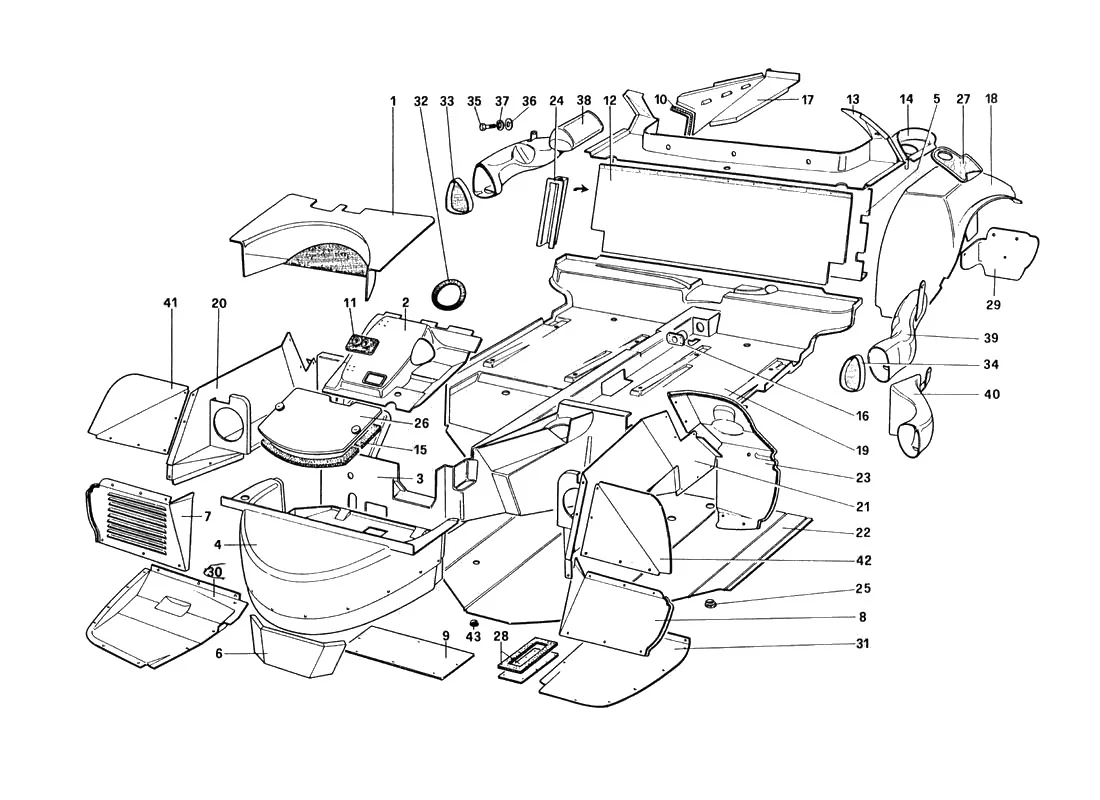

Ferrari 328 GTB/GTS (1985) Body Shell - Inner Elements exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160350501Ferrari Spare Wheel Cover LHD - 60350501$1,142.24Available, ships in 3-6 days
160287505Ferrari Zipped spare wheel cover - 60287505$1,142.24Available, ships in 3-6 days
160351806Ferrari Spare Wheel Cover RHD - 60351806$571.11Available, ships in 3-6 days
160351905Ferrari Spare Wheel Cover - 60351905Price on requestContact us for price and availability
261827700Ferrari Bulkhead Panel LHD - 61827700$297.45Available, ships in 3-6 days
261851500Ferrari Bulkhead Panel RHD - 61851500$244.99Special order, ships in 7-14 days
361755800Ferrari Front Panel LHD GTB - 61755800$1,137.98Available, ships in 3-6 days
361778600Ferrari Front Panel LHD GTS - 61778600$1,137.98Available, ships in 3-6 days
361851600Ferrari Front Panel RHD GTB - 61851600$1,137.98Available, ships in 3-6 days
361872800Ferrari Front Panel RHD GTS - 61872800$1,083.78Special order, ships in 7-14 days
461748800Ferrari Spare Wheel Carrier - 61748800Price on requestContact us for price and availability
561194200Ferrari Shield GTS LHD - 61194200$226.47Available, ships in 3-6 days
561194300Ferrari Shield GTS RHD - 61194300$344.90Available, ships in 3-6 days
560706500Ferrari Shield GTB - 60706500$171.48Available, ships in 3-6 days
560719400Ferrari Shield GTS - 60719400$171.48Available, ships in 3-6 days
660351707Ferrari Battery Panel GTS - 60351707Price on requestContact us for price and availability
761750200Ferrari RH Lower Front Wheel Arch Panel - 61750200$640.45Available, ships in 3-6 days
761897200Ferrari RH Lower Front Wheel Arch Panel - 61897200$101.64Available, ships in 3-6 days
861750300Ferrari LH Lower Front Wheel Arch Panel - 61750300Price on requestContact us for price and availability
861897300Ferrari LH Lower Front Wheel Arch Panel - 61897300$82.21Special order, ships in 7-14 days
960059706Ferrari 308/328 Vented Undertray Panel - 60059706$478.50In stock
960208600Ferrari Undertray RHD - 60208600Price on requestContact us to order
1060251808Ferrari Gasket - 60251808$12.61Available, ships in 3-6 days
1160054905Ferrari Cable Grommet LHD - 60054905$132.63Available, ships in 3-6 days
1160197704Ferrari Cable Grommet RHD - 60197704Price on requestContact us for price and availability
1260850800Ferrari Shield - 60850800$138.21Available, ships in 3-6 days
1261193700Ferrari Shield GTB - 61193700Price on requestContact us for price and availability
1261081000Ferrari Shield - 61081000$112.55Available, ships in 3-6 days
1361010800Ferrari Plane Rear Window GTB - 61010800$319.80Contact us to order
1361128400Ferrari Plane Rear Window GTS - 61128400$321.20Contact us to order
1460441201Ferrari Fuel Filler Container GTB - 60441201$154.89Available, ships in 3-6 days
1460342904Ferrari Fuel Filler Container GTS - 60342904$170.35Available, ships in 3-6 days
15114058Ferrari Air Box Rubber Gasket - 114058$121.69Available, ships in 3-6 days
1560031101Ferrari Battery Cover Gasket - 60031101$121.69Available, ships in 3-6 days
1660084704Ferrari Bush LHD - 60084704Price on requestContact us for price and availability
1640169005Ferrari Bush RHD - 40169005$15.98Available, ships in 3-6 days
1760956900Ferrari RH Shield - 60956900$141.60Available, ships in 3-6 days
1760956800Ferrari LH Shield - 60956800Price on requestContact us for price and availability
1860091303Ferrari RH Rear Wheel Arch - 60091303Price on requestContact us for price and availability
1860091402Ferrari LH Rear Wheel Arch - 60091402Price on requestContact us for price and availability
1861874900Ferrari RH Rear Wheelhouse LHD - 61874900Price on requestContact us for price and availability
1861875000Ferrari LH Rear Wheelhouse LHD - 61875000$494.06Available, ships in 3-6 days
1961748100Ferrari Inner Floor Panel LHD GTB - 61748100$1,656.02Contact us to order
1961842400Ferrari Inner Floor Panel RHD GTB - 61842400$1,475.91Contact us to order
1961767200Ferrari Inner Floor Panel LHD GTS - 61767200$1,467.51Contact us to order
1961856800Ferrari Inner Floor Panel GTS RHD - 61856800$1,577.17Contact us to order
2061749800Ferrari RH Front Wheelhouse - 61749800Price on requestContact us for price and availability
2161749900Ferrari LH Front Wheelhouse - 61749900$342.09Available, ships in 3-6 days
2260270006Ferrari Under Floor Panel RHD - 60270006$356.46Available, ships in 3-6 days
2260880900Ferrari Under Floor Panel LHD - 60880900Price on requestContact us for price and availability
2361849700Ferrari RH Gravel Guard LHD GTB - 61849700$339.40Available, ships in 3-6 days
2361849900Ferrari RH Gravel Guard LHD GTS - 61849900$393.93Available, ships in 3-6 days
2361849800Ferrari LH Gravel Guard GTB - 61849800$363.07Available, ships in 3-6 days
2361850000Ferrari LH Gravel Guard GTS - 61850000$363.07Available, ships in 3-6 days
2361859100Ferrari RH Gravel Guard RHD GTB - 61859100$310.88Available, ships in 3-6 days
2361870600Ferrari RH Gravel Guard RHD GTS - 61870600$402.14Available, ships in 3-6 days
2460093903Ferrari Protection for pipes LHD GTB - 60093903Price on requestContact us for price and availability
2460241908Ferrari Accelerator Cable Pipe Protection - 60241908$170.64Available, ships in 3-6 days
2540305203Ferrari Rubber Plug - 40305203$18.46Available, ships in 3-6 days
2660279809AFerrari Battery Cover w/ Nuts - 60279809A$298.00In stock
2760134202Ferrari Fuel Protection Flap - 60134202$65.95Contact us
2762943200Ferrari Fuel Protection Flap - 62943200$32.95In stock
2860225000Ferrari Inspection Cover RHD - 60225000$209.43Special order, ships in 7-14 days
2961883700Ferrari RH Shield - 61883700$56.45Available, ships in 3-6 days
2961883800Ferrari LH Shield - 61883800Price on requestContact us for price and availability
2961770300Ferrari RH Shield - 61770300Price on requestContact us for price and availability
2961770400Ferrari LH Shield - 61770400Price on requestContact us for price and availability
3061771800Ferrari RH Shield - 61771800Price on requestContact us for price and availability
3161771900Ferrari Lower Panel LH - 61771900Price on requestContact us for price and availability
3161947300Ferrari LH Front Undertray - 61947300$1,026.05Contact us to order
3260055001Ferrari Gasket LHD - 60055001$21.01Special order, ships in 7-14 days
3260186103Ferrari Gasket RHD - 60186103Price on requestContact us for price and availability
3360200300Ferrari RH Air Intake Grille - 60200300Price on requestContact us for price and availability
3460200409Ferrari LH Air Intake Grille - 60200409Price on requestContact us for price and availability
3510902124Ferrari Screw - 10902124$0.29In stock
3510902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
3612643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
37127494Ferrari Lock Washer - 127494$0.50In stock
37106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
3861299600Ferrari RH Air Duct - 61299600Price on requestContact us for price and availability
3960373602Ferrari LH Air Duct GTS - 60373602Price on requestContact us for price and availability
4061823500Ferrari LH Air Duct - 61823500$461.84Available, ships in 3-6 days
4161755400Ferrari Wheel Arch Panel RH - 61755400$226.78Available, ships in 3-6 days
4261755500Ferrari Wheel Arch Panel LH - 61755500Price on requestContact us for price and availability
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
60224904Ferrari Cover - 60224904Price on requestContact us for price and availability
60351900Ferrari Cover - 60351900Price on requestContact us for price and availability
60001906Ferrari Fireproof Bhead - 60001906SupersededOrder 61755800 instead
60044609Ferrari Fireproof Dashboard LHD GTB - 60044609SupersededOrder 61755800 instead
60327301Ferrari Fireproof Dashboard LHD GTS - 60327301SupersededOrder 61778600 instead
61618000Ferrari Fireproof Dashboard RHD GTS - 61618000SupersededOrder 61778600 instead
60222403Ferrari LH Duct - 60222403Price on requestContact us for price and availability
61018000Ferrari LH Rear Wheel Arch - 61018000Price on requestContact us for price and availability
61618600Ferrari Panel - 61618600SupersededOrder 61755800 instead
61017900Ferrari RH Rear Wheel Arch - 61017900Price on requestContact us for price and availability
61008800Ferrari Shield - 61008800Price on requestContact us for price and availability
60114907Ferrari Spare Wheel Cover - 60114907Price on requestContact us for price and availability
60224201Ferrari Spare Wheel Cover LHD - 60224201Price on requestContact us for price and availability
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
12643724Ferrari/Maserati Washer - 12643724$0.20In stock

All 328 GTB/GTS (1985) diagrams
