Ferrari 328 GTB/GTS (1985) — Body Shell - Inner Elements (Not For U.S. And Sa Version) (diagram 104)

Exploded view of the body shell - inner elements (not for u.s. and sa version) on the Ferrari 328 GTB/GTS (1985), with 80 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

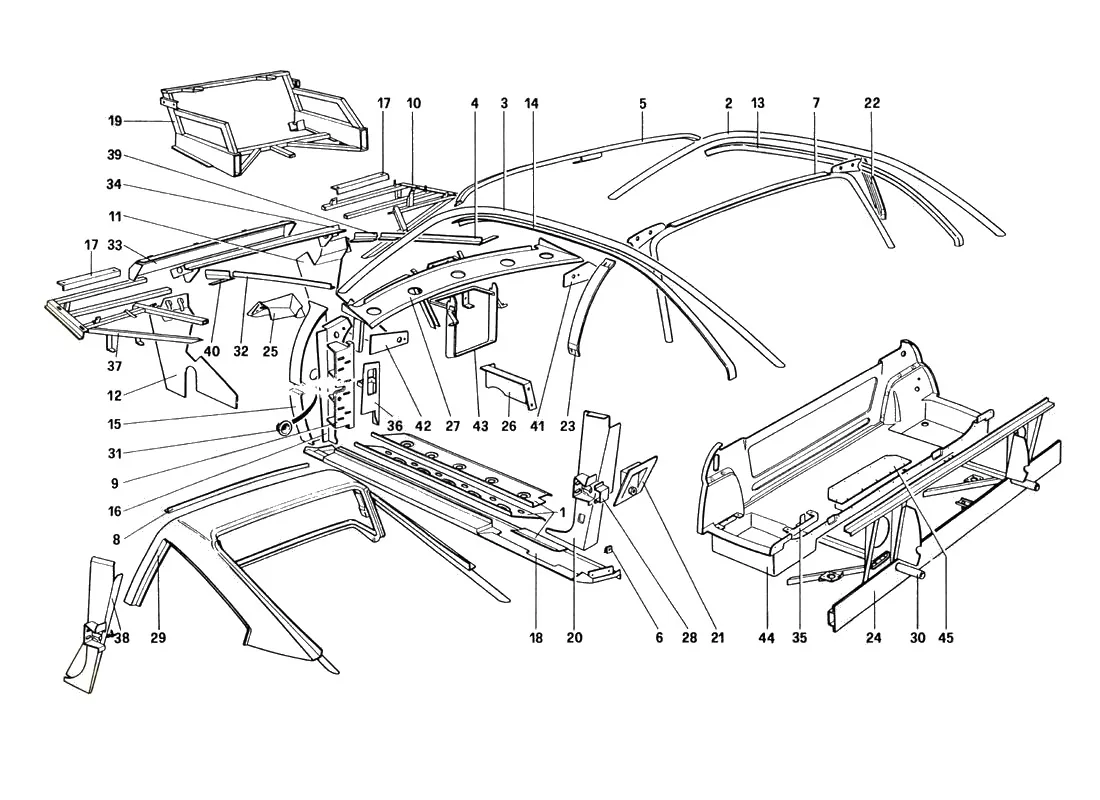

Ferrari 328 GTB/GTS (1985) Body Shell - Inner Elements (Not For U.S. And Sa Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160303203Ferrari RH Door Sill Assy GTB - 60303203Price on requestContact us for price and availability
160303302Ferrari LH Door Sill Assy GTB - 60303302Price on requestContact us for price and availability
160419504Ferrari RH Door Sill Assy GTS - 60419504Price on requestContact us for price and availability
160419603Ferrari LH Door Sill Assy GTS - 60419603Price on requestContact us for price and availability
261010000Ferrari RH Roof Frame Tubing GTB - 61010000$168.15Available, ships in 3-6 days
361010100Ferrari LH Roof Frame Tubing GTB - 61010100$196.57Special order, ships in 7-14 days
460350006Ferrari RH Stiffening LHD - 60350006$41.69Available, ships in 3-6 days
460350204Ferrari RH Stiffening RHD - 60350204$25.99Available, ships in 3-6 days
560371309Ferrari Roof Support Rail GTB - 60371309$348.55Available, ships in 3-6 days
660361801Ferrari Clip - 60361801Price on requestContact us for price and availability
760296001Ferrari Roll Bar - 60296001$167.13Available, ships in 3-6 days
860560400Ferrari 328Gtb/S Rear Roof Sealing Strip - 60560400$8.43Available, ships in 3-6 days
960285202Ferrari Bracket - 60285202$152.24Available, ships in 3-6 days
1061748400Ferrari RH Front Space Frame - 61748400Price on requestContact us for price and availability
1161748200Ferrari RH Radiator Shield Panel LHD - 61748200Price on requestContact us for price and availability
1161842600Ferrari RH Radiator Shield Panel RHD - 61842600Price on requestContact us for price and availability
1261748300Ferrari LH Radiator Shield Panel LHD - 61748300$156.82Available, ships in 3-6 days
1261842700Ferrari LH Radiator Shield Panel RHD - 61842700SupersededOrder 61748300 instead
1360260106Ferrari RH Rail GTB - 60260106$186.99Available, ships in 3-6 days
1460260007Ferrari LH Rail GTB - 60260007Price on requestContact us for price and availability
1560252400Ferrari RH Door Hinge Post - 60252400$62.60Available, ships in 3-6 days
1560252500Ferrari Hinge Post LH Door - 60252500Price on requestContact us for price and availability
1660397106Ferrari RH Pillar Insert GTS - 60397106$58.57Available, ships in 3-6 days
1660397205Ferrari LH Pillar Insert GTS - 60397205$53.97Available, ships in 3-6 days
1661009800Ferrari RH Pillar Insert GTB - 61009800SupersededOrder 60397106 instead
1661009900Ferrari LH Pillar Insert GTB - 61009900SupersededOrder 60397205 instead
1760652200Ferrari Bracket - 60652200$57.60Available, ships in 3-6 days
1860003803Ferrari RH Outer Sill Panel - 60003803Price on requestContact us for price and availability
1860003902Ferrari LH Outer Sill Panel - 60003902Price on requestContact us for price and availability
19129903Ferrari Front Frame - 129903$1,541.21Special order, ships in 7-14 days
2060302403Ferrari RH Panel GTB - 60302403$198.83Available, ships in 3-6 days
2060302304Ferrari LH Panel GTB - 60302304Price on requestContact us for price and availability
2160347705Ferrari Support - 60347705$45.56Available, ships in 3-6 days
2260260403Ferrari RH Upright Panel GTB - 60260403$136.58Available, ships in 3-6 days
2360260502Ferrari LH Upright Panel GTB - 60260502$453.58Available, ships in 3-6 days
2461754700Ferrari Rear Space Frame LHD - 61754700$1,230.15Available, ships in 3-6 days
2461847100Ferrari Rear Space Frame RHD - 61847100$1,158.11Available, ships in 3-6 days
2561851800Ferrari Bracket LHD - 61851800$73.18Available, ships in 3-6 days
2561902300Ferrari Bracket RHD - 61902300$91.62Available, ships in 3-6 days
2660106903Ferrari Support LHD - 60106903Price on requestContact us for price and availability
2660193109Ferrari Support RHD - 60193109$42.82Special order, ships in 7-14 days
2761862100Ferrari Stiffening LHD - 61862100$186.45Special order, ships in 7-14 days
2761862600Ferrari Stiffening RHD - 61862600$195.77Available, ships in 3-6 days
2860302601Ferrari Plate - 60302601$14.32Available, ships in 3-6 days
2960879800Ferrari Top Assy GTS - 60879800$2,666.94Available, ships in 3-6 days
2961128800Ferrari Roof Assy GTS - 61128800SupersededOrder 60879800 instead
3061825400Ferrari Rear Bracket - 61825400Price on requestContact us for price and availability
3160284304Ferrari Plug - 60284304$9.32Available, ships in 3-6 days
3260397908Ferrari LH Stiffening LHD - 60397908$27.66Available, ships in 3-6 days
3260350402Ferrari LH Stiffening RHD - 60350402$87.17Available, ships in 3-6 days
3361772600Ferrari Radiator Shield LHD - 61772600Price on requestContact us for price and availability
3361776200Ferrari Radiator Shield RHD - 61776200Price on requestContact us for price and availability
3461772400Ferrari Bonnet Support - 61772400SupersededOrder 61898200 instead
3461898200Ferrari Bonnet Support - 61898200$173.36Available, ships in 3-6 days
3561176200Ferrari Bracket - 61176200$18.44Available, ships in 3-6 days
3561861200Ferrari Bracket - 61861200SupersededOrder 61176200 instead
3660640200Ferrari Support LHD GTS - 60640200Price on requestContact us for price and availability
3660640100Ferrari Support RHD GTS - 60640100$49.74Available, ships in 3-6 days
3761748500Ferrari LH Front Space Frame - 61748500Price on requestContact us for price and availability
3860421203Ferrari RH Panel GTS - 60421203$119.25Available, ships in 3-6 days
3860421302Ferrari LH Panel GTS - 60421302$98.84Available, ships in 3-6 days
3961854600Ferrari RH Strip - 61854600$18.44Available, ships in 3-6 days
4061844700Ferrari Insulation Ver/Us/Sa - 61844700$56.16Available, ships in 3-6 days
4161850300Ferrari RH Plate LHD - 61850300$22.92Available, ships in 3-6 days
4161851400Ferrari RH Plate RHD - 61851400$31.05Available, ships in 3-6 days
4260259306Ferrari LH Plate LHD - 60259306$24.57Available, ships in 3-6 days
4261883300Ferrari LH Plate RHD - 61883300$20.41Available, ships in 3-6 days
4361793300Ferrari 208/328 Support-61793300$110.00In stock
4361846900Ferrari Support RHD - 61846900$119.83Available, ships in 3-6 days
4461862800Ferrari Boot Floor Panel - 61862800SupersededOrder 61989200 instead
4461989200Ferrari Boot Floor Panel - 61989200$1,883.60Contact us to order
4560810000Ferrari Cover - 60810000$52.17Available, ships in 3-6 days
60252509Ferrari LH Door Hinge Post - 60252509Price on requestContact us for price and availability
61009700Ferrari LH Panel GTB - 61009700Price on requestContact us for price and availability
60260304Ferrari LH Roof Frame Tubing GTB - 60260304Price on requestContact us for price and availability
60295300Ferrari LH Side GTB - 60295300Price on requestContact us for price and availability
60351004Ferrari Reinforcement LHD - 60351004Price on requestContact us for price and availability
61009600Ferrari RH Panel GTB - 61009600Price on requestContact us for price and availability
60260205Ferrari RH Roof Frame Tubing GTB - 60260205$279.24Available, ships in 3-6 days
-61010500Ferrari Roof Frame Assy GTB - 61010500$1,629.47Available, ships in 3-6 days
