Ferrari 328 GTB/GTS (1985) — Body Shell - Inner Elements (For U.S. And Sa Version) (diagram 105)

Exploded view of the body shell - inner elements (for u.s. and sa version) on the Ferrari 328 GTB/GTS (1985), with 72 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

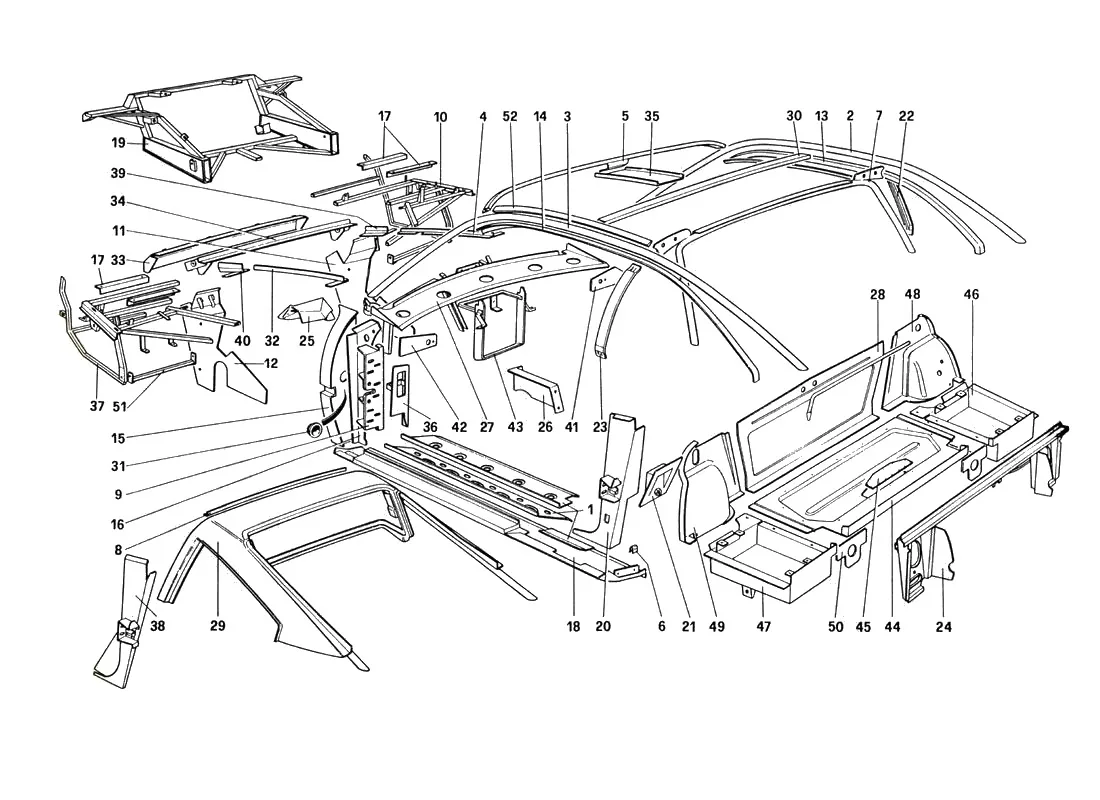

Ferrari 328 GTB/GTS (1985) Body Shell - Inner Elements (For U.S. And Sa Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160303203Ferrari RH Door Sill Assy GTB - 60303203Price on requestContact us for price and availability
160303302Ferrari LH Door Sill Assy GTB - 60303302Price on requestContact us for price and availability
160419504Ferrari RH Door Sill Assy GTS - 60419504Price on requestContact us for price and availability
160419603Ferrari LH Door Sill Assy GTS - 60419603Price on requestContact us for price and availability
260260205Ferrari RH Roof Frame Tubing GTB - 60260205$279.24Available, ships in 3-6 days
360260304Ferrari LH Roof Frame Tubing GTB - 60260304Price on requestContact us for price and availability
460350808Ferrari RH Stiffening - 60350808Price on requestContact us for price and availability
560371309Ferrari Roof Support Rail GTB - 60371309$348.55Available, ships in 3-6 days
660361801Ferrari Clip - 60361801Price on requestContact us for price and availability
760296001Ferrari Roll Bar - 60296001$167.13Available, ships in 3-6 days
861885400Ferrari Angle - 61885400$36.63Available, ships in 3-6 days
960285202Ferrari Bracket - 60285202$152.24Available, ships in 3-6 days
1061743400Ferrari RH Front Frame - 61743400Price on requestContact us for price and availability
1161775900Ferrari RH Shield - 61775900$102.43Special order, ships in 7-14 days
1261776000Ferrari LH Shield - 61776000$107.54Available, ships in 3-6 days
1360260106Ferrari RH Rail GTB - 60260106$186.99Available, ships in 3-6 days
1460260007Ferrari LH Rail GTB - 60260007Price on requestContact us for price and availability
1560252400Ferrari RH Door Hinge Post - 60252400$62.60Available, ships in 3-6 days
1560252500Ferrari Hinge Post LH Door - 60252500Price on requestContact us for price and availability
1660397106Ferrari RH Pillar Insert GTS - 60397106$58.57Available, ships in 3-6 days
1660397205Ferrari LH Pillar Insert GTS - 60397205$53.97Available, ships in 3-6 days
1661009800Ferrari RH Pillar Insert GTB - 61009800SupersededOrder 60397106 instead
1661009900Ferrari LH Pillar Insert GTB - 61009900SupersededOrder 60397205 instead
1760652200Ferrari Bracket - 60652200$57.60Available, ships in 3-6 days
1860003803Ferrari RH Outer Sill Panel - 60003803Price on requestContact us for price and availability
1860003902Ferrari LH Outer Sill Panel - 60003902Price on requestContact us for price and availability
19129904Ferrari Front Chassis Section Ver/Us - 129904Price on requestContact us for price and availability
2060302403Ferrari RH Panel GTB - 60302403$198.83Available, ships in 3-6 days
2060295201Ferrari RH Side GTB - 60295201SupersededOrder 60302403 instead
2060295300Ferrari LH Side GTB - 60295300Price on requestContact us for price and availability
2160347705Ferrari Support - 60347705$45.56Available, ships in 3-6 days
2260260403Ferrari RH Upright Panel GTB - 60260403$136.58Available, ships in 3-6 days
2360260502Ferrari LH Upright Panel GTB - 60260502$453.58Available, ships in 3-6 days
2461805700Ferrari Rear Frame - 61805700$601.83Available, ships in 3-6 days
2561851800Ferrari Bracket LHD - 61851800$73.18Available, ships in 3-6 days
2660106903Ferrari Support LHD - 60106903Price on requestContact us for price and availability
2761862500Ferrari Reinforcement - 61862500$166.23Special order, ships in 7-14 days
2861805800Ferrari Shield - 61805800$315.58Available, ships in 3-6 days
2960879800Ferrari Top Assy GTS - 60879800$2,666.94Available, ships in 3-6 days
2961128800Ferrari Roof Assy GTS - 61128800SupersededOrder 60879800 instead
3060371705Ferrari Bracket - 60371705$25.15Available, ships in 3-6 days
3160284304Ferrari Plug - 60284304$9.32Available, ships in 3-6 days
3260350907Ferrari LH Stiffening LHD - 60350907$22.60Available, ships in 3-6 days
3260350709Ferrari Reinforcement - 60350709$22.60Available, ships in 3-6 days
3361772600Ferrari Radiator Shield LHD - 61772600Price on requestContact us for price and availability
3461898200Ferrari Bonnet Support - 61898200$173.36Available, ships in 3-6 days
3560371002Ferrari Reinforcement - 60371002$9.85Available, ships in 3-6 days
3660640200Ferrari Support LHD GTS - 60640200Price on requestContact us for price and availability
3761743500Ferrari LH Front Frame Ver/Us - 61743500$195.12Available, ships in 3-6 days
3860432002Ferrari RH Side Panel GTS - 60432002$70.09Available, ships in 3-6 days
3860432101Ferrari LH Side GTS - 60432101$70.09Available, ships in 3-6 days
3961854600Ferrari RH Strip - 61854600$18.44Available, ships in 3-6 days
4061854700Ferrari LH Strip - 61854700$19.32Available, ships in 3-6 days
4161850300Ferrari RH Plate LHD - 61850300$22.92Available, ships in 3-6 days
4260259306Ferrari LH Plate LHD - 60259306$24.57Available, ships in 3-6 days
4361793300Ferrari 208/328 Support-61793300$110.00In stock
4461828600Ferrari Panel - 61828600$1,002.53Special order, ships in 7-14 days
4560810000Ferrari Cover - 60810000$52.17Available, ships in 3-6 days
4661806200Ferrari RH Bottom Panel - 61806200$328.17Available, ships in 3-6 days
4761806300Ferrari LH Bottom Panel - 61806300$328.17Available, ships in 3-6 days
4861883700Ferrari RH Shield - 61883700$56.45Available, ships in 3-6 days
4961883800Ferrari LH Shield - 61883800Price on requestContact us for price and availability
5061806900Ferrari Sheet - 61806900$17.92Available, ships in 3-6 days
5161746100Ferrari Frame - 61746100$43.89Available, ships in 3-6 days
5260371606Ferrari Reinforcement - 60371606$19.32Available, ships in 3-6 days
60252509Ferrari LH Door Hinge Post - 60252509Price on requestContact us for price and availability
60302304Ferrari LH Panel GTB - 60302304Price on requestContact us for price and availability
61009700Ferrari LH Panel GTB - 61009700Price on requestContact us for price and availability
61010100Ferrari LH Roof Frame Tubing GTB - 61010100$196.57Special order, ships in 7-14 days
61009600Ferrari RH Panel GTB - 61009600Price on requestContact us for price and availability
61010000Ferrari RH Roof Frame Tubing GTB - 61010000$168.15Available, ships in 3-6 days
-60370905Ferrari Internal Roof Panel Complete GTB - 60370905Price on requestContact us to order
