Ferrari 328 GTB/GTS (1985) — Passenger And Luggage Compartments Insulation (Not For U.S. And Sa Version) (diagram 106)

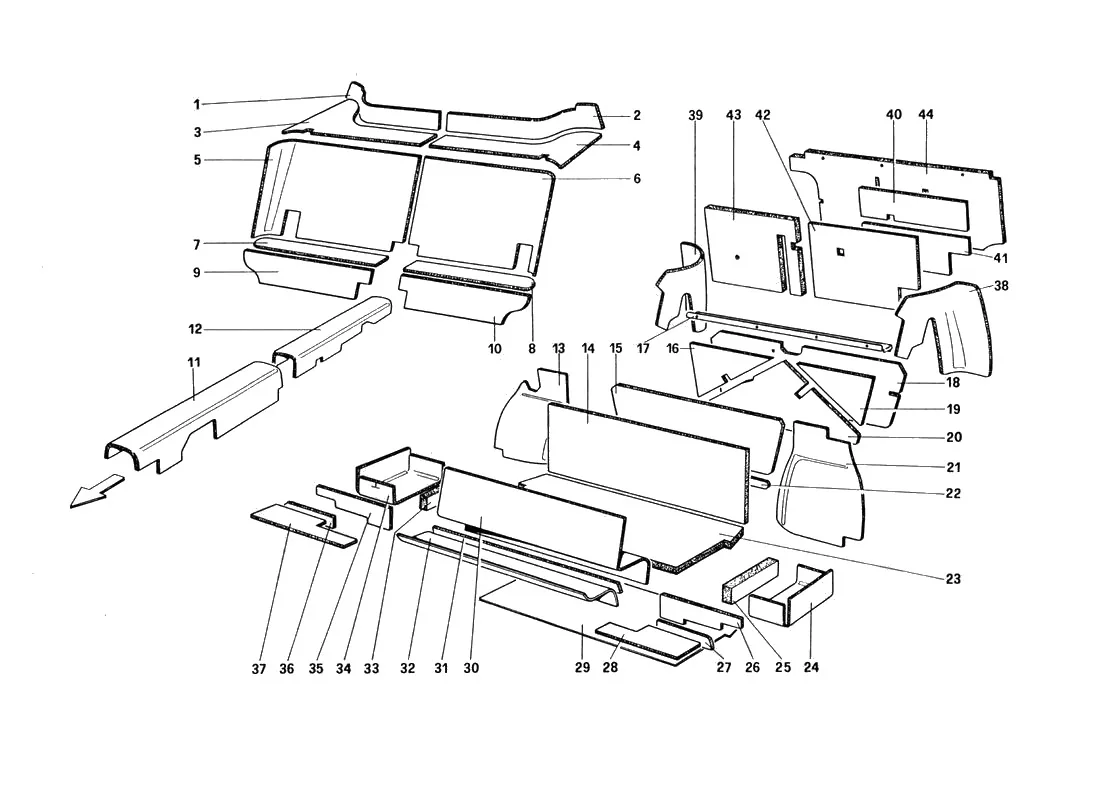

Exploded view of the passenger and luggage compartments insulation (not for u.s. and sa version) on the Ferrari 328 GTB/GTS (1985), with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 60352804 | Ferrari RH Insulation GTS - 60352804 | Price on request | Contact us for price and availability |
| 2 | 60352903 | Ferrari LH Insulation GTS - 60352903 | Price on request | Contact us for price and availability |
| 3 | 60412202 | Ferrari RH Insulation GTB - 60412202 | Price on request | Contact us for price and availability |
| 3 | 60353000 | Ferrari RH Insulation GTS - 60353000 | Price on request | Contact us for price and availability |
| 4 | 60412301 | Ferrari LH Insulation GTB - 60412301 | Price on request | Contact us for price and availability |
| 4 | 60353109 | Ferrari LH Insulation GTS - 60353109 | Price on request | Contact us for price and availability |
| 5 | 60158201 | Ferrari RH Instrument Panel Assy GTB - 60158201 | Price on request | Contact us to order |
| 5 | 60353208 | Ferrari RH Instrument Panel Assy GTS - 60353208 | Price on request | Contact us to order |
| 6 | 60158300 | Ferrari LH Instrument Panel Assy GTB - 60158300 | Price on request | Contact us to order |
| 6 | 60353307 | Ferrari LH Instrument Panel Assy GTS - 60353307 | Price on request | Contact us to order |
| 7 | 60158409 | Ferrari RH Instrument Panel Assy GTB - 60158409 | Price on request | Contact us to order |
| 8 | 60158508 | Ferrari LH Instrument Panel Assy GTB - 60158508 | Price on request | Contact us to order |
| 9 | 60158607 | Ferrari RH Insulation GTB - 60158607 | Price on request | Contact us for price and availability |
| 9 | 60353604 | Ferrari RH Insulation GTS - 60353604 | Price on request | Contact us for price and availability |
| 10 | 60158706 | Ferrari LH Insulation GTB - 60158706 | Price on request | Contact us for price and availability |
| 10 | 60353703 | Ferrari LH Insulation GTS - 60353703 | Price on request | Contact us for price and availability |
| 11 | 60218307 | Ferrari Front Insulation RHD - 60218307 | Price on request | Contact us for price and availability |
| 11 | 60109006 | Ferrari Front Insulation LHD - 60109006 | $252.69 | Available, ships in 3-6 days |
| 12 | 61860100 | Ferrari Insulation LHD - 61860100 | Price on request | Contact us for price and availability |
| 12 | 61860500 | Ferrari Insulation RHD - 61860500 | Price on request | Contact us for price and availability |
| 13 | 61798900 | Ferrari Insulation - 61798900 | $37.45 | Available, ships in 3-6 days |
| 14 | 61798800 | Ferrari Insulation - 61798800 | $211.48 | Special order, ships in 7-14 days |
| 15 | 61799700 | Ferrari Insulation - 61799700 | Price on request | Contact us for price and availability |
| 16 | 61275800 | Ferrari Insulation - 61275800 | Price on request | Contact us for price and availability |
| 17 | 61830800 | Ferrari Insulation Fixing Support - 61830800 | $61.77 | Available, ships in 3-6 days |
| 18 | 61823600 | Ferrari Insulation - 61823600 | Price on request | Contact us for price and availability |
| 19 | 61275600 | Ferrari Insulation - 61275600 | Price on request | Contact us for price and availability |
| 20 | 61275700 | Ferrari Insulation - 61275700 | Price on request | Contact us for price and availability |
| 21 | 61799000 | Ferrari Insulation 5mm - 61799000 | $42.76 | Available, ships in 3-6 days |
| 22 | 61799400 | Ferrari Insulation - 61799400 | Price on request | Contact us for price and availability |
| 23 | 61818900 | Ferrari Insulation - 61818900 | $934.87 | Special order, ships in 7-14 days |
| 24 | 61799100 | Ferrari Insulation - 61799100 | $49.22 | Available, ships in 3-6 days |
| 25 | 61819000 | Ferrari Insulation - 61819000 | $21.52 | Available, ships in 3-6 days |
| 26 | 61799600 | Ferrari Insulation - 61799600 | $22.62 | Available, ships in 3-6 days |
| 27 | 61876000 | Ferrari Insulation - 61876000 | $8.78 | Special order, ships in 7-14 days |
| 28 | 61875800 | Ferrari Insulation - 61875800 | Price on request | Contact us for price and availability |
| 29 | 61875400 | Ferrari Insulation - 61875400 | $402.14 | Available, ships in 3-6 days |
| 30 | 61799300 | Ferrari Insulation - 61799300 | Price on request | Contact us for price and availability |
| 31 | 61875900 | Ferrari Insulation - 61875900 | $21.52 | Special order, ships in 7-14 days |
| 32 | 61875600 | Ferrari Insulation - 61875600 | $195.23 | Available, ships in 3-6 days |
| 33 | 61819100 | Ferrari Insulation - 61819100 | $21.52 | Available, ships in 3-6 days |
| 34 | 61799200 | Ferrari Insulation - 61799200 | $55.37 | Available, ships in 3-6 days |
| 35 | 61799500 | Ferrari Insulation - 61799500 | Price on request | Contact us for price and availability |
| 36 | 61876100 | Ferrari Insulation - 61876100 | $9.22 | Available, ships in 3-6 days |
| 37 | 61875700 | Ferrari Insulation - 61875700 | $23.23 | Available, ships in 3-6 days |
| 38 | 61278500 | Ferrari RH Wheelhouse Insulation - 61278500 | Price on request | Contact us for price and availability |
| 39 | 61278600 | Ferrari LH Wheelhouse Insulation - 61278600 | Price on request | Contact us for price and availability |
| 40 | 61275200 | Ferrari Insulation - 61275200 | Price on request | Contact us for price and availability |
| 41 | 61275300 | Ferrari Insulation - 61275300 | Price on request | Contact us for price and availability |
| 42 | 61275400 | Ferrari Insulation - 61275400 | Price on request | Contact us for price and availability |
| 43 | 61275500 | Ferrari Insulation - 61275500 | Price on request | Contact us for price and availability |
| 44 | 61276100 | Ferrari Insulation - 61276100 | Price on request | Contact us for price and availability |
| - | 60412608 | Ferrari Insulation Passenger Compartment GTB - 60412608 | Price on request | Contact us for price and availability |
| - | 60352705 | Ferrari Insulation Passenger Compartment GTS - 60352705 | Price on request | Contact us for price and availability |
