Ferrari 328 GTB/GTS (1985) — Rear Bonnet And Luggage Compartment Covering (diagram 109)

Exploded view of the rear bonnet and luggage compartment covering on the Ferrari 328 GTB/GTS (1985), with 89 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

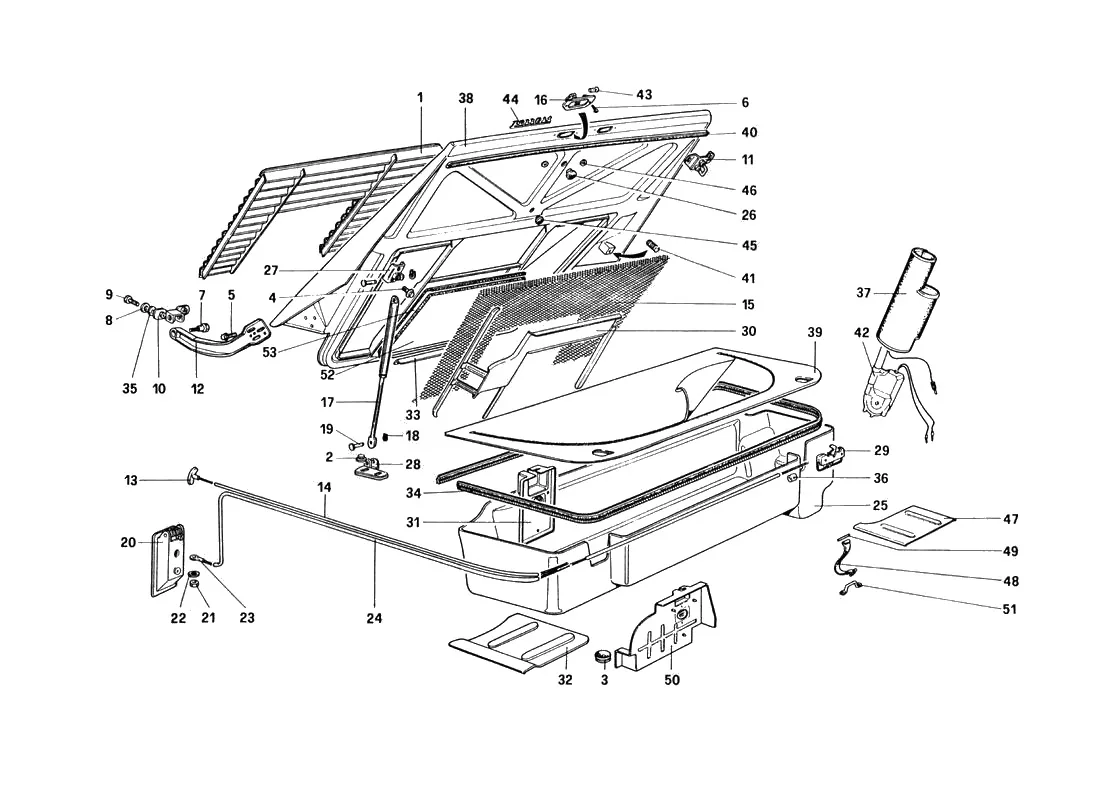

Ferrari 328 GTB/GTS (1985) Rear Bonnet And Luggage Compartment Covering exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160427408Ferrari Engine Grille - 60427408Price on requestContact us for price and availability
213832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
314507187Ferrari Rubber Plug - 14507187$13.95Available, ships in 3-6 days
3108585Ferrari Rubber Grommet - 108585$2.32Available, ships in 3-6 days
413835871Ferrari Self locking flange Bolt - 13835871$2.93Available, ships in 3-6 days
513838971Ferrari Self locking Bolt - 13838971SupersededOrder 13838911 instead
513838911Ferrari Screw M8 x 16 TEBD - 13838911$7.86Available, ships in 3-6 days
620297800Ferrari Screw - 20297800Price on requestContact us for price and availability
760017506Ferrari Pin - 60017506$11.77Available, ships in 3-6 days
812646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
916043321Ferrari Bolt - 16043321SupersededOrder 16043324 instead
916043324Ferrari Screw M8 x 18 - 16043324$0.33Available, ships in 3-6 days
1060257706Ferrari RH Fixed Hinge - 60257706$51.14Available, ships in 3-6 days
1060257805Ferrari LH Fixed Hinge - 60257805$51.14Available, ships in 3-6 days
1160560100Ferrari Bonnet Catch - 60560100Price on requestContact us for price and availability
1260256807Ferrari RH Engine Lid Hinge - 60256807Price on requestContact us for price and availability
1260256906Ferrari LH Engine Lid Hinge - 60256906Price on requestContact us for price and availability
1360510500Ferrari Emergency Pull Cable with Handle - 60510500Price on requestContact us for price and availability
1460024502Ferrari Pipe - 60024502Price on requestContact us for price and availability
1560434602Ferrari Grille - 60434602Price on requestContact us for price and availability
1660044906Ferrari Number Plate Lamp - 60044906SupersededOrder 186180 instead
1760592800Ferrari 308/328 Rear Deck Lid Lift Support - 60592800$74.80In stock
1811087876Ferrari Circlip - 11087876$0.98Available, ships in 3-6 days
1960599500Ferrari Pin - 60599500$26.32Available, ships in 3-6 days
2063011800Ferrari Hood Release Handle - 63011800$538.54In stock
2060086105Ferrari Internal Boot Release Handle - 60086105SupersededOrder 63011800 instead
2115896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
2115896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
22149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
2210615371Ferrari Washer - 10615371SupersededOrder 149951 instead
2360277001Ferrari 308/328 Engine Lid Release Cable - 60277001$74.98In stock
2460024601Ferrari Sheath - Engine Cover Release Cable - 60024601Price on requestContact us for price and availability
2460191509Ferrari Sheath Bonnet Cable LHD - 60191509Price on requestContact us for price and availability
2561813100Ferrari Boot Carpet - 61813100Price on requestContact us for price and availability
2561814800Ferrari Boot Carpet - 61814800$562.02Available, ships in 3-6 days
2640134108Ferrari Rubber Plug - 40134108Price on requestContact us for price and availability
2760597700Ferrari RH Bracket - 60597700$191.86Available, ships in 3-6 days
2760597800Ferrari LH Bracket - 60597800$191.86Available, ships in 3-6 days
2860597900Ferrari RH Bracket - 60597900$77.70Available, ships in 3-6 days
2860598000Ferrari LH Bracket - 60598000Price on requestContact us for price and availability
2960277407Ferrari Lock Mechanism - 60277407SupersededOrder 60023405 instead
2960023405Ferrari Lock Mechanism - 60023405$970.56Available, ships in 3-6 days
3060735800Ferrari Water Shield Panel - 60735800Price on requestContact us for price and availability
3161903700Ferrari Boot Carpet Shield - 61903700Price on requestContact us for price and availability
3161927700Ferrari Boot Carpet Shield RHD - 61927700Price on requestContact us for price and availability
3261813200Ferrari LH Carpet - 61813200$49.09Available, ships in 3-6 days
3261815000Ferrari LH Carpet - 61815000Price on requestContact us for price and availability
3360218906Ferrari Channel - 60218906$40.52Available, ships in 3-6 days
34MC3477/1Ferrari Rear Trunk Weatherstrip Seal - MC3477/1$21.26In stock
3460286200Ferrari Boot Rubber 4 METRES - 60286200$19.70Available, ships in 3-6 days
3510615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
3512601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
3660276607Ferrari Clevis - 60276607$66.45Special order, ships in 7-14 days
3761903600Ferrari Protection - 61903600$255.78Special order, ships in 7-14 days
3860525400Ferrari Rear Engine Cover Without Spoiler - 60525400$6,891.95Available, ships in 3-6 days
3861024000Ferrari Rear Engine Cover With Spoiler - 61024000Price on requestContact us for price and availability
3960114808Ferrari Rear Storage Zipper Boot Cover - 60114808$547.80In stock
4060564600Ferrari Boot Lid Edge Trim - 60564600Price on requestContact us for price and availability
4160568000Ferrari Rubber - 60568000$6.15Available, ships in 3-6 days
4261717900Ferrari Electric Aerial - 61717900Price on requestContact us for price and availability
43101524Ferrari Bulb 12v 5w - 101524Price on requestContact us for price and availability
4314145990Ferrari Bulb 12V 5W - 14145990$5.44Special order, ships in 7-14 days
4461025000Ferrari Motif Badge - 61025000$96.80In stock
45112926Ferrari Plug - 112926$0.77Available, ships in 3-6 days
4688074800Ferrari Emblem Mounting Clip - 88074800$1.10In stock
4660324506Ferrari Safety Clip - 60324506SupersededOrder 88074800 instead
4761814900Ferrari RH Boot Carpet Panel - 61814900Price on requestContact us for price and availability
4820171005Ferrari Belt - 20171005Price on requestContact us for price and availability
4920103107Ferrari Pin - 20103107Price on requestContact us for price and availability
5061904000Ferrari RH Plate - 61904000$277.09Special order, ships in 7-14 days
5061904100Ferrari LH Plate - 61904100$277.09Special order, ships in 7-14 days
5130029904Ferrari Clip - 30029904Price on requestContact us for price and availability
5261940100Ferrari Insulation - 61940100Price on requestContact us for price and availability
5361940200Ferrari Insulation - 61940200Price on requestContact us for price and availability
61569200Ferrari Belt Bracket - 61569200Price on requestContact us for price and availability
61497600Ferrari Bonnet Lock - 61497600Price on requestContact us for price and availability
60025608Ferrari Boot Rubber - 60025608$19.70Available, ships in 3-6 days
20083002Ferrari Bulb 12V-5W - 20083002SupersededOrder 14145990 instead
20178000Ferrari Bulb 12V-5W - 20178000SupersededOrder 14145990 instead
60622900Ferrari Electric Aerial - 60622900Price on requestContact us for price and availability
60871800Ferrari Electric Aerial - 60871800Price on requestContact us for price and availability
61897500Ferrari Electric Aerial LHD - 61897500Price on requestContact us for price and availability
61896300Ferrari Engine Cover Grille - 61896300Price on requestContact us for price and availability
146446Ferrari Number Plate Lamp - 146446SupersededOrder 186180 instead
175204Ferrari Number Plate Lamp - 175204SupersededOrder 186180 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
60025707Ferrari Seal - 60025707Price on requestContact us for price and availability
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
