Ferrari 328 GTB/GTS (1985) — Glasses (diagram 111)

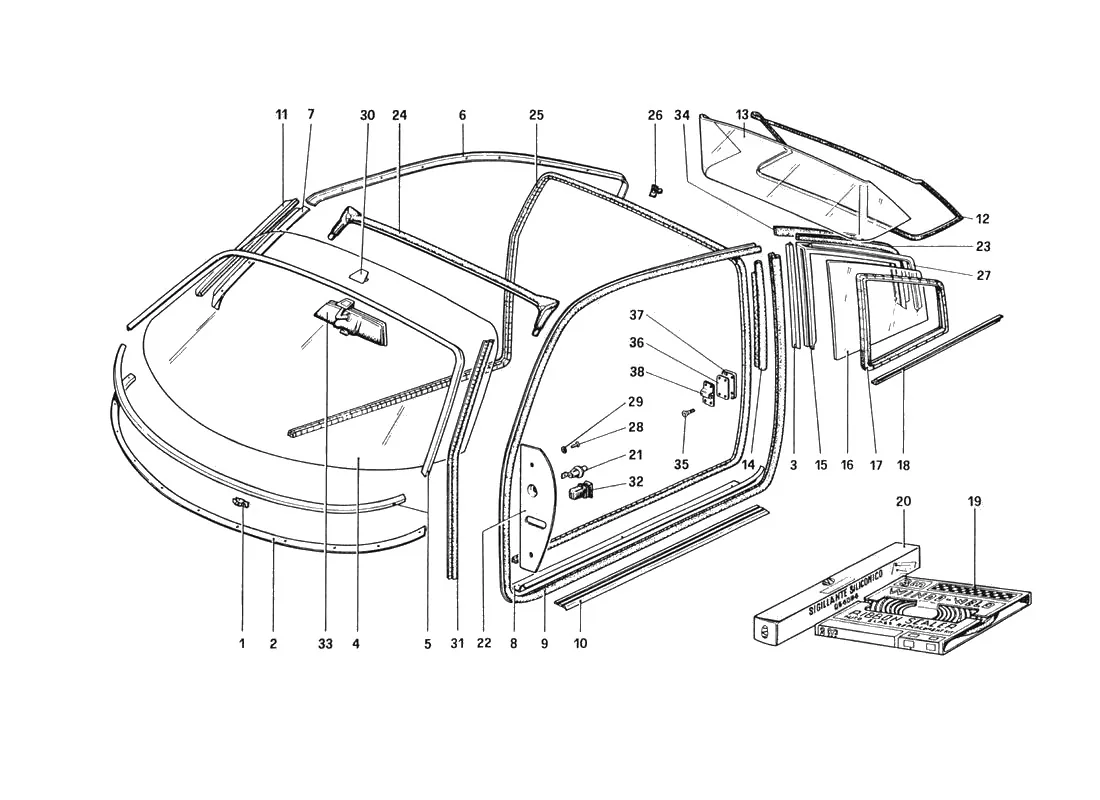

Exploded view of the glasses on the Ferrari 328 GTB/GTS (1985), with 76 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 328 GTB/GTS (1985) Glasses exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
140208209Ferrari Clip - 40208209$8.39Available, ships in 3-6 days
260121506Ferrari Screen/Dashboard Fillet - 60121506Price on requestContact us for price and availability
360517100Ferrari Rear Qtr Light Seal - 60517100$190.71Special order, ships in 7-14 days
460019908Ferrari Front Windscreen Top Tint & Clear - 60019908$2,638.17Contact us to order
460019908/BFerrari 308 Front Screen Clear Blue Toptint - 60019908/B$2,622.64Available, ships in 3-6 days
560295102Ferrari Frontscreen Moulding - 60295102$1,170.05Available, ships in 3-6 days
660248002Ferrari RH Drip Rail GTB - 60248002Price on requestContact us for price and availability
660248101Ferrari LH Drip Rail GTB - 60248101Price on requestContact us for price and availability
760269800Ferrari RH Front Drip Rail Moulding GTB - 60269800$145.46Available, ships in 3-6 days
760269909Ferrari LH Front Drip Rail Moulding GTB - 60269909$158.89Available, ships in 3-6 days
760872500Ferrari RH Moulding GTS - 60872500$246.33Available, ships in 3-6 days
760872600Ferrari LH Moulding GTS - 60872600$246.33Available, ships in 3-6 days
860099207Ferrari RH Lower Moulding GTB - 60099207Price on requestContact us for price and availability
860099306Ferrari LH Lower Moulding GTB - 60099306Price on requestContact us for price and availability
960298007Ferrari 308/328 Door Rubber Seal GTB - 60298007$25.98In stock
9MC3476/1Ferrari Door Rubber *Per Metre* - MC3476/1$24.46Available, ships in 3-6 days
1060116704Ferrari Door Kick Strip - 60116704$275.64Available, ships in 3-6 days
1160375904Ferrari Gasket GTS - 60375904Price on requestContact us for price and availability
1260370301Ferrari 308/328 Rear Window Weatherstrip Rubber - 60370301$657.80In stock
1360338704Ferrari Rear Screen - 60338704Price on requestContact us to order
1361896800Ferrari Rear Heated Screen - 61896800Price on requestContact us to order
1460313301Ferrari Gasket GTB - 60313301Price on requestContact us for price and availability
1560262904Ferrari RH Rear Qtr Light Frame GTB - 60262904Price on requestContact us for price and availability
1560263704Ferrari LH Rear Qtr Light Frame GTB - 60263704Price on requestContact us for price and availability
1660264801Ferrari RH Rear Qtr Light Glass GTB - 60264801Price on requestContact us to order
1660162807Ferrari RH Rear Qtr Light Glass GTS - 60162807$178.10Contact us to order
1660264900Ferrari LH Rear Qtr Light Glass GTB - 60264900Price on requestContact us to order
1660162906Ferrari LH Rear Qtr Light Glass GTS - 60162906$227.68Contact us to order
1760058302Ferrari Rear Qtr Light Rubber GTB - 60058302$899.70Available, ships in 3-6 days
1760522800Ferrari RH Rear Qtr Light Rubber GTS - 60522800$74.58Available, ships in 3-6 days
1760522900Ferrari LH Rear Qtr Light Rubber GTS - 60522900$87.82Available, ships in 3-6 days
1860267804Ferrari RH Rear Lower Moulding GTB - 60267804$287.27Available, ships in 3-6 days
1860267903Ferrari LH Rear Lower Moulding GTB - 60267903$283.82Available, ships in 3-6 days
1960089505Ferrari Sealing Cord - 60089505SupersededOrder 360508611 instead
2161827300Ferrari Courtesy Switch - 61827300SupersededOrder 141894 instead
21141894Ferrari Courtesy Light Switch - 141894$51.48Available, ships in 3-6 days
2260320603Ferrari RH Hinge Plate GTB - 60320603$39.43Available, ships in 3-6 days
2260370103Ferrari RH Hinge Plate GTS - 60370103$79.77Available, ships in 3-6 days
2260368602Ferrari LH Hinge Plate GTB - 60368602Price on requestContact us for price and availability
2260368701Ferrari LH Hinge Plate GTS - 60368701$90.64Available, ships in 3-6 days
2260291903Ferrari LH Hinge Plate GTB - 60291903$39.94Available, ships in 3-6 days
2260339306Ferrari LH Hinge Plate GTS - 60339306$97.17Available, ships in 3-6 days
2361762400Ferrari Rear Qtr Light Seal GTB - 61762400$14.39Available, ships in 3-6 days
2460607900Ferrari Roof Rubber GTS - 60607900$690.86Available, ships in 3-6 days
2561705500Ferrari Rear Roof Rubber GTS - 61705500$236.40Available, ships in 3-6 days
2640065005Ferrari Rear Quarter Window Mount Rubber - 40065005$31.03Special order, ships in 7-14 days
2760516900Ferrari RH Gasket GTB - 60516900$118.70Special order, ships in 7-14 days
2760517000Ferrari LH Gasket GTB - 60517000Price on requestContact us for price and availability
2820297800Ferrari Screw - 20297800Price on requestContact us for price and availability
29149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
2910615371Ferrari Washer - 10615371SupersededOrder 149951 instead
3060715400Ferrari Adhesive Pad - 60715400SupersededOrder 62811700 instead
3062811700Ferrari Mirror Fixing Pad - 62811700$15.43Available, ships in 3-6 days
3160609100Ferrari R/Rubber - 60609100$22.52Available, ships in 3-6 days
31MC3476/20Ferrari 246GTS Rear Door/Roof Rubber Per Metre - MC3476/20$22.39Available, ships in 3-6 days
3260801500Ferrari Rubber Cover - 60801500$10.05Available, ships in 3-6 days
3360032703Ferrari Interior Rear View Mirror - 60032703$860.64Available, ships in 3-6 days
3360032703/AFerrari Interior Rear View Mirror - 60032703/A$860.64Available, ships in 3-6 days
3460762700Ferrari Gasket - 60762700Price on requestContact us for price and availability
3520287504Ferrari Countersunk Allen Screw 6x1.00x15 - 20287504$4.66Available, ships in 3-6 days
3660163003Ferrari Door Spacer - 60163003$14.85Available, ships in 3-6 days
3760602400Ferrari Gasket - 60602400$74.23Available, ships in 3-6 days
3820019105Ferrari Right Door Lock Striker - 20019105$175.98Contact us
3820019204Ferrari LH Lock Striker - 20019204$1,189.44Available, ships in 3-6 days
62402000Ferrari Door Rubber Seal GTB - 62402000$24.59Available, ships in 3-6 days
60295003Ferrari Glass Trim - 60295003SupersededOrder 60370301 instead
50047109Ferrari Interior Rear View Mirror - 50047109Price on requestContact us for price and availability
60058401Ferrari LH Rear Qtr Light Rubber - 60058401Price on requestContact us for price and availability
152-30-213-00Ferrari LH Striker Plate - 152-30-213-00Price on requestContact us for price and availability
60115805Ferrari R/Screen Surround - 60115805SupersededOrder 60370301 instead
60339207Ferrari Rear Screen - 60339207Price on requestContact us to order
61425000Ferrari RH Qtr Light Rubber - 61425000$33.98Available, ships in 3-6 days
152-30-212-00Ferrari RH Striker Plate - 152-30-212-00Price on requestContact us for price and availability
60380201Ferrari Roof Rubber GTS - 60380201$209.49Available, ships in 3-6 days
20312401Ferrari Sealing Cord - 20312401SupersededOrder 360508611 instead
360508611Ferrari Window Weld 3M Tape Per Metre - 360508611$61.17Available, ships in 3-6 days
