Ferrari 328 GTB/GTS (1985) — Interior Trim, Accessories And Seats (diagram 112)

Exploded view of the interior trim, accessories and seats on the Ferrari 328 GTB/GTS (1985), with 92 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

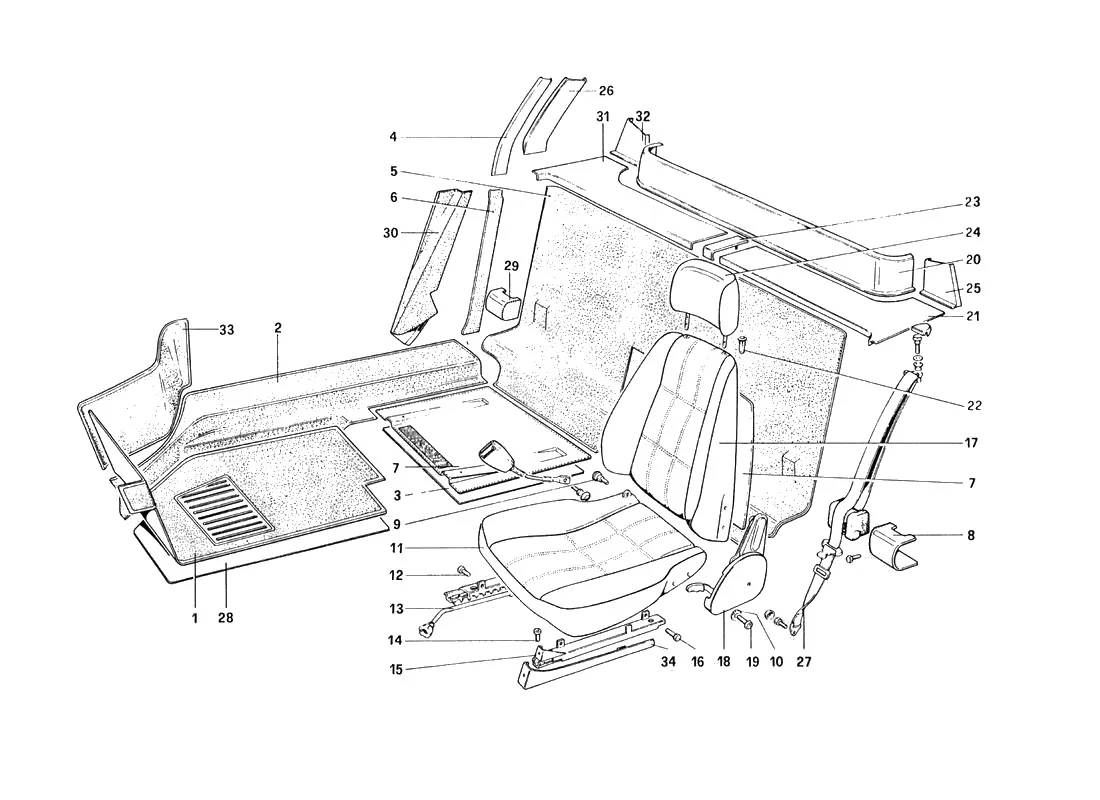

Ferrari 328 GTB/GTS (1985) Interior Trim, Accessories And Seats exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160744300Ferrari RH Front Carpet LHD GTB - 60744300Price on requestContact us for price and availability
160776500Ferrari RH Front Carpet LHD GTS - 60776500Price on requestContact us for price and availability
160143104Ferrari LH Front Carpet LHD GTB - 60143104$1,356.98Available, ships in 3-6 days
161361600Ferrari LH Front Carpet LHD GTS - 61361600Price on requestContact us for price and availability
160807800Ferrari LH Front Carpet RHD GTB - 60807800Price on requestContact us for price and availability
160811400Ferrari LH Front Carpet RHD GTS - 60811400$150.55Special order, ships in 7-14 days
161365300Ferrari RH Front Carpet RHD GTB - 61365300Price on requestContact us for price and availability
161365800Ferrari RH Front Carpet RHD GTS - 61365800Price on requestContact us for price and availability
160143104/KFerrari Interior Carpet Set LHD GTB - 60143104/K$1,348.99Available, ships in 3-6 days
260080207Ferrari RH Carpet LHD GTB - 60080207Price on requestContact us for price and availability
260080306Ferrari LH Carpet LHD GTB - 60080306Price on requestContact us for price and availability
260228400Ferrari RH Carpet RHD GTB - 60228400Price on requestContact us for price and availability
260228509Ferrari LH Carpet RHD GTB - 60228509Price on requestContact us for price and availability
260377603Ferrari RH Carpet LHD GTS - 60377603Price on requestContact us for price and availability
260377702Ferrari LH Carpet LHD GTS - 60377702Price on requestContact us for price and availability
260379005Ferrari RH Carpet RHD GTS - 60379005Price on requestContact us for price and availability
260379104Ferrari LH Carpet RHD GTS - 60379104Price on requestContact us for price and availability
361597300Ferrari Under Carpet LHD - 61597300Price on requestContact us for price and availability
361602400Ferrari Under Carpet RHD - 61602400Price on requestContact us for price and availability
460997700Ferrari RH Moulding with Cover GTB - 60997700$207.52Available, ships in 3-6 days
460997800Ferrari LH Moulding with Cover GTB - 60997800Price on requestContact us for price and availability
561352200Ferrari Carpet GTB - 61352200Price on requestContact us for price and availability
561360800Ferrari Carpet GTS - 61360800Price on requestContact us for price and availability
661459100Ferrari RH Moulding GTB - 61459100$245.22Available, ships in 3-6 days
661459200Ferrari LH Moulding GTB - 61459200$165.91Available, ships in 3-6 days
760209400Ferrari Seatback Drivers - 60209400Price on requestContact us for price and availability
760765400Ferrari Seatback Passenger with Pocket - 60765400$999.75Available, ships in 3-6 days
861917300Ferrari LH Cover GTS - 61917300$281.25Available, ships in 3-6 days
861943300Ferrari LH/RH Cover GTB - 61943300$194.25Available, ships in 3-6 days
861943300/DFerrari LH/RH Cover GTB - 61943300/D$193.10Available, ships in 3-6 days
960773600Ferrari Seat Screw - 60773600$17.33Available, ships in 3-6 days
1010615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
1012601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
1161786000Ferrari RH Seat Cushion - 61786000Price on requestContact us for price and availability
1161786600Ferrari LH Seat Cushion - 61786600Price on requestContact us for price and availability
1161787000Ferrari Seat Covering - 61787000$1,313.91Available, ships in 3-6 days
1216043221Ferrari Bolt M8 x 16 - 16043221$0.19Available, ships in 3-6 days
1360369006Ferrari RH Seat Runner With Adjuster - 60369006Price on requestContact us for price and availability
1360369105Ferrari LH Seat Runner With Adjuster - 60369105Price on requestContact us for price and availability
1440294308Ferrari Seat Retaining Bolt M8 x 20 - 40294308$5.58Available, ships in 3-6 days
1561880500Ferrari RH Seat Runner - 61880500$145.80Available, ships in 3-6 days
1561880600Ferrari LH Seat Runner - 61880600$145.80Available, ships in 3-6 days
1640294407Ferrari Screw - 40294407$2.99Available, ships in 3-6 days
1761786200Ferrari RH Seat Back - 61786200Price on requestContact us to order
1761786800Ferrari LH Seat Back - 61786800$1,425.58Contact us to order
1761787100Ferrari Seat Covering - 61787100$1,829.19Available, ships in 3-6 days
1860856300Ferrari RH Seat Tilt Mechanism - 60856300$232.03Available, ships in 3-6 days
1860856400Ferrari LH Seat Tilt Mechanism - 60856400Price on requestContact us for price and availability
1914306524Ferrari Screw M8 x 30mm - 14306524$0.65Available, ships in 3-6 days
1914306426Ferrari Seat Retaining Bolt - 14306426SupersededOrder 14306524 instead
2060997400Ferrari Moulding - 60997400SupersededOrder 62481800 instead
2062481800Ferrari Moulding - 62481800$480.66Available, ships in 3-6 days
2160997600Ferrari LH Moulding GTB - 60997600$367.60Available, ships in 3-6 days
2161134900Ferrari LH Moulding GTS - 61134900$442.63Available, ships in 3-6 days
2220058905Ferrari Headrest Plastic Insert - 20058905$106.39Available, ships in 3-6 days
2360998400Ferrari Moulding To Chassis No - 60998400Price on requestContact us for price and availability
2460757100Ferrari Headrest - 60757100$738.05Special order, ships in 7-14 days
2460748300Ferrari Covering - 60748300Price on requestContact us for price and availability
2560998200Ferrari LH Moulding GTB - 60998200$218.15Available, ships in 3-6 days
2661134200Ferrari Lining GTS - 61134200Price on requestContact us for price and availability
2661135000Ferrari RH Moulding GTS - 61135000$280.68Available, ships in 3-6 days
2661135200Ferrari LH Moulding GTS - 61135200$280.68Available, ships in 3-6 days
2760791600Ferrari Safety Belts - 60791600Price on requestContact us for price and availability
27113890Ferrari Safety Belts Set - 113890Price on requestContact us for price and availability
2861597100Ferrari RH Front Under Carpet LHD - 61597100Price on requestContact us for price and availability
2861597200Ferrari LH Front Under Carpet LHD - 61597200Price on requestContact us for price and availability
2861602200Ferrari RH Front Under Carpet RHD - 61602200Price on requestContact us for price and availability
2861602300Ferrari LH Front Under Carpet RHD - 61602300Price on requestContact us for price and availability
2961917200Ferrari RH Cover GTS - 61917200$259.19Available, ships in 3-6 days
3060787500Ferrari RH Moulding GTS - 60787500Price on requestContact us for price and availability
3060787600Ferrari LH Moulding GTS - 60787600$115.34Available, ships in 3-6 days
3160997500Ferrari RH Moulding GTB - 60997500Price on requestContact us for price and availability
3161134800Ferrari RH Moulding GTS - 61134800$421.53Special order, ships in 7-14 days
3260998100Ferrari RH Moulding GTB - 60998100$218.15Available, ships in 3-6 days
3360079506Ferrari RH Carpet LHD GTB - 60079506Price on requestContact us for price and availability
3360079605Ferrari LH Carpet LHD GTB - 60079605Price on requestContact us for price and availability
3360377405Ferrari RH Carpet LHD GTS - 60377405Price on requestContact us for price and availability
3360377504Ferrari LH Carpet LHD GTS - 60377504Price on requestContact us for price and availability
3360563700Ferrari LH Carpet RHD GTB - 60563700Price on requestContact us for price and availability
3360564300Ferrari LH Carpet RHD GTS - 60564300Price on requestContact us for price and availability
3360563600Ferrari RH Carpet RHD GTB - 60563600Price on requestContact us for price and availability
3360564200Ferrari RH Carpet RHD GTS - 60564200Price on requestContact us for price and availability
3461880700Ferrari RH Moulding - 61880700$272.88Available, ships in 3-6 days
3461880800Ferrari LH Moulding - 61880800$271.28Special order, ships in 7-14 days
60147709Ferrari LH Seat Runner With Adjuster - 60147709Price on requestContact us for price and availability
61863300Ferrari Lining - 61863300Price on requestContact us for price and availability
60147600Ferrari RH Seat Runner With Adjuster - 60147600Price on requestContact us for price and availability
14306521Ferrari Screw - 14306521SupersededOrder 14306524 instead
113892Ferrari Seat Belt - 113892Price on requestContact us for price and availability
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
-61786500Ferrari LH Seat Complete LHD - 61786500Price on requestContact us to order
-61785900Ferrari RH Seat Complete LHD - 61785900Price on requestContact us to order
