Ferrari 328 GTB/GTS (1985) — Instrument Panel (diagram 114)

Exploded view of the instrument panel on the Ferrari 328 GTB/GTS (1985), with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

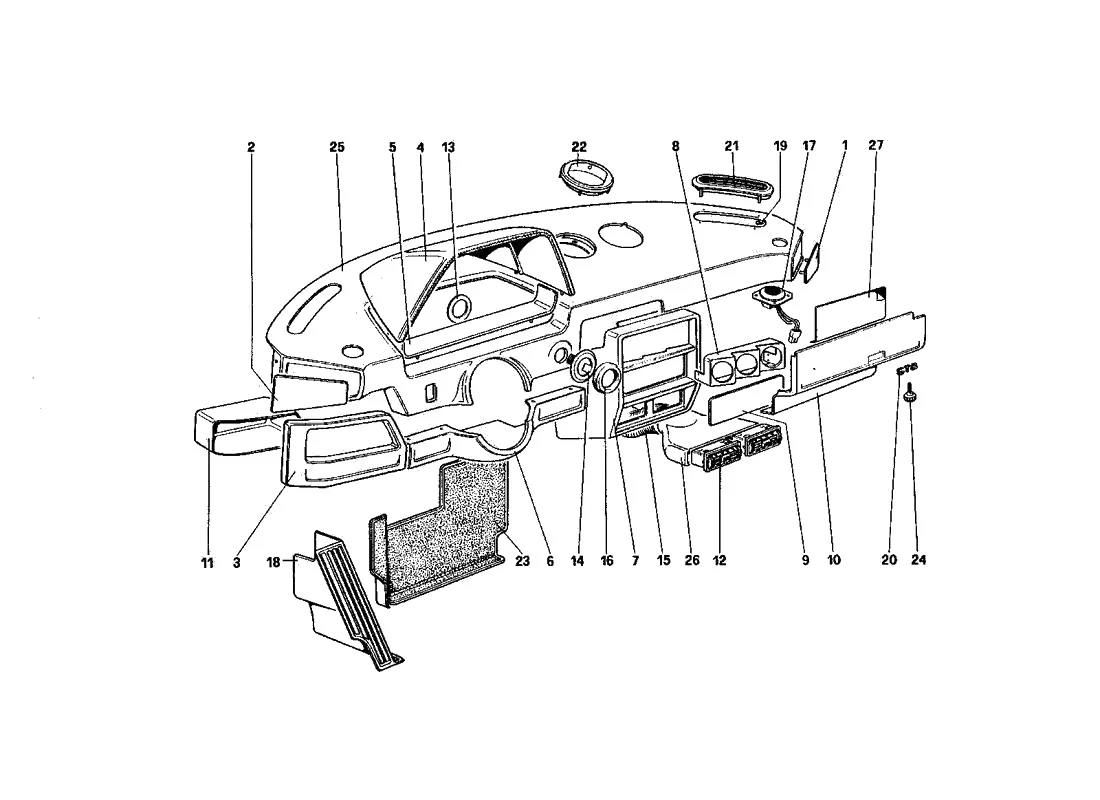

Ferrari 328 GTB/GTS (1985) Instrument Panel exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
162316600Ferrari RH Moulding - 62316600$248.25Available, ships in 3-6 days
262316700Ferrari LH Moulding - 62316700$248.25Available, ships in 3-6 days
360752400Ferrari Lining LHD - 60752400$58.13Available, ships in 3-6 days
362316100Ferrari Moulding LHD - 62316100$411.93Available, ships in 3-6 days
360807000Ferrari Lining RHD - 60807000$11.71Special order, ships in 7-14 days
361852000Ferrari Moulding RHD - 61852000$369.72Special order, ships in 7-14 days
462316300Ferrari Dashboard Pod - 62316300$1,021.32Available, ships in 3-6 days
462318900Ferrari Lining - 62318900Price on requestContact us for price and availability
561893000Ferrari Moulding LHD - 61893000$109.79Available, ships in 3-6 days
561902800Ferrari Moulding RHD - 61902800$94.97Available, ships in 3-6 days
662317300Ferrari Cover LHD - 62317300$498.47Available, ships in 3-6 days
661852600Ferrari Cover RHD - 61852600$312.51Special order, ships in 7-14 days
762317500Ferrari Dashboard LHD - 62317500$840.59Contact us to order
761852700Ferrari Dashboard RHD - 61852700$618.58Available, ships in 3-6 days
861812500Ferrari Moulding LHD - 61812500$251.70Available, ships in 3-6 days
861853000Ferrari Moulding RHD - 61853000Price on requestContact us for price and availability
861812500/DFerrari Moulding LHD - 61812500/D$250.22Available, ships in 3-6 days
962316900Ferrari Plate - 62316900Price on requestContact us for price and availability
1062319400Ferrari Lining LHD - 62319400$36.86Available, ships in 3-6 days
1062317200Ferrari Lid LHD GTB - 62317200$453.83Special order, ships in 7-14 days
1061813900Ferrari Lid LHD GTS - 61813900$457.57Available, ships in 3-6 days
1061852500Ferrari Cover RHD - 61852500Price on requestContact us for price and availability
1061873100Ferrari Lid RHD GTS - 61873100Price on requestContact us for price and availability
1061856000Ferrari Lining RHD - 61856000Price on requestSpecial order, ships in 7-14 days
1162316200Ferrari Glove Box LHD - 62316200Price on requestContact us for price and availability
1161852100Ferrari Glove Box RHD - 61852100Price on requestContact us for price and availability
1260124302Ferrari Inlet Vent - 60124302Price on requestContact us for price and availability
1360164101Ferrari Fixing Nut - 60164101Price on requestContact us for price and availability
1460164001KITFerrari 308/328 Ignition Switch Cover Trim Kit - 60164001KIT$302.50Contact us
1560133204Ferrari Air Con Hose - 60133204Price on requestContact us for price and availability
1662320300Ferrari Ring - 62320300Price on requestContact us for price and availability
17127296Ferrari Speaker - 127296Price on requestContact us for price and availability
1861352500Ferrari Footrest LHD GTB - 61352500Price on requestContact us for price and availability
1861361400Ferrari Footrest LHD GTS - 61361400Price on requestContact us for price and availability
1960048501Ferrari Screw Clip - 60048501$1.42Available, ships in 3-6 days
2061743700Ferrari Dashboard Motif "GTB" - 61743700$97.31Available, ships in 3-6 days
2061813800Ferrari Dashboard Motif "GTS" - 61813800Price on requestContact us for price and availability
2160044401Ferrari 308/328 Dashboard Air Vent - 60044401$295.68In stock
2261738800Ferrari 328 Air Vent - 61738800$438.90In stock
2361352400Ferrari Carpet under pedals LHD GTB - 61352400Price on requestContact us for price and availability
2361361300Ferrari Carpet under pedals LHD GTS - 61361300Price on requestContact us for price and availability
2361365200Ferrari Carpet under pedals RHD GTB - 61365200Price on requestContact us for price and availability
2361365700Ferrari Carpet under pedals RHD GTS - 61365700Price on requestContact us for price and availability
2461802700Ferrari Screw - 61802700Price on requestContact us for price and availability
2562317100Ferrari Dashboard LHD - 62317100$2,483.54Contact us to order
2561852400Ferrari Dashboard RHD - 61852400Price on requestContact us to order
2660375201Ferrari AC Conveyor LHD - 60375201Price on requestContact us for price and availability
2660375301Ferrari A/C Conveyor RHD - 60375301Price on requestContact us for price and availability
2761917800Ferrari Relay Label - 61917800$36.05Available, ships in 3-6 days
60375300Ferrari AC Conveyor RHD - 60375300Price on requestContact us for price and availability
60164009Ferrari Plug - 60164009Price on requestContact us for price and availability
62462600Ferrari Speaker - 62462600Price on requestContact us for price and availability

All 328 GTB/GTS (1985) diagrams
