Ferrari 328 GTB/GTS (1985) — Instruments And Accessories (diagram 115)

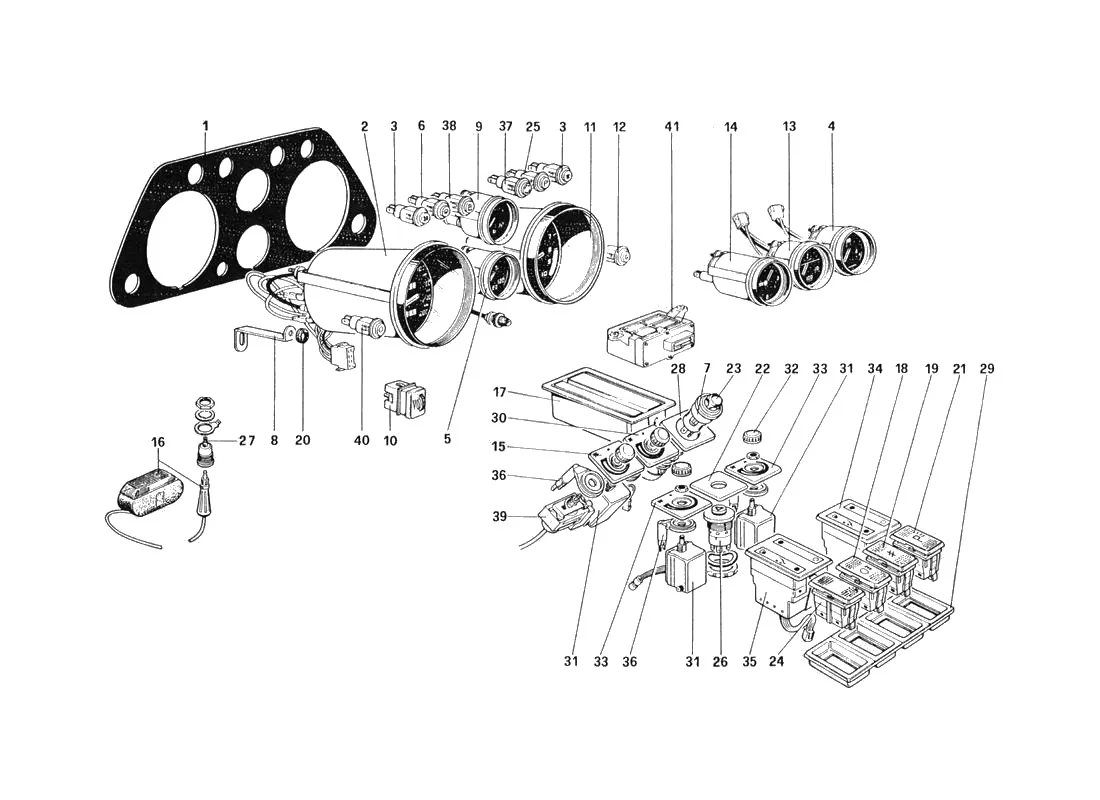

Exploded view of the instruments and accessories on the Ferrari 328 GTB/GTS (1985), with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/115.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 61812200 | Ferrari Dash Fascia Plate - 61812200 | Price on request | Contact us for price and availability |
| 1 | 61812000 | Ferrari Dash Fascia Plate - 61812000 | $221.99 | Available, ships in 3-6 days |
| 2 | 125941 | Ferrari Speedometer KPH - 125941 | Price on request | Contact us for price and availability |
| 2 | 128560 | Ferrari Speedometer MPH - 128560 | $885.38 | Available, ships in 3-6 days |
| 2 | 128586 | Ferrari Speedometer KPH - 128586 | Price on request | Contact us for price and availability |
| 2 | 125951 | Ferrari Speedometer MPH - 125951 | $617.65 | Special order, ships in 7-14 days |
| 3 | 61414500 | Ferrari 208/308/328 Fan Light Switch - 61414500 | $39.60 | In stock |
| 4 | 125945 | Ferrari Fuel Level Gauge - 125945 | Price on request | Contact us for price and availability |
| 4 | 127919 | Ferrari Fuel Level Gauge - 127919 | $191.32 | Available, ships in 3-6 days |
| 5 | 125942 | Ferrari Water Temperature Gauge LHD - 125942 | Price on request | Contact us for price and availability |
| 5 | 125948 | Ferrari Water Temperature Gauge RHD - 125948 | $195.48 | Available, ships in 3-6 days |
| 6 | 61414600 | Ferrari 308/328 Defroster Light Switch-61414600 | $39.60 | In stock |
| 6 | 40083602 | Ferrari Yellow Warning Light - 40083602 | $49.50 | In stock |
| 6 | 61809300 | Ferrari Fog Light Warning Lamp - 61809300 | $70.09 | Available, ships in 3-6 days |
| 7 | 226941 | Ferrari Lighter Insert - 226941 | $47.85 | In stock |
| 8 | 60078003 | Ferrari Bracket - 60078003 | Price on request | Contact us for price and availability |
| 9 | 125944 | Ferrari Oil Pressure Gauge LHD - 125944 | Price on request | Contact us for price and availability |
| 9 | 125950 | Ferrari Oil Pressure Gauge RHD - 125950 | $1,073.53 | Available, ships in 3-6 days |
| 10 | 61838500 | Ferrari Rheostat - 61838500 | Price on request | Contact us for price and availability |
| 11 | 125940 | Ferrari Rev Counter - 125940 | Price on request | Contact us for price and availability |
| 11 | 125947 | Ferrari 328 Rpm Gauge - 125947 | $576.00 | Special order, ships in 7-14 days |
| 12 | 60771300 | Ferrari Battery Warning Light - 60771300 | $53.90 | Contact us |
| 13 | 125943 | Ferrari Oil Temperature Gauge LHD - 125943 | Price on request | Contact us for price and availability |
| 13 | 125949 | Ferrari Oil Temperature Gauge RHD - 125949 | $191.99 | Available, ships in 3-6 days |
| 14 | 125946 | Ferrari Time Clock - 125946 | Price on request | Contact us for price and availability |
| 15 | 61838700 | Ferrari Fascia Plate - 61838700 | $39.11 | In stock |
| 16 | 40179202 | Ferrari Inspection Lamp - 40179202 | $1,547.46 | Available, ships in 3-6 days |
| 17 | 62322600 | Ferrari Ashtray - 62322600 | Price on request | Contact us for price and availability |
| 18 | 126823 | Ferrari 328 Front Fog Light Switch - 126823 | $89.60 | In stock |
| 18 | 126822 | Ferrari Rear Fog Light Switch - 126822 | $95.43 | In stock |
| 18 | 61802900 | Ferrari 328/F40 Switch Blank - 61802900 | $23.65 | In stock |
| 19 | 126819 | Ferrari 208/328 Radio Antenna Switch-126819 | $39.60 | In stock |
| 20 | 60160801 | Ferrari Washer - 60160801 | $1.67 | Available, ships in 3-6 days |
| 21 | 126820 | Ferrari 208/328 Parking Light Switch - 126820 | $39.60 | In stock |
| 22 | 61838900 | Ferrari Fascia Plate - 61838900 | Price on request | Contact us for price and availability |
| 23 | 226942 | Ferrari Lighter - 226942 | $26.39 | In stock |
| 23 | 61107500 | Ferrari Cigarette Lighter Insert Only - 61107500 | Superseded | Order 226942 instead |
| 24 | 126821 | Ferrari 328 Rear Window Defroster Switch - 126821 | $39.60 | In stock |
| 25 | 61804600 | Ferrari 328 Parking Brake Dash Light-61804600 | $27.50 | In stock |
| 26 | 61803000 | Ferrari Hazard Warning Switch - 61803000 | Price on request | Contact us for price and availability |
| 27 | 60710500 | Ferrari Socket - 60710500 | Price on request | Contact us for price and availability |
| 28 | 61838800 | Ferrari Fascia Plate - 61838800 | $10.44 | Available, ships in 3-6 days |
| 29 | 61819700 | Ferrari Plate - 61819700 | $83.22 | Available, ships in 3-6 days |
| 30 | 61838600 | Ferrari Fascia Plate - 61838600 | Price on request | Contact us for price and availability |
| 31 | 61807900 | Ferrari Air Con Speed Control Switch - 61807900 | Price on request | Contact us for price and availability |
| 32 | 61808000 | Ferrari Climate Control Knob - 61808000 | $87.45 | In stock |
| 33 | 61808100 | Ferrari Fascia Plate - 61808100 | Price on request | Contact us for price and availability |
| 34 | 61808200 | Ferrari RH Vent Display - 61808200 | Price on request | Contact us for price and availability |
| 35 | 61808300 | Ferrari LH Vent Display - 61808300 | Price on request | Contact us for price and availability |
| 36 | 62329200 | Ferrari Lamp - 62329200 | $97.25 | Available, ships in 3-6 days |
| 37 | 61414700 | Ferrari 308/328 Slow Down Warning Switch - 61414700 | $26.40 | In stock |
| 38 | 61414800 | Seatbelt Warning Buzzer Switch - 61414800 | $33.00 | In stock |
| 39 | 61931100 | Ferrari Thermostat Switch - 61931100 | $161.90 | Available, ships in 3-6 days |
| 39 | 61931100/A | Ferrari Thermostat Switch - 61931100/A | $177.48 | Available, ships in 3-6 days |
| 41 | 126180 | Ferrari Rev Counter Switch - 126180 | $221.55 | Available, ships in 3-6 days |
| 62373900 | Ferrari Air Con Speed Control Switch - 62373900 | Price on request | Contact us for price and availability | |
| 62618000 | Ferrari Air Con Speed Control Switch - 62618000 | Price on request | Contact us for price and availability | |
| 61504100 | Ferrari Cigarette Lighter Plug - 61504100 | Superseded | Order 226942 instead | |
| 257-80-908-00 | Ferrari Fan Control Knob - 257-80-908-00 | Price on request | Contact us for price and availability | |
| 61917100 | Ferrari Hazard Switch - 61917100 | Superseded | Order 124086 instead | |
| 124079 | Ferrari Knob - 124079 | Price on request | Contact us for price and availability | |
| 130831 | Ferrari Oil Temperature Gauge - 130831 | Price on request | Contact us for price and availability | |
| 130832 | Ferrari Oil Temperature Gauge - 130832 | $181.97 | Available, ships in 3-6 days | |
| 62367000 | Ferrari Rheostat - 62367000 | Price on request | Contact us for price and availability |
