Ferrari 328 GTB/GTS (1985) — Electrical System - Cables, Fuses And Relays (diagram 116)

Exploded view of the electrical system - cables, fuses and relays on the Ferrari 328 GTB/GTS (1985), with 76 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

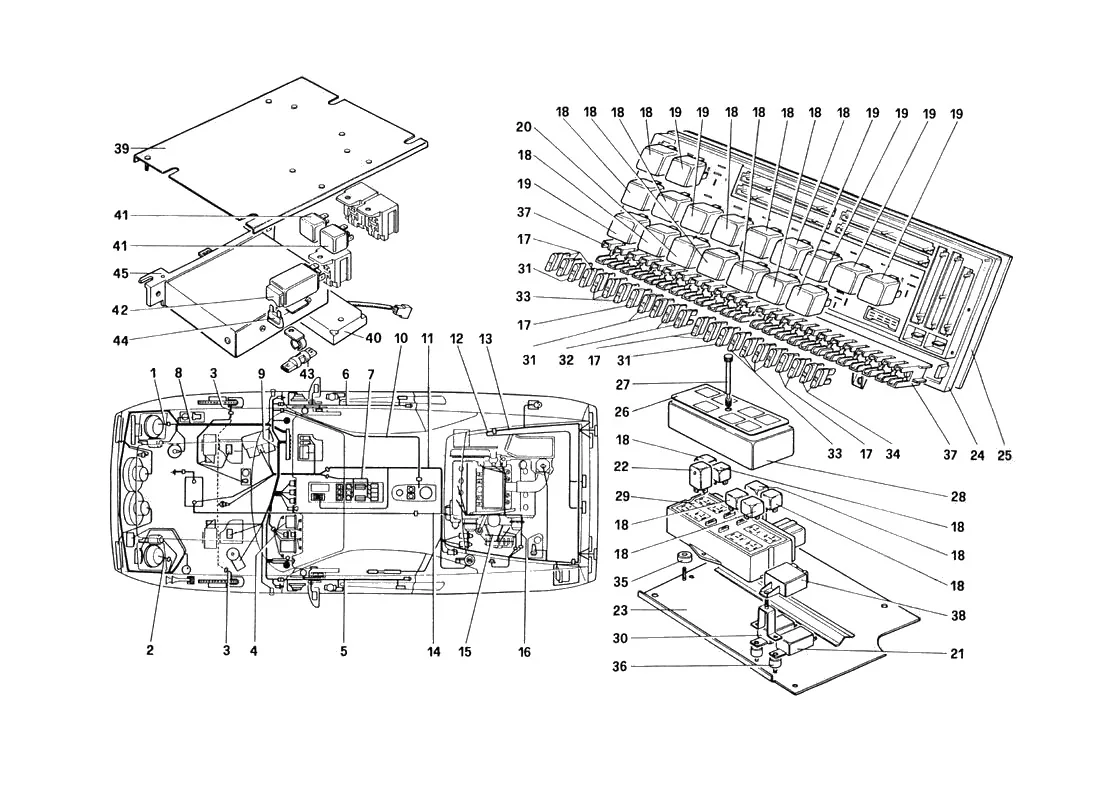

Ferrari 328 GTB/GTS (1985) Electrical System - Cables, Fuses And Relays exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1115607Ferrari RH Head Lamp Cable - 115607$22.92Available, ships in 3-6 days
2115608Ferrari LH Head Lamp Cable - 115608$22.92Available, ships in 3-6 days
3116372Ferrari Front Brake Cable - 116372$16.89Available, ships in 3-6 days
461836700Ferrari Instrument Cable - 61836700$100.55Available, ships in 3-6 days
461886100Ferrari Instrument Cable - 61886100$117.86Available, ships in 3-6 days
461836800Ferrari Instrument Cable - 61836800$136.58Available, ships in 3-6 days
461916700Ferrari Instrument Cable - 61916700$170.93Available, ships in 3-6 days
561803800Ferrari LH Door Cable - 61803800Price on requestContact us for price and availability
561919800Ferrari LH Door Cable - 61919800Price on requestContact us for price and availability
561886000Ferrari LH Door Cable RHD - 61886000$114.39Available, ships in 3-6 days
661803700Ferrari RH Door Cable LHD - 61803700Price on requestContact us for price and availability
661919700Ferrari RH Door Cable - 61919700$205.56Available, ships in 3-6 days
661885900Ferrari RH Door Cable RHD - 61885900$144.46Available, ships in 3-6 days
761917900Ferrari Tunnel Cable - 61917900Price on requestContact us for price and availability
861803300Ferrari Front Cable - 61803300Price on requestContact us for price and availability
861808500Ferrari Front Cable - 61808500$559.92Available, ships in 3-6 days
861885700Ferrari Front Cable - 61885700$538.99Available, ships in 3-6 days
961803400Ferrari Dashboard Cables - 61803400$1,871.03Available, ships in 3-6 days
961808600Ferrari Dashboard Cables - 61808600$430.81Available, ships in 3-6 days
961885800Ferrari Dashboard Cables - 61885800SupersededOrder 61955200 instead
961955200Ferrari Dashboard Cables - 61955200$1,217.56Available, ships in 3-6 days
961916500Ferrari Dashboard Cables - 61916500SupersededOrder 61955300 instead
961955300Ferrari Dashboard Cables - 61955300$1,783.06Available, ships in 3-6 days
10117013Ferrari Roof Cable GTB - 117013$14.85Available, ships in 3-6 days
10117017Ferrari Interior Light Cable GTS - 117017Price on requestContact us for price and availability
1161803500Ferrari Rear Cable - 61803500$740.04Available, ships in 3-6 days
1161931400Ferrari Rear Cable - 61931400$1,230.15Available, ships in 3-6 days
1161808700Ferrari Rear Cable - 61808700$3,291.25Available, ships in 3-6 days
1261896000Ferrari Rear Bonnet Wiring Harness - 61896000$12.34Available, ships in 3-6 days
1361835100Ferrari Rear Lights Cable - 61835100$132.25Available, ships in 3-6 days
1361835500Ferrari Rear Lights Cable - 61835500Price on requestContact us for price and availability
1361916600Ferrari Rear Lights Cable - 61916600Price on requestContact us for price and availability
1461912600Ferrari Starter Motor Cable - 61912600Price on requestContact us for price and availability
14116415Ferrari Starter Motor Cable - 116415Price on requestContact us for price and availability
1561804000Ferrari Sensor Wiring Loom - 61804000Price on requestContact us for price and availability
1661803900Ferrari Engine Cable - 61803900Price on requestContact us for price and availability
1661931500Ferrari Engine Cable - 61931500Price on requestContact us for price and availability
1661809100Ferrari Engine Cable - 61809100Price on requestContact us for price and availability
17125242Ferrari Fuse 15Amp - 125242$1.02Available, ships in 3-6 days
1840130007Ferrari Relay - 40130007$29.15In stock
1940130106Ferrari Relay - 40130106$23.12Available, ships in 3-6 days
2040283905Ferrari Relay - 40283905$125.54Available, ships in 3-6 days
2161827800Ferrari Interior Light Delay Unit - 61827800$394.97Available, ships in 3-6 days
2261111200Ferrari Indicator Flasher Unit - 61111200SupersededOrder 61048000 instead
2261814700Ferrari Indicator Flasher Unit - 61814700$54.74Available, ships in 3-6 days
2250356609Ferrari Indicator Relay - 50356609SupersededOrder 61048000 instead
2361820100Ferrari Passenger Footrest LHD GTB - 61820100Price on requestContact us for price and availability
2361821800Ferrari Passenger Footrest LHD GTS - 61821800$97.37Special order, ships in 7-14 days
2361831400Ferrari Passenger Footrest RHD GTB - 61831400$77.13Available, ships in 3-6 days
2361848100Ferrari Passenger Footrest RHD GTS - 61848100$59.47Available, ships in 3-6 days
24116054Ferrari Fuse Board - 116054Price on requestContact us for price and availability
25116055Ferrari Rear Cover - 116055Price on requestContact us for price and availability
2661804500Ferrari Relay Lid Decor - 61804500$15.98Available, ships in 3-6 days
27116138Ferrari Screw - 116138$9.58Available, ships in 3-6 days
28127081Ferrari Relay Board Cover - 127081$58.65Available, ships in 3-6 days
2961804400Ferrari Electrical Relay Board - 61804400$333.77Available, ships in 3-6 days
3061827900Ferrari Wiper Delay Unit - 61827900Price on requestContact us for price and availability
31125240Ferrari Fuse 7.5A - 125240$1.04Available, ships in 3-6 days
32125241Ferrari Blade Fuse 10A - 125241$1.02Available, ships in 3-6 days
33125243Ferrari Fuse 20Amp - 125243$0.71Available, ships in 3-6 days
34126031Ferrari Fuse 25Amp - 126031$0.92Available, ships in 3-6 days
3561825600Ferrari Spacer - 61825600$2.30Available, ships in 3-6 days
3561876200Ferrari Spacer - 61876200$2.84Available, ships in 3-6 days
3761352100Ferrari Fuse Box - 61352100Price on requestContact us for price and availability
3861268300Ferrari Electronic Seat Belt Control Unit - 61268300$329.32Available, ships in 3-6 days
3861830700Ferrari Seat Belts Control Unit - 61830700SupersededOrder 61268300 instead
3961809200Ferrari ECU Plate - 61809200$78.81Available, ships in 3-6 days
4061402500Ferrari Catalytic Converter Control Unit - 61402500$1,178.00Special order, ships in 7-14 days
4261766200Ferrari Fuel Pump Relay - 61766200$239.80In stock
43121776Ferrari Diode - 121776$16.85Available, ships in 3-6 days
45127479Ferrari Electronic control unit - 127479$1,267.11Special order, ships in 7-14 days
61048000Ferrari Flasher Relay - 61048000$51.32In stock
11054990Ferrari Fuse 10Amp - 11054990$0.46Available, ships in 3-6 days
11055090Ferrari Fuse 15 Amp - 11055090$0.57Available, ships in 3-6 days
11055190Ferrari Fuse 20Amp - 11055190$0.38Available, ships in 3-6 days
125467Ferrari Fuse Box Assy - 125467Price on requestContact us for price and availability
