Ferrari 328 GTB/GTS (1985) — Heating System (diagram 120)

Exploded view of the heating system on the Ferrari 328 GTB/GTS (1985), with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

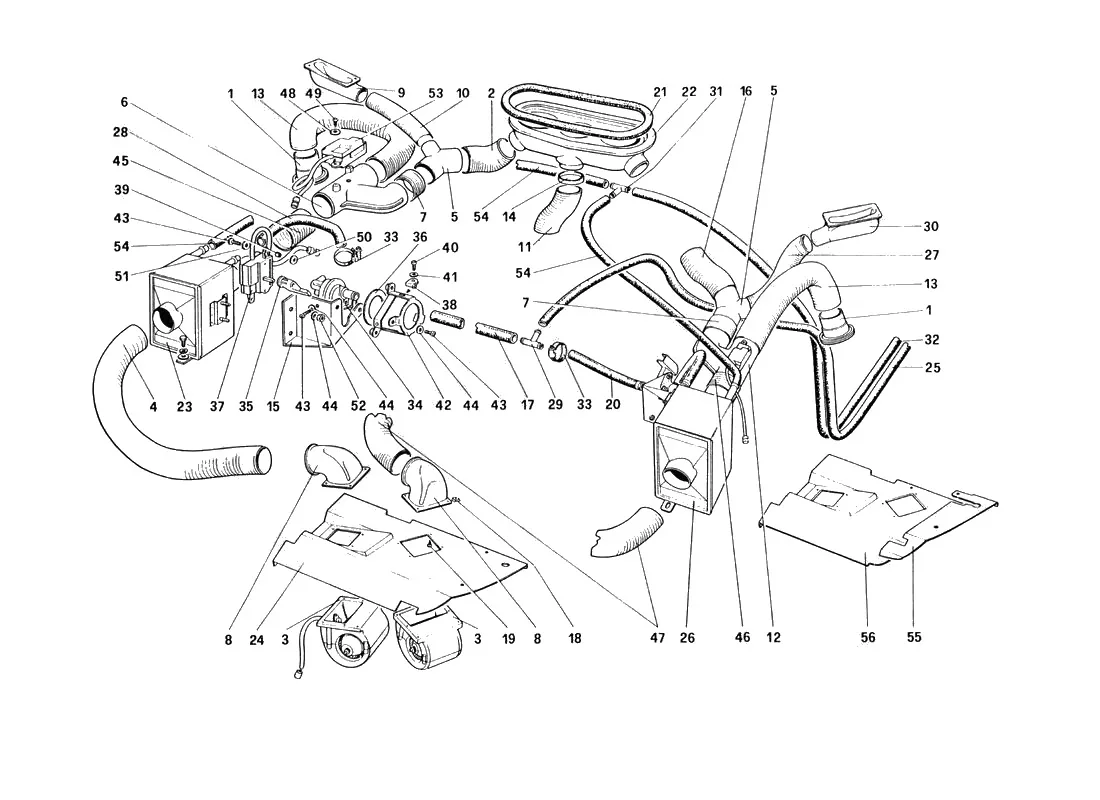

Ferrari 328 GTB/GTS (1985) Heating System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
50205707Ferrari Air Vent - 50205707Price on requestContact us for price and availability
50318807Ferrari Air Vent - 50318807Price on requestContact us for price and availability
50022805Ferrari Diverter - 50022805Price on requestContact us for price and availability
120308Ferrari Heater Valve - 120308Price on requestContact us for price and availability
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
127494Ferrari Lock Washer - 127494$0.50In stock
109752Ferrari Pipe - 109752Price on requestContact us for price and availability
60198504Ferrari RH Vent LHD / LH Vent RHD - 60198504$212.25Available, ships in 3-6 days
15902601Ferrari Screw - 15902601$0.12Special order, ships in 7-14 days
13000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10519304Ferrari Washer - 10519304Price on requestContact us for price and availability
12601171Ferrari Washer - 12601171SupersededOrder 12601174 instead
12604178Ferrari Washer - 12604178SupersededOrder 12601174 instead
14497801Ferrari Washer - 14497801Price on requestContact us for price and availability
12601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
160054400Ferrari Dash Air Vent - 60054400$877.72Special order, ships in 7-14 days
9, 3060055407Ferrari RH Vent LHD / LH Vent RHD - 60055407$108.39Available, ships in 3-6 days
2220142709Ferrari Diverter - 20142709$1,913.58Special order, ships in 7-14 days
31104303Ferrari T Piece Union - 104303Price on requestContact us for price and availability
3312179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
34126324Ferrari Heater Valve - 126324$688.07Available, ships in 3-6 days
4015642501Ferrari Screw - 15642501SupersededOrder 15902601 instead
44106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
45, 4661790500Ferrari Air Duct - 61790500Price on requestContact us for price and availability
5010519301Ferrari Washer - 10519301$0.59Available, ships in 3-6 days
5112601179Ferrari Wavy Washer 5mm - 12601179SupersededOrder 12601174 instead
5215896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
54122225Ferrari Water Hose - 122225Price on requestContact us for price and availability
