Ferrari 330 GT 2+2 Mk.1 — Bonnet (diagram 205)

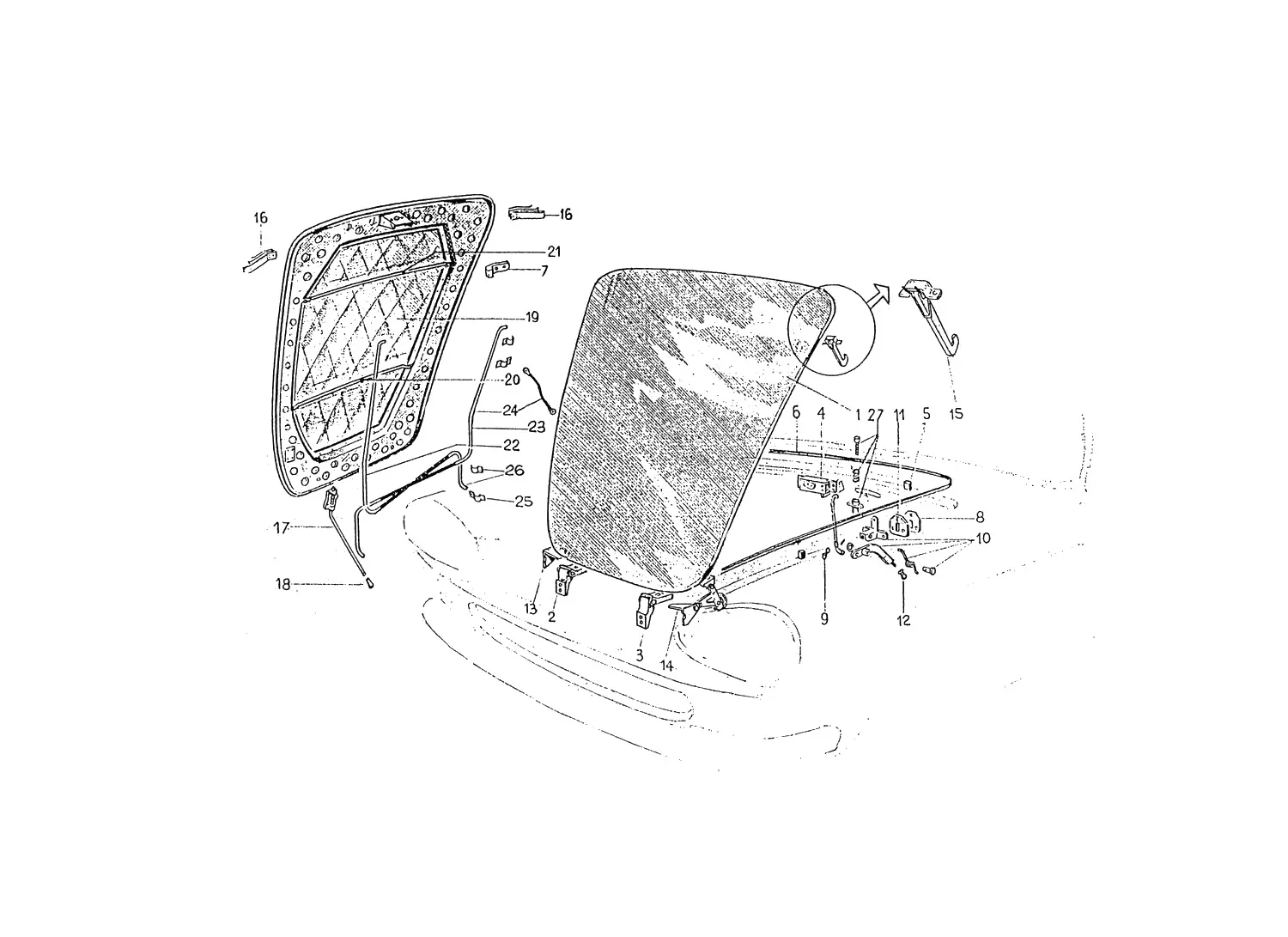

Exploded view of the bonnet on the Ferrari 330 GT 2+2 Mk.1, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 242-28-004-07 | Ferrari Bonnet Complete 330 GT Mk1 - 242-28-004-07 | Price on request | Contact us to order |
| 1 | 242-28-004-27 | Ferrari Bonnet Complete 330 GT Mk2 - 242-28-004-27 | Price on request | Contact us to order |
| 2 | 241-28-070-07 | Ferrari RH Bonnet Hinge - 241-28-070-07 | Price on request | Contact us for price and availability |
| 3 | 241-28-071-07 | Ferrari LH Bonnet Hinge - 241-28-071-07 | Price on request | Contact us for price and availability |
| 4 | 241-28-170-01 | Ferrari Bonnet Catch - 241-28-170-01 | Price on request | Contact us for price and availability |
| 5 | 239-28-194-00 | Ferrari Pad - 239-28-194-00 | Superseded | Order 20047106 instead |
| 6 | 242-28-198-00 | Ferrari Rubber Seal on Bootlid - 242-28-198-00 | Price on request | Contact us for price and availability |
| 7 | 241-30-210-00 | Ferrari LH Door Lock Catch Plate - 241-30-210-00 | Price on request | Contact us for price and availability |
| 8 | 242-28-326-07 | Ferrari Plate - 242-28-326-07 | Price on request | Contact us for price and availability |
| 9 | 242-28-415-01 | Ferrari LH Clip - 242-28-415-01 | Price on request | Contact us for price and availability |
| 10 | 242-28-400-01 | Ferrari Bonnet Pull Lever - 242-28-400-01 | Price on request | Contact us for price and availability |
| 10 | 242-28-400-11 | Ferrari Bonnet Pull Lever - 242-28-400-11 | Price on request | Contact us for price and availability |
| 11 | 242-28-412-00 | Ferrari Rubber Gasket - 242-28-412-00 | Price on request | Contact us for price and availability |
| 12 | 239-28-416-02 | Ferrari Knob - 239-28-416-02 | Price on request | Contact us for price and availability |
| 13 | 241-28-428-07 | Ferrari RH Bracket - 241-28-428-07 | Price on request | Contact us for price and availability |
| 14 | 241-28-429-07 | Ferrari LH Bracket - 241-28-429-07 | Price on request | Contact us for price and availability |
| 15 | 239-28-500-01 | Ferrari Bonnet Catch - 239-28-500-01 | $98.70 | Available, ships in 3-6 days |
| 16 | 241-28-538-04 | Ferrari Hood Initial Opening Spring - 241-28-538-04 | Price on request | Contact us for price and availability |
| 17 | 242-28-550-01 | Ferrari Bonnet Prop - 242-28-550-01 | Price on request | Contact us for price and availability |
| 18 | 241-28-554-00 | Ferrari Bonnet Prop Buffer - 241-28-554-00 | Price on request | Contact us for price and availability |
| 19 | 242-28-606-00 | Ferrari Bonnet Lining 330 GT Mk1 - 242-28-606-00 | Price on request | Contact us for price and availability |
| 19 | 242-28-606-10 | Ferrari Bonnet Lining 330 GT Mk2 - 242-28-606-10 | Price on request | Contact us for price and availability |
| 20 | 242-28-840-08 | Ferrari Front Moulding - 242-28-840-08 | Price on request | Contact us for price and availability |
| 21 | 242-28-842-08 | Ferrari Rear Moulding - 242-28-842-08 | Price on request | Contact us for price and availability |
| 22 | 242-28-586-07 | Ferrari RH Bar - 242-28-586-07 | Price on request | Contact us for price and availability |
| 23 | 242-28-587-07 | Ferrari LH Bar - 242-28-587-07 | Price on request | Contact us for price and availability |
| 24 | 242-28-598-00 | Ferrari Limit Strap - 242-28-598-00 | Price on request | Contact us for price and availability |
| 25 | 242-28-592-07 | Ferrari Bracket - 242-28-592-07 | Price on request | Contact us for price and availability |
| 26 | 242-28-590-07 | Ferrari Bracket - 242-28-590-07 | Price on request | Contact us for price and availability |
| 27 | 242-28-538-02 | Ferrari Rubber - 242-28-538-02 | Price on request | Contact us for price and availability |
| 20047106 | Ferrari Hood/Trunk Bump Stop Rubber - 20047106 | $16.50 | In stock |
