Ferrari 330 GT 2+2 Mk.1 — Boot/Trunk (Edition 2 & 3) (diagram 208A)

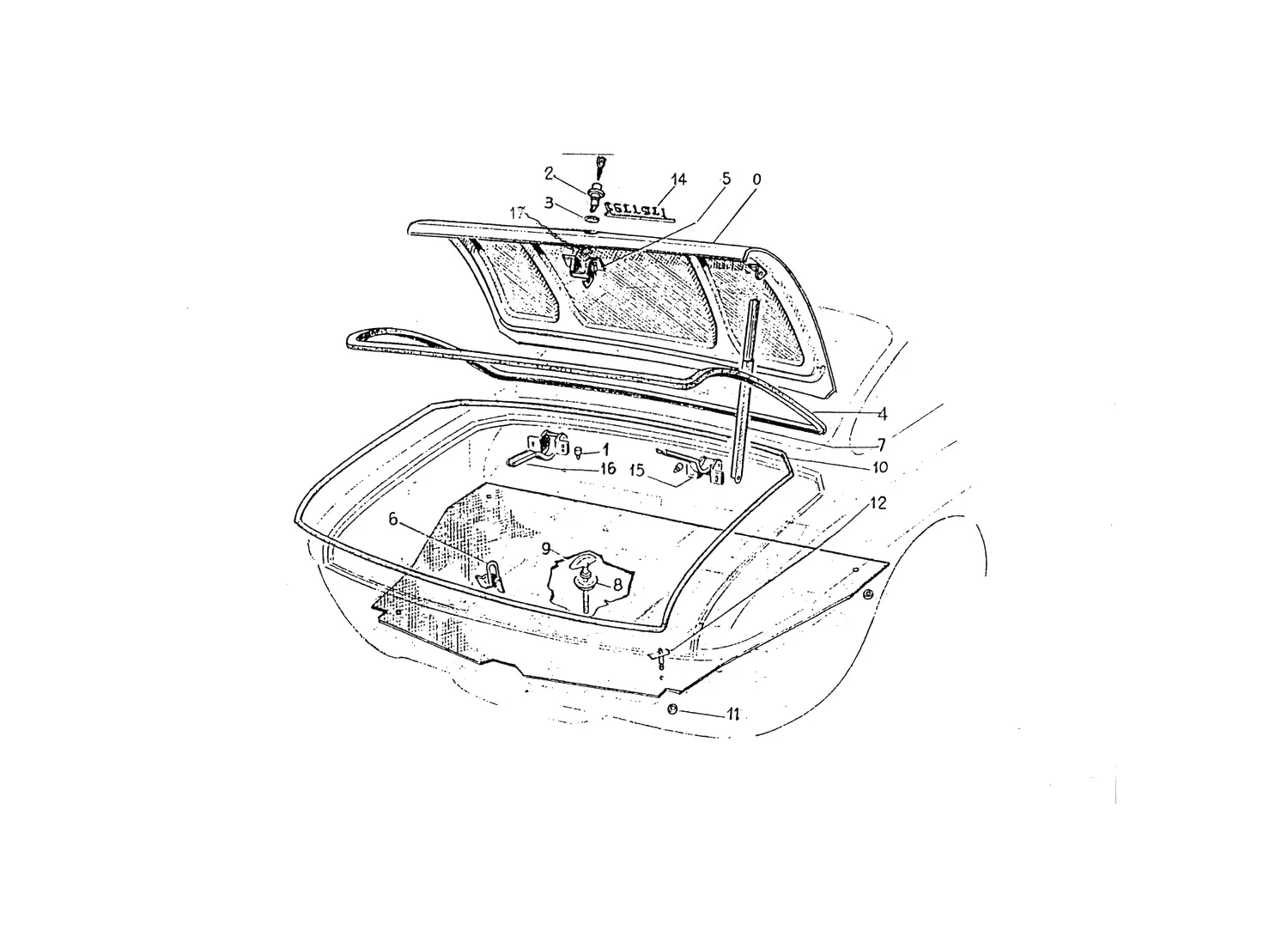

Exploded view of the boot/trunk (edition 2 & 3) on the Ferrari 330 GT 2+2 Mk.1, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 0 | 242-34-004-17 | Ferrari Rear Boot Lid Complete - 242-34-004-17 | Price on request | Contact us to order |
| 1 | 134-20-580-00 | Ferrari Wedge - 134-20-580-00 | Price on request | Contact us for price and availability |
| 2 | 242-34-120-12 | Ferrari Boot Lock - 242-34-120-12 | Price on request | Contact us for price and availability |
| 3 | 242-34-126-00 | Ferrari Under Lock Rubber Seal Set - 242-34-126-00 | Price on request | Contact us for price and availability |
| 4 | 242-28-198-00 | Ferrari Rubber Seal on Bootlid - 242-28-198-00 | Price on request | Contact us for price and availability |
| 5 | 242-34-200-11 | Ferrari Catch - 242-34-200-11 | Price on request | Contact us for price and availability |
| 6 | 242-34-216-01 | Ferrari Boot Catch 330 GT Mk1+2 - 242-34-216-01 | $20.02 | Special order, ships in 7-14 days |
| 7 | 242-34-450-01 | Ferrari Boot Stay - 242-34-450-01 | $500.42 | Available, ships in 3-6 days |
| 8 | 239-34-484-08 | Ferrari Spacer - 239-34-484-08 | Price on request | Contact us for price and availability |
| 9 | 242-34-486-08 | Ferrari Spare Wheel Holding Bolt - 242-34-486-08 | Price on request | Contact us for price and availability |
| 10 | 242-34-510-00 | Ferrari Boot Rubber - 242-34-510-00 | $223.81 | Available, ships in 3-6 days |
| 10 | MC3477/3 | Ferrari H Sect Boot Rubber (4Mtr Length) - MC3477/3 | Price on request | Special order, ships in 7-14 days |
| 11 | 239-34-624-00 | Ferrari Wedge - 239-34-624-00 | Price on request | Contact us for price and availability |
| 12 | 242-34-630-17 | Ferrari Boot Floor - 242-34-630-17 | Price on request | Contact us for price and availability |
| 14 | 2393487202 | Ferrari Rear Script Motif Emblem - 2393487202 | $152.90 | In stock |
| 14 | 63482200/D | Ferrari Motif "Ferrari" - 63482200/D | Price on request | Special order, ships in 7-14 days |
| 15 | 242-34-070-01 | Ferrari RH Boot Hinge 330 GT Mk1+2 - 242-34-070-01 | $121.41 | Available, ships in 3-6 days |
| 16 | 242-34-071-01 | Ferrari LH Boot Hinge 330 GT Mk1+2 - 242-34-071-01 | $115.60 | Available, ships in 3-6 days |
