Ferrari 330 GT 2+2 Mk.1 — Windscreen (diagram 213)

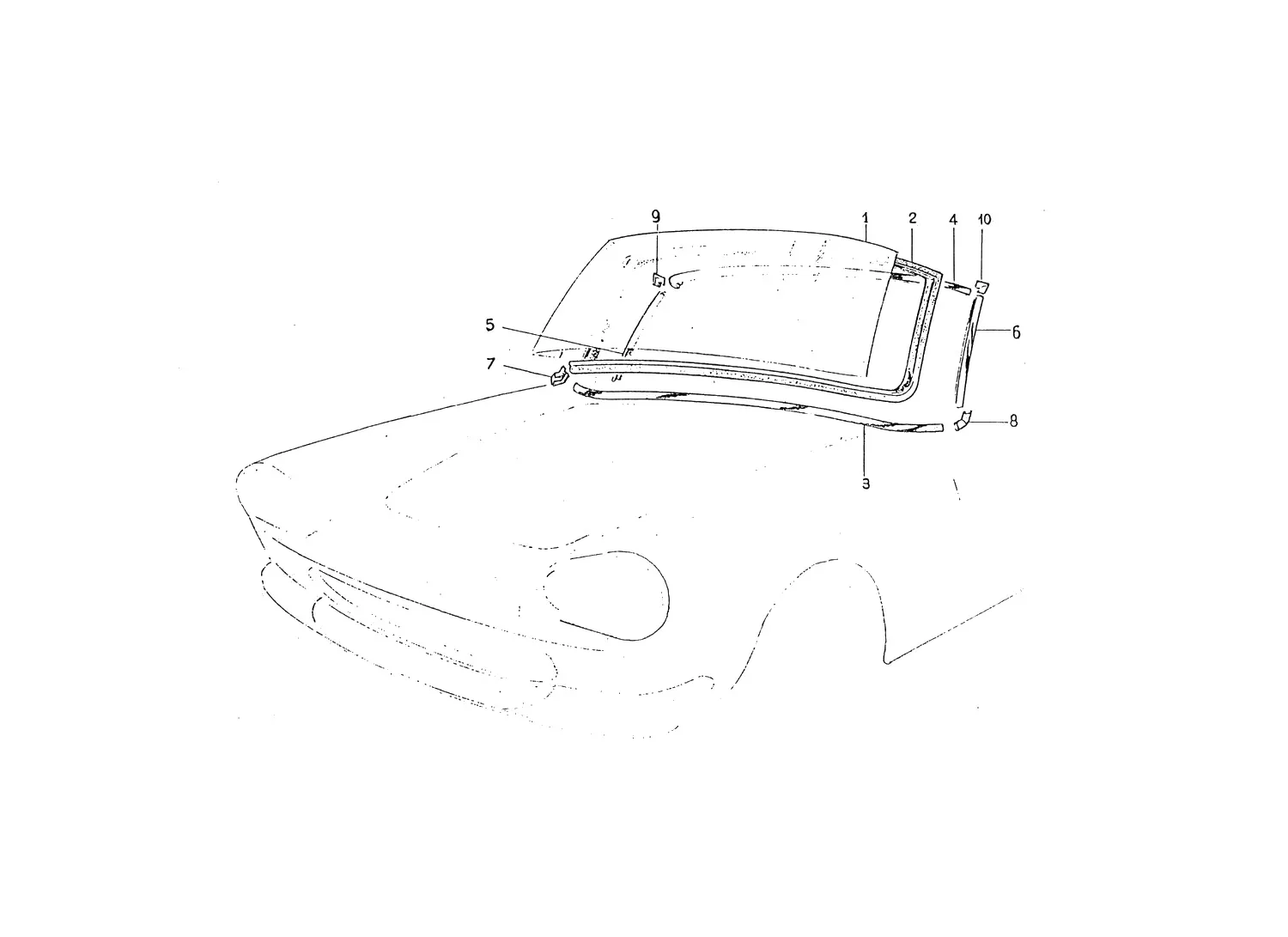

Exploded view of the windscreen on the Ferrari 330 GT 2+2 Mk.1, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 242-40-004-00 | Ferrari Front Windscreen 330 GT Mk1+2 - 242-40-004-00 | $3,242.19 | Contact us to order |
| 1 | 242-40-006-00 | Ferrari Front Windscreen 330 GT Mk1+2 - 242-40-006-00 | Price on request | Contact us to order |
| 2 | 242-40-020-00 | Ferrari Front Windscreen Rubber 330 GT Mk1+2 - 242-40-020-00 | $1,281.69 | Available, ships in 3-6 days |
| 3 | 242-40-060-08 | Ferrari Lower Moulding - 242-40-060-08 | Price on request | Contact us for price and availability |
| 4 | 242-40-080-08 | Ferrari Upper Moulding - 242-40-080-08 | Price on request | Contact us for price and availability |
| 5 | 242-40-100-08 | Ferrari RH Front Screen Moulding - 242-40-100-08 | $44.39 | Available, ships in 3-6 days |
| 6 | 242-40-101-08 | Ferrari LH Front Screen Moulding - 242-40-101-08 | Price on request | Contact us for price and availability |
| 7 | 242-40-062-08 | Ferrari RH Lower Corner Clip - 242-40-062-08 | Price on request | Contact us for price and availability |
| 8 | 242-40-063-08 | Ferrari LH Lower Corner Clip - 242-40-063-08 | Price on request | Contact us for price and availability |
| 9 | 691-40-082-08 | Ferrari RH Upper Corner Clip - 691-40-082-08 | Price on request | Contact us for price and availability |
| 10 | 691-40-083-08 | Ferrari LH Upper Corner Clip - 691-40-083-08 | Price on request | Contact us for price and availability |
