Ferrari 330 GT 2+2 Mk.1 — Rear Screen (diagram 214)

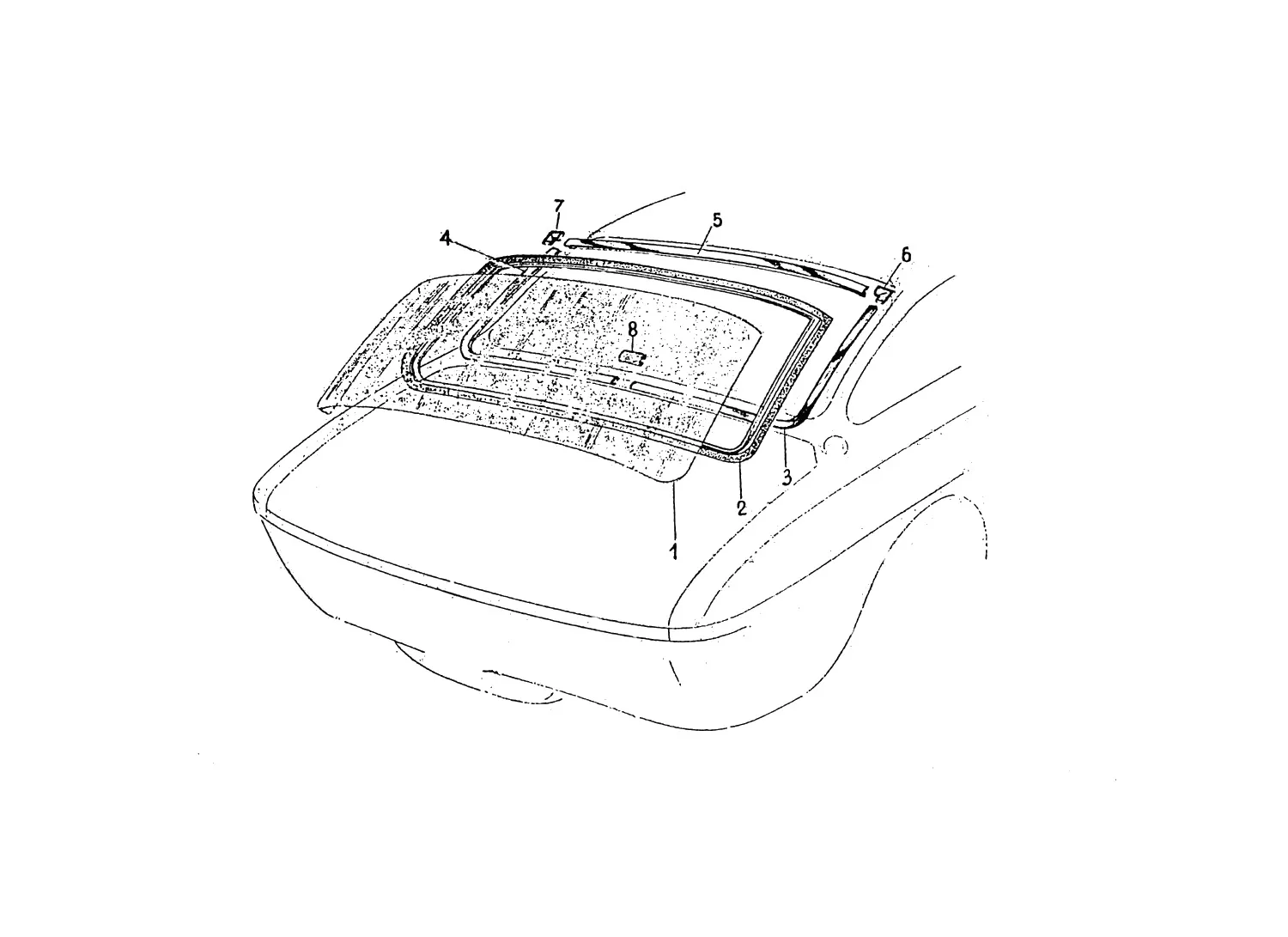

Exploded view of the rear screen on the Ferrari 330 GT 2+2 Mk.1, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 242-40-504-00 | Ferrari Rear Screen 330 GT Mk1 - 242-40-504-00 | Price on request | Contact us to order |
| 1 | 242-40-504-10 | Ferrari Heated Rear Screen 330 GT Mk2 - 242-40-504-10 | Price on request | Contact us to order |
| 2 | 242-40-520-00 | Ferrari Rear Screen Rubber - 242-40-520-00 | $1,200.30 | Available, ships in 3-6 days |
| 3 | 242-40-560-08 | Ferrari RH Moulding - 242-40-560-08 | $129.14 | Special order, ships in 7-14 days |
| 4 | 242-40-561-08 | Ferrari LH Moulding - 242-40-561-08 | $75.95 | Special order, ships in 7-14 days |
| 5 | 242-40-580-08 | Ferrari Upper Moulding - 242-40-580-08 | Price on request | Contact us for price and availability |
| 6 | 691-40-582-08 | Ferrari RH Upper Moulding - 691-40-582-08 | Price on request | Contact us for price and availability |
| 7 | 691-40-583-08 | Ferrari LH Upper Moulding - 691-40-583-08 | Price on request | Contact us for price and availability |
| 8 | 691-40-564-08 | Ferrari Lower Centre Moulding - 691-40-564-08 | Price on request | Contact us for price and availability |
