Ferrari 330 GT 2+2 Mk.1 — Rear Qtr Light Windows (diagram 214A)

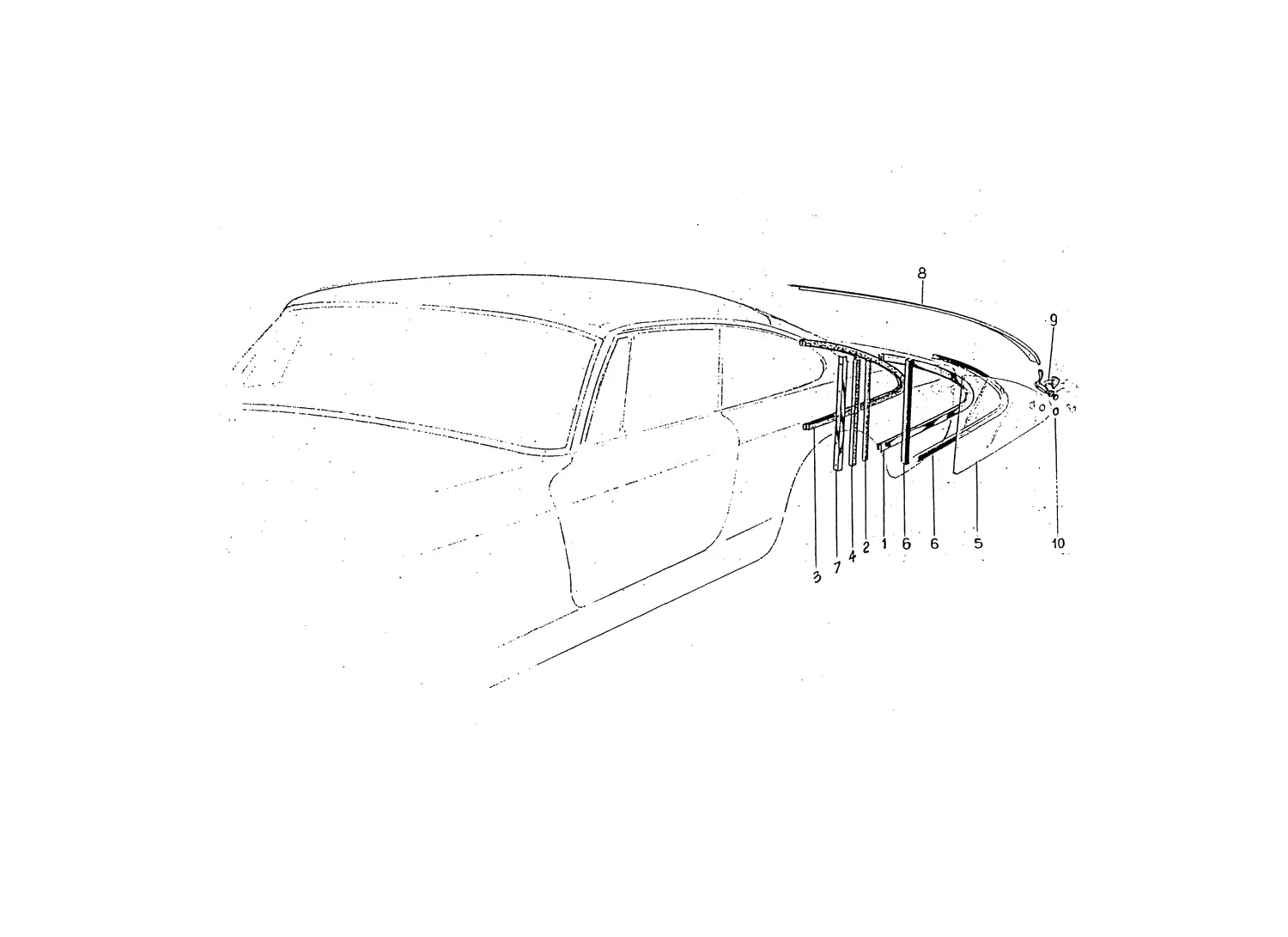

Exploded view of the rear qtr light windows on the Ferrari 330 GT 2+2 Mk.1, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 242-42-334-08 | Ferrari RH Rear Side Window Moulding - 242-42-334-08 | Price on request | Contact us for price and availability |
| 1 | 242-42-335-08 | Ferrari LH Rear Side Window Moulding - 242-42-335-08 | Price on request | Contact us for price and availability |
| 2 | 242-42-352-08 | Ferrari RH Vertical Seal - 242-42-352-08 | Price on request | Contact us for price and availability |
| 2 | 242-42-353-08 | Ferrari LH Vertical Seal - 242-42-353-08 | Price on request | Contact us for price and availability |
| 3 | 242-42-374-00 | Ferrari RH Rear Qtr Light Rubber 330 GT - 242-42-374-00 | $160.50 | Available, ships in 3-6 days |
| 3 | 242-42-375-00 | Ferrari LH Rear Qtr Light Rubber 330 GT - 242-42-375-00 | $160.50 | Available, ships in 3-6 days |
| 3 | 242-42-374-00/K | Ferrari RH + LH Rear Qtr Light Rubber 330 GT - 242-42-374-00/K | Price on request | Special order, ships in 7-14 days |
| 4 | 242-42-400-00 | Ferrari RH Moulding - 242-42-400-00 | Price on request | Contact us for price and availability |
| 4 | 242-42-401-00 | Ferrari LH Moulding - 242-42-401-00 | Price on request | Contact us for price and availability |
| 5 | 242-42-528-00 | Ferrari Rear Qtr Light 330 GT - 242-42-528-00 | $237.20 | Available, ships in 3-6 days |
| 6 | 242-42-532-00 | Ferrari U Sect Rubber Profile Between Frame And Glass - 242-42-532-00 | Price on request | Contact us for price and availability |
| 7 | 242-42-600-08 | Ferrari RH External Centre MouldingH - 242-42-600-08 | Price on request | Contact us for price and availability |
| 7 | 242-42-601-08 | Ferrari LH External Centre Moulding - 242-42-601-08 | Price on request | Contact us for price and availability |
| 8 | 242-42-620-08 | Ferrari RH Upper Moulding - 242-42-620-08 | Price on request | Contact us for price and availability |
| 8 | 242-42-621-08 | Ferrari LH Upper Moulding - 242-42-621-08 | Price on request | Contact us for price and availability |
| 9 | 242-42-762-02 | Ferrari Window Catch - 242-42-762-02 | $91.50 | Available, ships in 3-6 days |
| 10 | 241-42-782-00 | Ferrari Washer - 241-42-782-00 | Price on request | Contact us for price and availability |
