Ferrari 330 GT 2+2 Mk.1 — Interior Insulation Felt (Edition 1) (diagram 217)

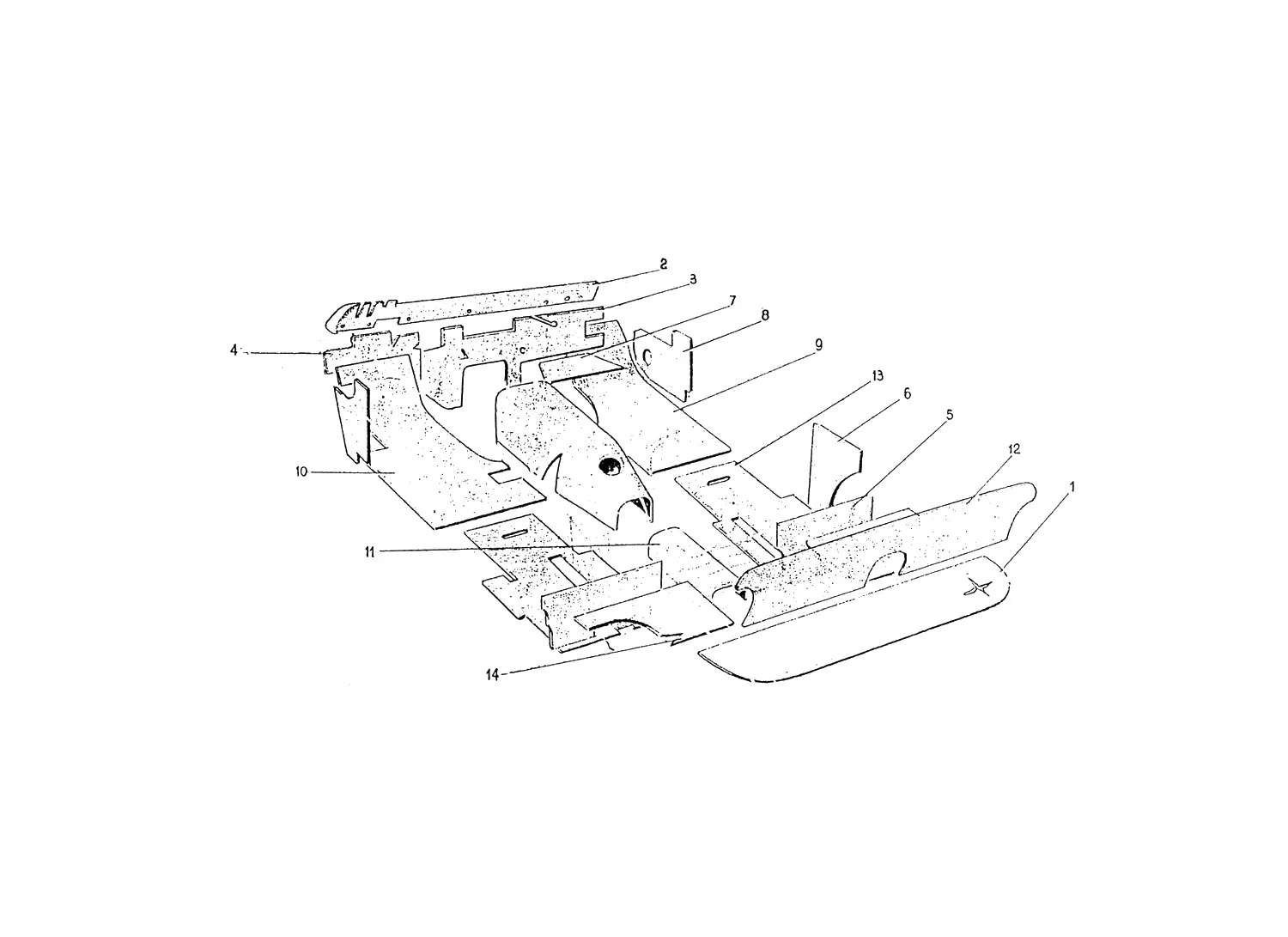

Exploded view of the interior insulation felt (edition 1) on the Ferrari 330 GT 2+2 Mk.1, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 242-22-250-10 | Ferrari Insulation - 242-22-250-10 | Price on request | Contact us for price and availability |
| 2 | 242-62-130-00 | Ferrari Insulation LHD - 242-62-130-00 | Price on request | Contact us for price and availability |
| 2 | 244-62-130-00 | Ferrari Insulation RHD - 244-62-130-00 | Price on request | Contact us for price and availability |
| 2 | 242-62-130-10 | Ferrari Insulation LHD - 242-62-130-10 | Price on request | Contact us for price and availability |
| 2 | 244-62-130-10 | Ferrari Insulation RHD - 244-62-130-10 | Price on request | Contact us for price and availability |
| 3 | 241-62-302-00 | Ferrari Central Insulation - 241-62-302-00 | Price on request | Contact us for price and availability |
| 3 | 242-62-304-00 | Ferrari Central Insulation LHD - 242-62-304-00 | Price on request | Contact us for price and availability |
| 3 | 244-62-304-00 | Ferrari Central Insulation RHD - 244-62-304-00 | Price on request | Contact us for price and availability |
| 4 | 242-62-308-00 | Ferrari RH Insulation - 242-62-308-00 | Price on request | Contact us for price and availability |
| 4 | 242-62-309-00 | Ferrari LH Insulation LHD - 242-62-309-00 | Price on request | Contact us for price and availability |
| 5 | 242-62-314-00 | Ferrari RH Insulation LHD - 242-62-314-00 | Price on request | Contact us for price and availability |
| 5 | 242-62-315-00 | Ferrari LH Insulation - 242-62-315-00 | Price on request | Contact us for price and availability |
| 6 | 242-62-318-00 | Ferrari RH Insulation - 242-62-318-00 | Price on request | Contact us for price and availability |
| 6 | 242-62-319-00 | Ferrari LH Insulation - 242-62-319-00 | Price on request | Contact us for price and availability |
| 7 | 242-62-330-00 | Ferrari RH Insulation LHD - 242-62-330-00 | Price on request | Contact us for price and availability |
| 7 | 244-62-331-00 | Ferrari LH Insulation RHD - 244-62-331-00 | Price on request | Contact us for price and availability |
| 8 | 242-62-348-00 | Ferrari RH Insulation - 242-62-348-00 | Price on request | Contact us for price and availability |
| 8 | 242-62-349-00 | Ferrari LH Insulation - 242-62-349-00 | Price on request | Contact us for price and availability |
| 9 | 242-62-460-00 | Ferrari RH Insulation LHD - 242-62-460-00 | Price on request | Contact us for price and availability |
| 9 | 244-62-460-00 | Ferrari RH Insulation RHD - 244-62-460-00 | Price on request | Contact us for price and availability |
| 9 | 242-62-460-10 | Ferrari RH Insulation LHD - 242-62-460-10 | Price on request | Contact us for price and availability |
| 9 | 244-62-460-10 | Ferrari RH Insulation RHD - 244-62-460-10 | Price on request | Contact us for price and availability |
| 10 | 242-62-461-00 | Ferrari LH Insulation LHD - 242-62-461-00 | Price on request | Contact us for price and availability |
| 10 | 244-62-461-10 | Ferrari LH Insulation RHD - 244-62-461-10 | Price on request | Contact us for price and availability |
| 10 | 242-62-461-10 | Ferrari LH Insulation LHD - 242-62-461-10 | Price on request | Contact us for price and availability |
| 10 | 244-62-461-00 | Ferrari LH Insulation RHD - 244-62-461-00 | Price on request | Contact us for price and availability |
| 11 | 242-62-566-00 | Ferrari Tunnel Insulation - 242-62-566-00 | Price on request | Contact us for price and availability |
| 12 | 242-62-606-00 | Ferrari Insulation - 242-62-606-00 | Price on request | Contact us for price and availability |
| 13 | 242-62-468-00 | Ferrari RH Insulation - 242-62-468-00 | Price on request | Contact us for price and availability |
| 13 | 242-62-610-00 | Ferrari RH Insulation - 242-62-610-00 | Price on request | Contact us for price and availability |
| 13 | 242-62-611-00 | Ferrari LH Insulation - 242-62-611-00 | Price on request | Contact us for price and availability |
| 14 | 242-62-640-00 | Ferrari RH Insulation - 242-62-640-00 | Price on request | Contact us for price and availability |
| 14 | 242-62-641-00 | Ferrari LH Insulation - 242-62-641-00 | Price on request | Contact us for price and availability |
