Ferrari 330 GT 2+2 Mk.1 — Seats (diagram 219)

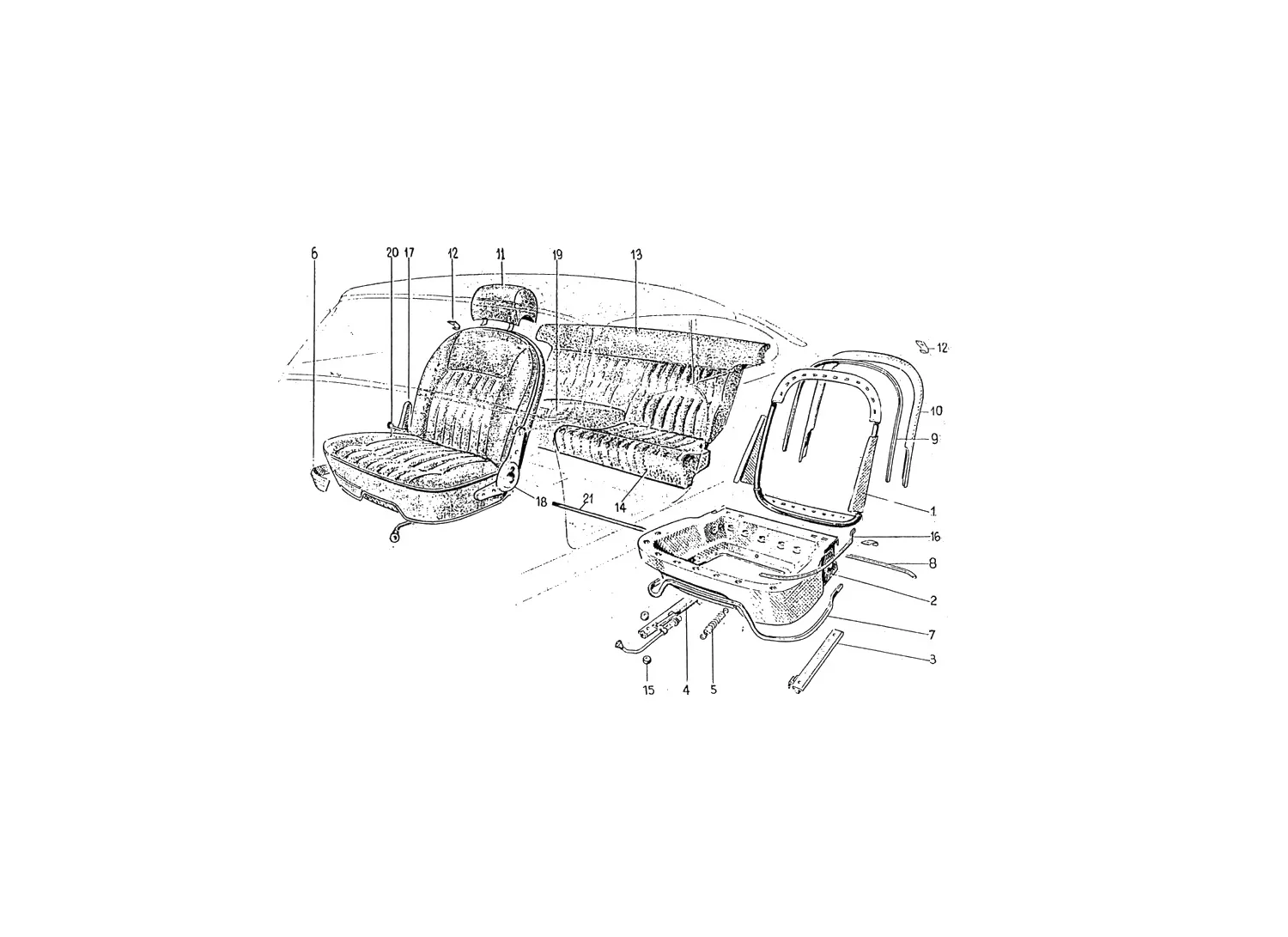

Exploded view of the seats on the Ferrari 330 GT 2+2 Mk.1, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 241-66-006-17 | Ferrari Seat Frame - 241-66-006-17 | Price on request | Contact us to order |
| 2 | 242-66-168-07 | Ferrari RH Base Of Seat Frame - 242-66-168-07 | Price on request | Contact us for price and availability |
| 2 | 242-66-169-07 | Ferrari LH Base Of Seat Frame - 242-66-169-07 | Price on request | Contact us for price and availability |
| 3 | 242-66-200-07 | Ferrari RH Outer Seat Guide - 242-66-200-07 | Price on request | Contact us for price and availability |
| 3 | 242-66-201-07 | Ferrari LH Outer Seat Guide - 242-66-201-07 | Price on request | Contact us for price and availability |
| 4 | 242-66-210-07 | Ferrari RH Inner Seat Guide - 242-66-210-07 | Price on request | Contact us for price and availability |
| 4 | 242-66-211-07 | Ferrari LH Inner Seat Guide - 242-66-211-07 | Price on request | Contact us for price and availability |
| 4 | 242-66-210-17 | Ferrari RH Inner Seat Guide - 242-66-210-17 | Price on request | Contact us for price and availability |
| 4 | 242-66-211-17 | Ferrari LH Inner Seat Guide - 242-66-211-17 | Price on request | Contact us for price and availability |
| 5 | 242-66-254-01 | Ferrari Spring - 242-66-254-01 | Price on request | Contact us for price and availability |
| 6 | 241-66-364-00 | Ferrari RH Outer Seat Trim - 241-66-364-00 | Price on request | Contact us for price and availability |
| 6 | 241-66-365-00 | Ferrari LH Outer Seat Trim - 241-66-365-00 | Price on request | Contact us for price and availability |
| 7 | 242-66-410-08 | Ferrari RH Inner Seat Trim - 242-66-410-08 | Price on request | Contact us for price and availability |
| 7 | 690-66-411-08 | Ferrari LH Inner Seat Trim - 690-66-411-08 | Price on request | Contact us for price and availability |
| 8 | 690-66-412-08 | Ferrari Gasket - 690-66-412-08 | Price on request | Contact us for price and availability |
| 9 | 242-66-424-08 | Ferrari Moulding - 242-66-424-08 | Price on request | Contact us for price and availability |
| 10 | 242-66-440-00 | Ferrari Moulding - 242-66-440-00 | Price on request | Contact us for price and availability |
| 11 | 241-66-484-00 | Ferrari Headrest Complete - 241-66-484-00 | Price on request | Contact us for price and availability |
| 12 | 241-66-490-18 | Ferrari Clip - 241-66-490-18 | Price on request | Contact us for price and availability |
| 13 | 242-66-510-00 | Ferrari Rear Seat Back - 242-66-510-00 | Price on request | Contact us to order |
| 14 | 242-66-650-00 | Ferrari RH Rear Sear Cushion - 242-66-650-00 | Price on request | Contact us for price and availability |
| 14 | 242-66-651-00 | Ferrari LH Rear Seat Cushion - 242-66-651-00 | Price on request | Contact us for price and availability |
| 15 | 241-66-250-01 | Ferrari Nut - 241-66-250-01 | Price on request | Contact us for price and availability |
| 16 | 241-66-368-08 | Ferrari RH Seat Moulding - 241-66-368-08 | Price on request | Contact us for price and availability |
| 16 | 241-66-369-08 | Ferrari LH Seat Moulding - 241-66-369-08 | Price on request | Contact us for price and availability |
| 17 | 241-66-090-02 | Ferrari LH Hinge - 241-66-090-02 | $566.58 | Available, ships in 3-6 days |
| 17 | 241-66-091-02 | Ferrari RH Hinge - 241-66-091-02 | Price on request | Contact us for price and availability |
| 17 | 242-66-090-02 | Ferrari RH Hinge - 242-66-090-02 | Price on request | Contact us for price and availability |
| 17 | 242-66-091-02 | Ferrari LH Hinge - 242-66-091-02 | Price on request | Contact us for price and availability |
| 18 | 241-66-092-02 | Ferrari RH Hinge - 241-66-092-02 | $547.94 | Available, ships in 3-6 days |
| 18 | 241-66-093-02 | Ferrari LH Hinge - 241-66-093-02 | Price on request | Contact us for price and availability |
| 19 | 242-62-238-00 | Ferrari Centre Rear Armrest - 242-62-238-00 | Price on request | Contact us for price and availability |
| 19 | 242-62-238-10 | Ferrari Centre Rear Armrest - 242-62-238-10 | Price on request | Contact us for price and availability |
| 20 | 242-66-000-00 | Ferrari RH Front Seat Complete - 242-66-000-00 | Price on request | Contact us to order |
| 20 | 242-66-001-00 | Ferrari LH Front Seat Complete - 242-66-001-00 | Price on request | Contact us to order |
| 20 | 242-66-000-10 | Ferrari RH Front Seat Complete - 242-66-000-10 | Price on request | Contact us to order |
| 20 | 242-66-001-10 | Ferrari LH Front Seat Complete - 242-66-001-10 | Price on request | Contact us to order |
| 21 | 241-66-102-01 | Ferrari Rod - 241-66-102-01 | Price on request | Contact us for price and availability |
