Ferrari 330 GT 2+2 Mk.1 — System Electrics (diagram 223)

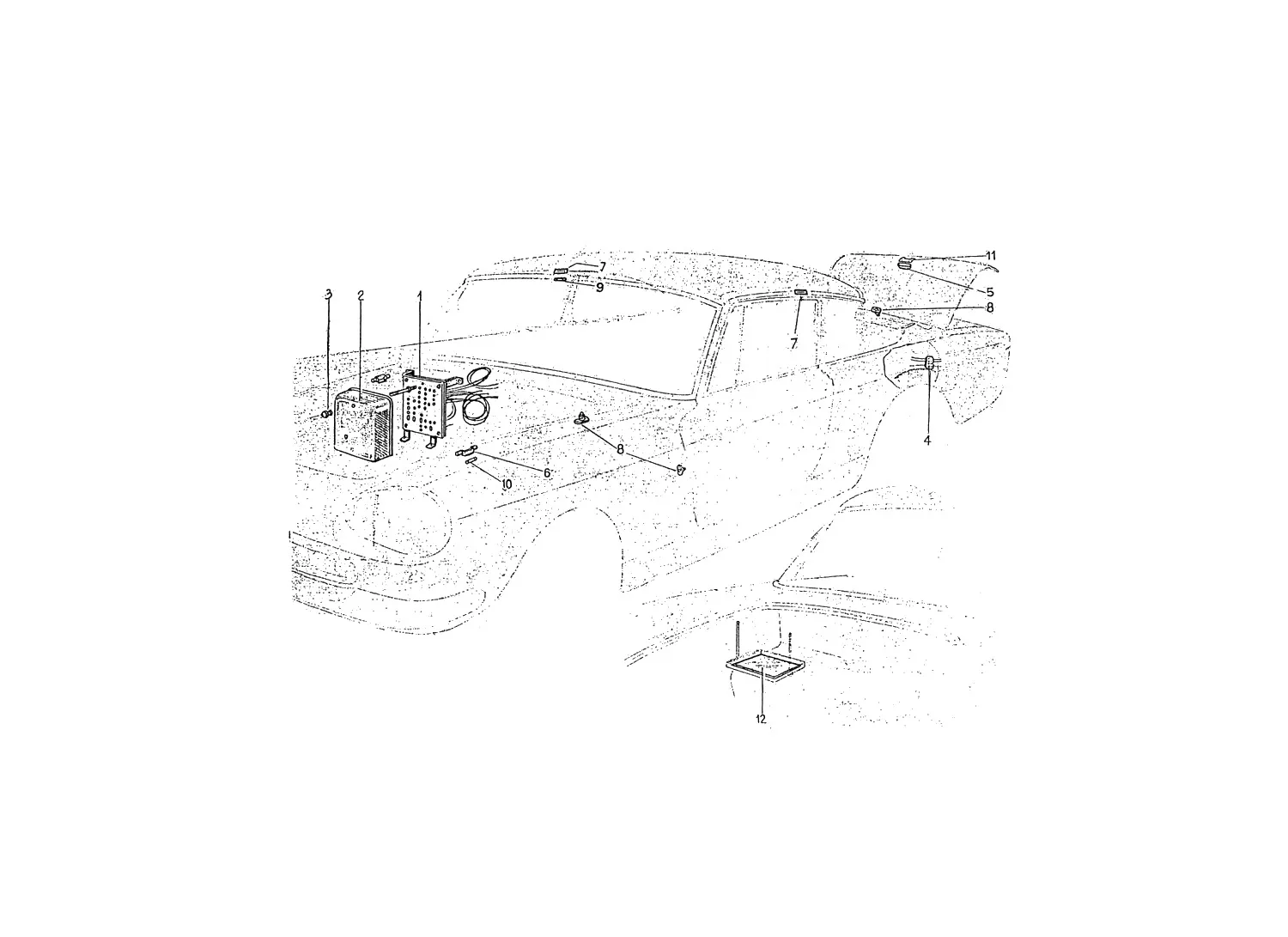

Exploded view of the system electrics on the Ferrari 330 GT 2+2 Mk.1, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 330 GT 2+2 Mk.1 System Electrics exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1242-80-000-09Ferrari Relay Board - 242-80-000-09Price on requestContact us for price and availability
1242-80-000-19Ferrari Relay Board - 242-80-000-19Price on requestContact us for price and availability
2242-80-346-07Ferrari Fuse Board Protection Cover - 242-80-346-07Price on requestContact us for price and availability
2242-80-346-16Ferrari Fuse Board Protection Cover - 242-80-346-16Price on requestContact us for price and availability
3239-80-348-02Ferrari Nut - 239-80-348-02Price on requestContact us for price and availability
4243-80-672-00Ferrari Connection 6-Way - 243-80-672-00Price on requestContact us for price and availability
5242-80-800-08Ferrari Roof/Boot Light - 242-80-800-08$511.98Available, ships in 3-6 days
6242-80-802-02Ferrari Bracket - 242-80-802-02Price on requestContact us for price and availability
7242-80-830-02Ferrari Interior Lamp - 242-80-830-02$392.54Available, ships in 3-6 days
8242-80-832-00Ferrari Door Light Switch - 242-80-832-00$137.30Available, ships in 3-6 days
8242-80-832-01Ferrari Courtesy Light Switch - 242-80-832-01$137.30Available, ships in 3-6 days
9241-80-852-00Ferrari Bulb - 241-80-852-00Price on requestContact us for price and availability
10241-80-854-00Ferrari Bulb - 241-80-854-00Price on requestContact us for price and availability
11242-80-822-01Ferrari Support - 242-80-822-01Price on requestContact us for price and availability
12239-80-960-07Ferrari Battery Tray - 239-80-960-07Price on requestContact us for price and availability
12242-80-960-17Ferrari Battery Tray - 242-80-960-17Price on requestContact us for price and availability

All 330 GT 2+2 Mk.1 diagrams
