Ferrari 330 GTC — Rear Side Window Components (diagram 214)

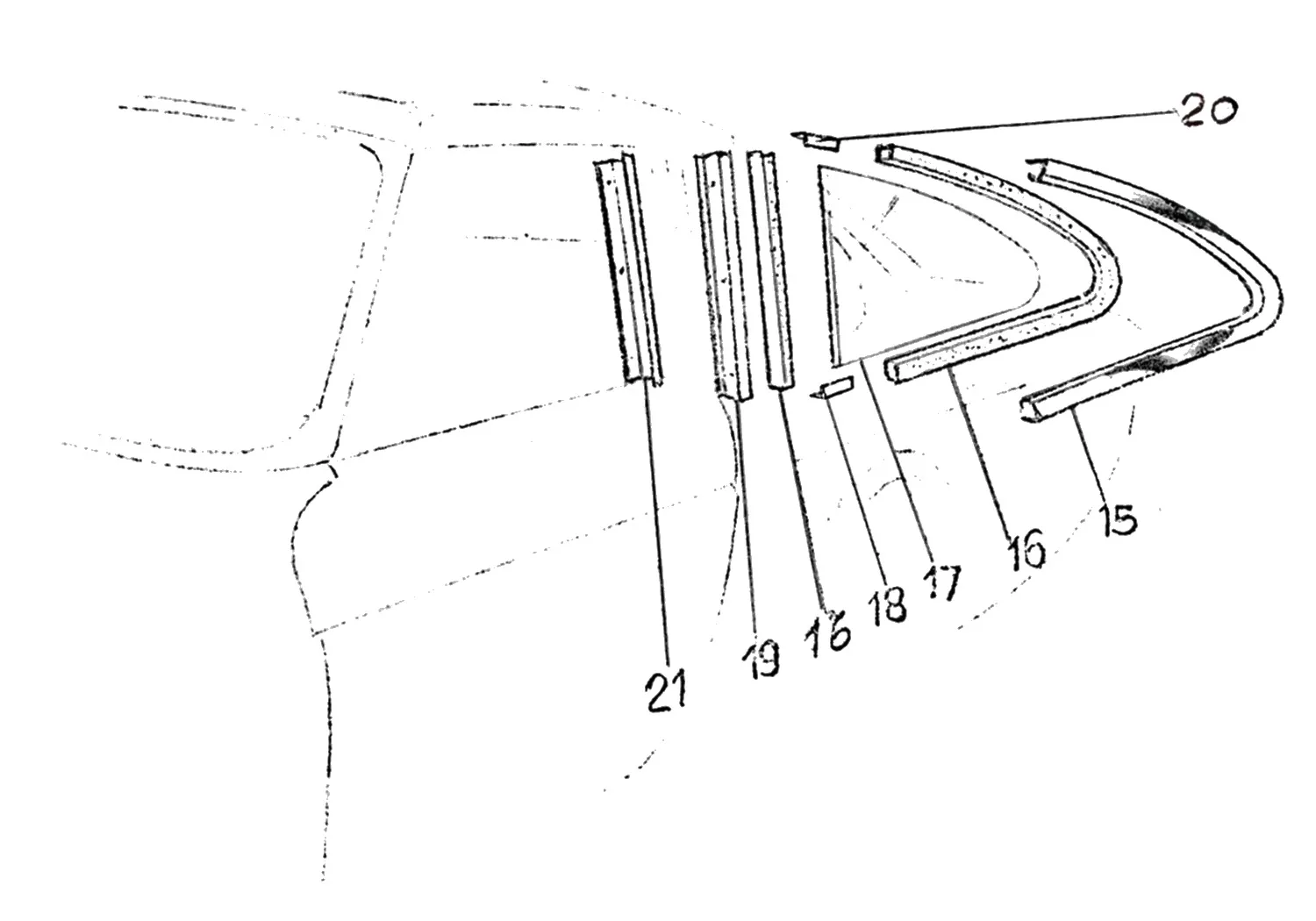

Exploded view of the rear side window components on the Ferrari 330 GTC, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 15 | 246-42-334-02 | Ferrari RH Moulding - 246-42-334-02 | Price on request | Contact us for price and availability |
| 15 | 246-42-335-02 | Ferrari LH Moulding - 246-42-335-02 | Price on request | Contact us for price and availability |
| 16 | 0-900-9-010-0 | Ferrari Tape For Rear Window Surround - 0-900-9-010-0 | Price on request | Contact us for price and availability |
| 17 | 246-42-528-00 | Ferrari Rear Qtr Glass - 246-42-528-00 | $2,146.81 | Contact us to order |
| 17 | 246-42-528-00/U | Ferrari Rear Qtr Glass - 246-42-528-00/U | $2,072.19 | Contact us to order |
| 18 | 246-42-542-01 | Ferrari Bracket - 246-42-542-01 | Price on request | Contact us for price and availability |
| 19 | 246-42-600-02 | Ferrari RH External Pillar Moulding - 246-42-600-02 | Price on request | Contact us for price and availability |
| 19 | 246-42-601-02 | Ferrari LH External Pillar Moulding - 246-42-601-02 | Price on request | Contact us for price and availability |
| 20 | 246-42-510-01 | Ferrari Bracket - 246-42-510-01 | Price on request | Contact us for price and availability |
| 21 | 246-64-456-00 | Ferrari RH Moulding - 246-64-456-00 | Price on request | Contact us for price and availability |
| 21 | 246-64-457-00 | Ferrari LH Moulding - 246-64-457-00 | Price on request | Contact us for price and availability |
