Ferrari 330 GTC — System Electrics 330GTC (diagram 223)

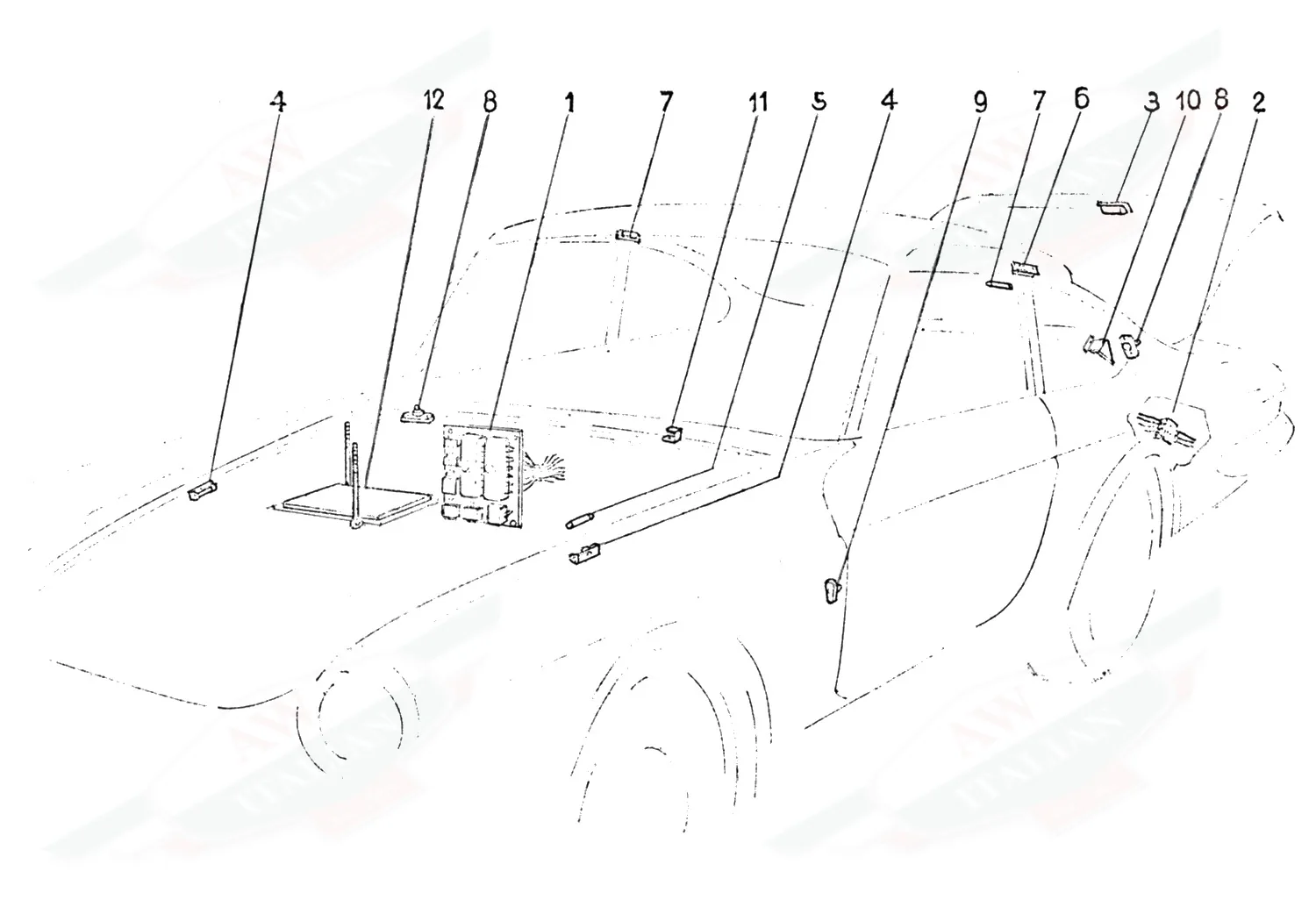

Exploded view of the system electrics 330gtc on the Ferrari 330 GTC, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 246-80-000-00 | Ferrari Relay Board - 246-80-000-00 | $3,827.00 | Available, ships in 3-6 days |
| 1 | 246-80-000-00/A | Ferrari 330GTC Complete Wiring Loom inc Relay Board - 246-80-000-00/A | $3,693.98 | Available, ships in 3-6 days |
| 2 | 243-80-672-00 | Ferrari Connection 6-Way - 243-80-672-00 | Price on request | Contact us for price and availability |
| 3 | 242-80-800-08 | Ferrari Roof/Boot Light - 242-80-800-08 | $511.98 | Available, ships in 3-6 days |
| 4 | 242-80-802-08 | Ferrari Engine Bay Light - 242-80-802-08 | $206.24 | Special order, ships in 7-14 days |
| 5 | 0-980-4-015-0 | Ferrari Bulb - 0-980-4-015-0 | Price on request | Contact us for price and availability |
| 6 | 242-80-830-02 | Ferrari Interior Lamp - 242-80-830-02 | $392.54 | Available, ships in 3-6 days |
| 7 | 242-80-830-00 | Ferrari Switch Knob - 242-80-830-00 | Price on request | Contact us for price and availability |
| 8 | 242-80-832-00 | Ferrari Door Light Switch - 242-80-832-00 | $137.30 | Available, ships in 3-6 days |
| 8 | 242-80-832-01 | Ferrari Courtesy Light Switch - 242-80-832-01 | $137.30 | Available, ships in 3-6 days |
| 10 | 246-80-847-06 | Ferrari Support - 246-80-847-06 | Price on request | Contact us for price and availability |
| 11 | 241-80-820-00 | Ferrari Press Switch - 241-80-820-00 | Price on request | Contact us for price and availability |
| 12 | 242-80-960-10 | Ferrari Battery Tray - 242-80-960-10 | Price on request | Contact us for price and availability |
