Ferrari 348 tb/ts — Blow - By System (diagram 015)

Exploded view of the blow - by system on the Ferrari 348 tb/ts, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

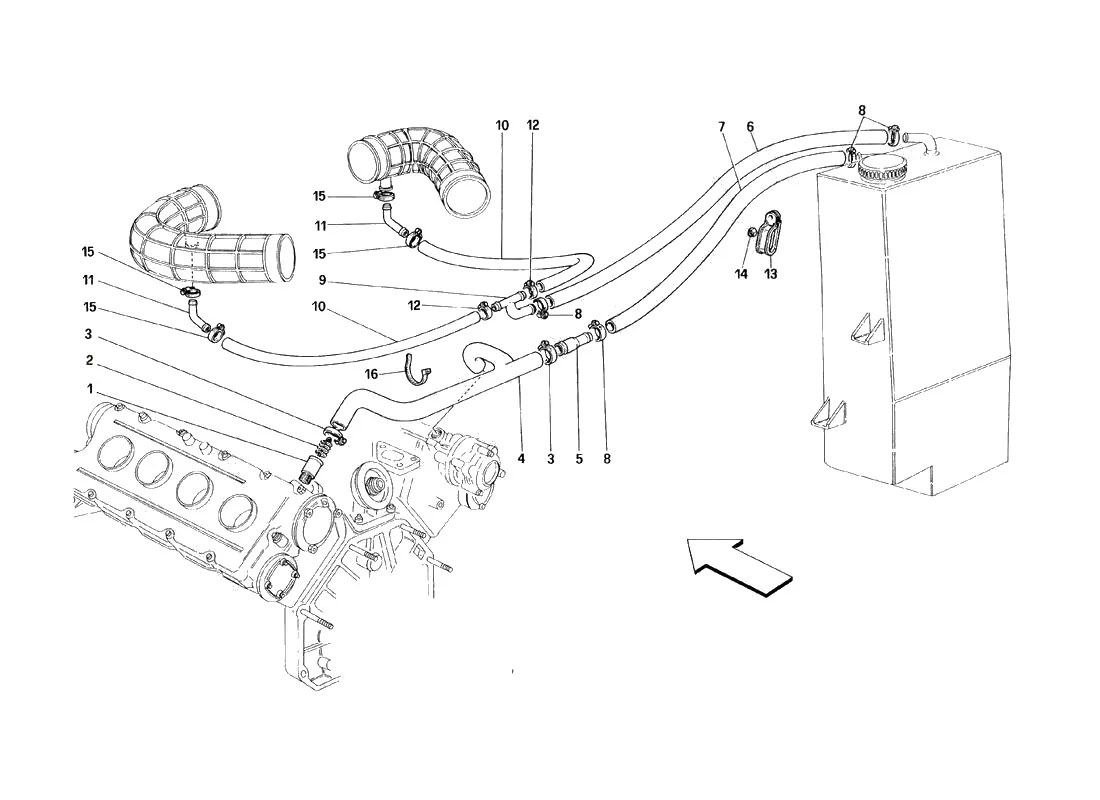

Ferrari 348 tb/ts Blow - By System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1119236Ferrari Oil Breather Union - 119236$19.42Available, ships in 3-6 days
2119237Ferrari Oil Splash Screen - 119237Price on requestContact us for price and availability
313000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
312180290Ferrari Hose Clip 19-29 - 12180290SupersededOrder 13000490 instead
4139525Ferrari Tube - 139525$290.01Available, ships in 3-6 days
5140369Ferrari Union - 140369$76.86Available, ships in 3-6 days
6143051Ferrari Hose - 143051Price on requestContact us for price and availability
7139342Ferrari Hose Oil Breather 550mm - 139342Price on requestContact us for price and availability
813000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
9140096Ferrari Union - 140096Price on requestContact us for price and availability
10140360Ferrari Hose - 140360$20.78Available, ships in 3-6 days
11140338Ferrari Union - 140338$13.68Available, ships in 3-6 days
1213000190Ferrari Hose Clip 10-16mm - 13000190$1.09Available, ships in 3-6 days
1361712600Ferrari P Clip Bracket With Sheath D28 - 61712600$3.26Available, ships in 3-6 days
14102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
1412575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
1512179490Ferrari Hose Clip - 12179490SupersededOrder 13000190 instead
16145855Ferrari Clamp 208mm - 145855$0.98Special order, ships in 7-14 days
10168590Ferrari Clip - 10168590SupersededOrder 13000190 instead
104879Ferrari Clip - 104879SupersededOrder 13000190 instead
178052Ferrari Clip - 178052$3.26Available, ships in 3-6 days
12179690Ferrari Hose Clip - 12179690SupersededOrder 13000190 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
10169290Ferrari Hose Clip 26-30 - 10169290SupersededOrder 13000490 instead
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
104022Ferrari Jubilee Clip - 104022SupersededOrder 13000390 instead
12179990Ferrari Jubilee Clip 20-32mm - 12179990SupersededOrder 13000390 instead
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
