Ferrari 348 tb/ts — Rear Suspension - Wishbones (diagram 040)

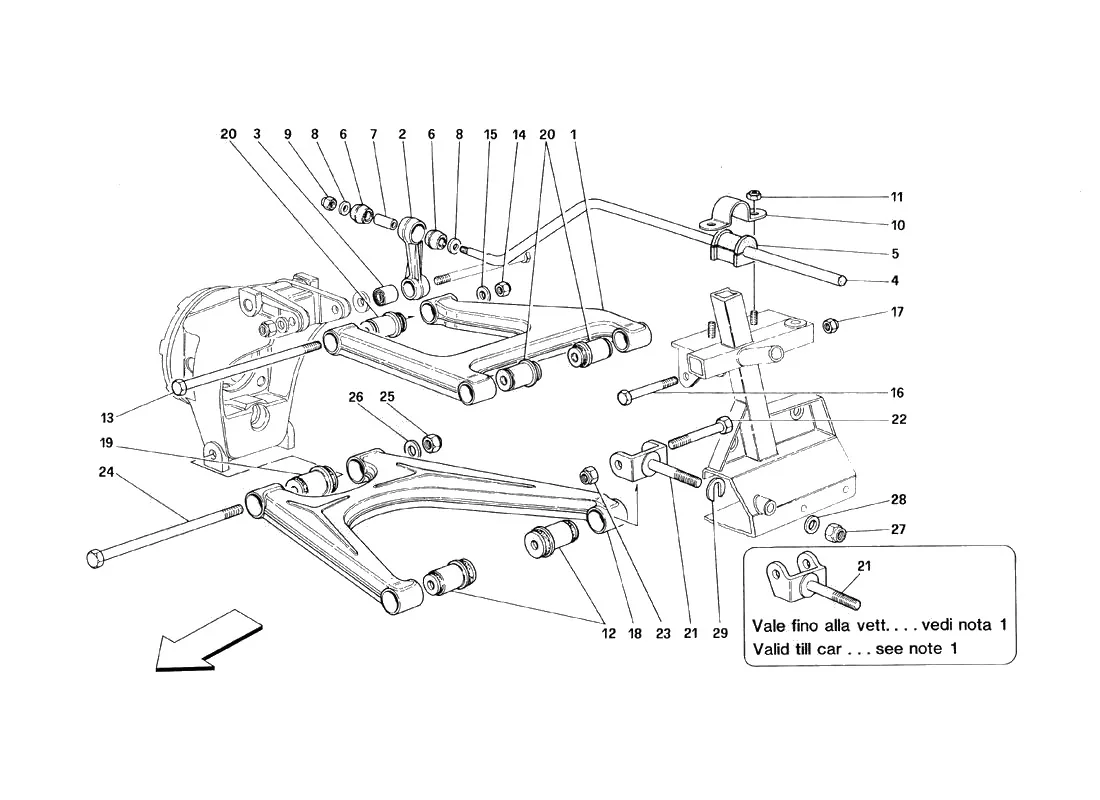

Exploded view of the rear suspension - wishbones on the Ferrari 348 tb/ts, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 131923 | Ferrari RH/LH Rear Upper Suspension Lever - 131923 | $2,236.15 | Available, ships in 3-6 days |
| 2 | 134564 | Ferrari Anti Roll Bar Link - 134564 | $106.01 | Available, ships in 3-6 days |
| 3 | 100773R | Ferrari Sway Bar Link Silent Block Bushing - 100773 | $38.50 | In stock |
| 3 | 100773 | Ferrari Bonded Silent Bloc Bush - 100773 | $38.50 | Available, ships in 3-6 days |
| 4 | 141212 | Ferrari Rear Anti Roll Bar - 141212 | $268.12 | Available, ships in 3-6 days |
| 5 | 110874 | Ferrari Rear Sway Bar Bushing - 110874 | $27.34 | In stock |
| 6 | 107335 | Ferrari Rear Sway Bar Link Bushing - 107335 | $13.20 | In stock |
| 7 | 108294 | Ferrari Spacer - 108294 | $65.89 | In stock |
| 7 | 108294/A | Ferrari Spacer - 108294/A | $111.32 | Available, ships in 3-6 days |
| 8 | 117285 | Ferrari Washer - 117285 | $2.17 | Available, ships in 3-6 days |
| 9 | 16104425 | Ferrari Nyloc Nut - 16104425 | Superseded | Order 101139 instead |
| 9 | 101139 | Ferrari Nyloc Nut 8x1.25mm - 101139 | $0.60 | Available, ships in 3-6 days |
| 10 | 133802 | Ferrari Roll Bar Bracket - 133802 | $46.41 | Available, ships in 3-6 days |
| 11 | 104030 | Ferrari/Maserati Nut - 104030 | $0.88 | In stock |
| 11 | 16104411 | Ferrari Nyloc Nut M8 x 8.5 - 16104411 | $0.46 | Available, ships in 3-6 days |
| 12 | 154539RUI | Ferrari Control Arm Bushing-154539RUI | $85.80 | In stock |
| 12 | 154539 | Ferrari Control Arm Bushing -154539 | $85.80 | In stock |
| 13 | 128904 | Ferrari Rear Upper Control Arm Bolt - 128904 | $37.98 | In stock |
| 14 | 102825 | Ferrari Locking Suspension Nut - 102825 | $1.10 | In stock |
| 15 | 106616 | Ferrari Washer - 106616 | Superseded | Order 12601574 instead |
| 15 | 12601574 | Ferrari Wavy Washer 13mm - 12601574 | $0.13 | Available, ships in 3-6 days |
| 16 | 106419 | Ferrari Suspension Bolt - 106419 | $31.35 | In stock |
| 18 | 136185 | Ferrari Lower Rear Suspension Lever Rh/LH - 136185 | $1,483.08 | Available, ships in 3-6 days |
| 19 | 154538 | Ferrari Control Arm Bushing - 154538 | $75.90 | In stock |
| 20 | 154537 | Ferrari Front Control Arm Bushing - 154537 | $57.20 | In stock |
| 20 | 154537KIT | Ferrari Control Arm Bushing Kit Front - 154537KIT | $379.50 | In stock |
| 21 | 116690 | Ferrari Suspension Fork - 116690 | Superseded | Order 177707 instead |
| 21 | 177707 | Ferrari Rear Lower Susp Fork - 177707 | $1,378.85 | Available, ships in 3-6 days |
| 21 | 100784 | Ferrari Lower Fork L80mm - 100784 | Superseded | Order 159399 instead |
| 22 | 106422 | Ferrari Bolt M14 x 1.5 x 84 - 106422 | $54.06 | Available, ships in 3-6 days |
| 23 | 150238 | Ferrari Nyloc Nut - 150238 | $1.05 | In stock |
| 24 | 136218 | Ferrari Screw - 136218 | $54.73 | Available, ships in 3-6 days |
| 26 | 105434 | Ferrari Spacer 0.5mm - 105434 | $50.96 | Available, ships in 3-6 days |
| 28 | 148423 | Ferrari Washer - 148423 | $1.65 | Available, ships in 3-6 days |
| 29 | 101039 | Ferrari Suspension Shim - 101039 | $3.25 | In stock |
| 29 | 107338 | Ferrari Shim Washer 1.50mm - 107338 | $3.14 | Available, ships in 3-6 days |
| 29 | 107339 | Ferrari Shim Washer 2.00mm - 107339 | $3.91 | Available, ships in 3-6 days |
| 29 | 107340 | Ferrari Shim Washer 2.50mm - 107340 | $4.14 | Available, ships in 3-6 days |
| 29 | 107341 | Ferrari Shim Washer 3.00mm - 107341 | $3.14 | Available, ships in 3-6 days |
| 29 | 107342 | Ferrari Shim Washer 3.25mm - 107342 | $1.80 | Available, ships in 3-6 days |
| 100808 | Ferrari Bolt - 100808 | Superseded | Order 106419 instead | |
| 601475 | Ferrari Bolt - 601475 | Superseded | Order 106419 instead | |
| 136189 | Ferrari Lower Fork L38mm - 136189 | Superseded | Order 159399 instead | |
| 16104421 | Ferrari Nut GTB - 16104421 | Superseded | Order 101139 instead | |
| 104398 | Ferrari Silent Bloc - 104398 | Superseded | Order 154537 instead | |
| 601134 | Ferrari Silent Bloc - 601134 | Superseded | Order 154537 instead | |
| 107336 | Ferrari Spacer - 107336 | Superseded | Order 108294 instead | |
| 154085 | Ferrari Spacer - 154085 | Superseded | Order 108294 instead | |
| 159399 | Ferrari Suspension Fork - 159399 | $208.93 | Available, ships in 3-6 days | |
| 12601579 | Ferrari Washer - 12601579 | Superseded | Order 12601574 instead | |
| 107422 | Ferrari Washer 3.25mm - 107422 | Superseded | Order 107342 instead |
